Norgren Super X Series Valves - Manual (Page 10)

Super X Series Valves
All Dimensions in Inches (mm)
VAL-7-10 Littleton, CO USA Phone: 303-794-2611 www.norgren.com
03 0410 22

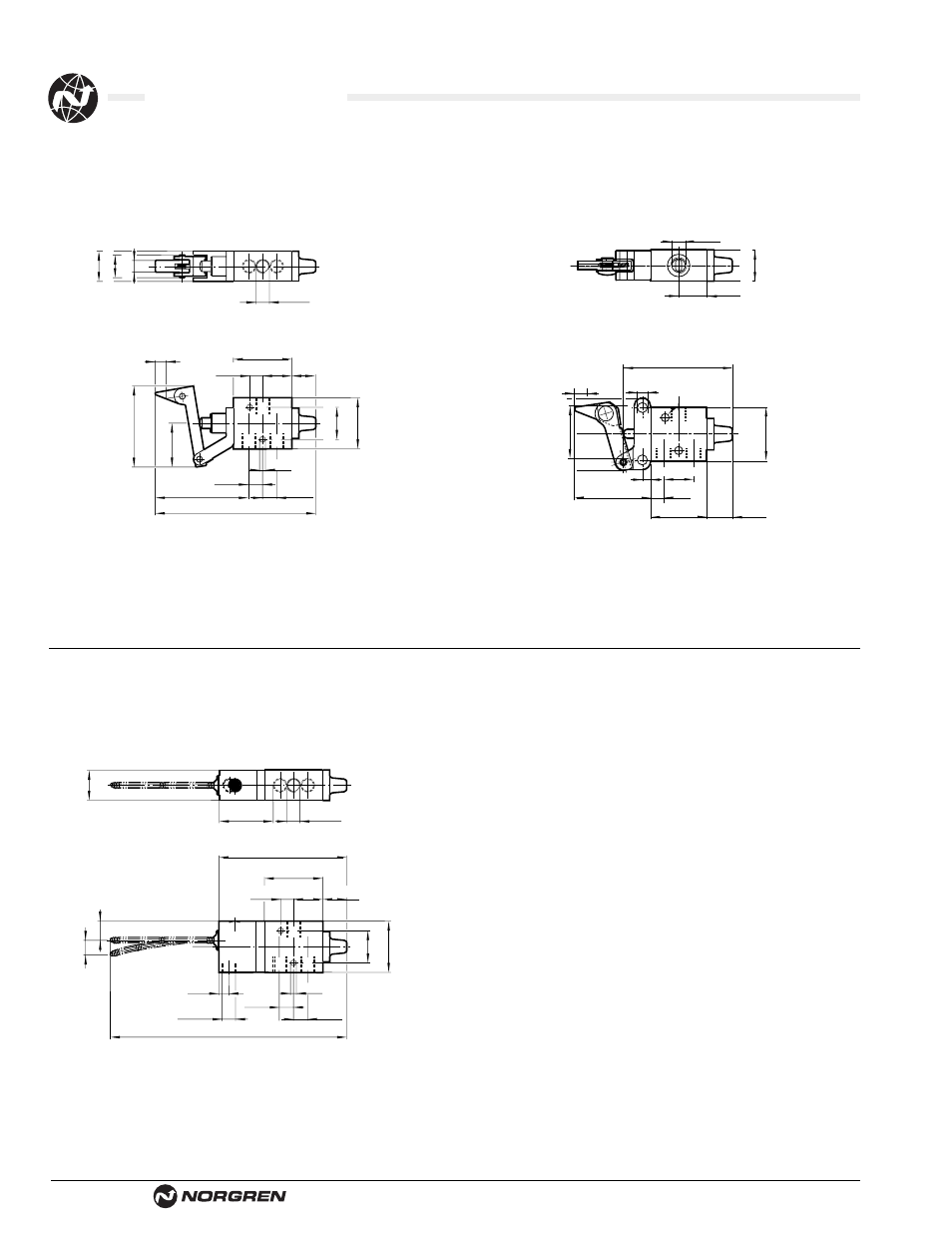

1/8" NPT 3/2 One-way Trip Actuated Spring Return
Valve
‘12’
‘2’
‘3’ ‘1’
1.50 (38)
.21 (5)
‘10’
.67 (17)
1.42 (36)
2.48 (63)
.83 (21) .31 (8)
.35 (9)
1.18 (30)
2.20 (56)
4.29 (109)
1/8 NPT
.35 (9) .75 (19)
.39 (10)
.39 (10)
.87 (22)
.63 (16)
Operating Force: 7 lbs (31N)
Cam Rise: .35" (9 mm)
Cam Angle of Approach: 90° maximum
Cam Speed: 6.6' (2 m)/min. maximum
Operating Speed: 120 cpm
03 0294 22
1/8" NPT 3/2 Heavy Duty One Way Trip Actuated
Spring Return Valve
'12' '2' '10'
'1' '3'
1.50 (38)
2.87 (73)
1.38 (35) 1.42 (36)
2.01 (51)
1/8 NPT
Ø.28 (7)
0.22 (6)
.38 (9)
.35 (9)
.67 (17)
.75 (19)
.83 (21)
.79 (20)
Operating Force: 7 lbs (31N)
Cam Rise: .35" (9 mm)
Cam Angle of Approach: 90° maximum
Cam Speed: 6.6' (2 m)/min. maximum
Operating Speed: 120 cpm
03 0432 22
1/8" NPT 3/2 Antenna Actuated Spring Return Valve
.75 (19)
.39 (10)
‘12’
‘2’
‘3’ ‘1’
1.50 (38)
.39 (10)
0.21 (5)
‘10’
.87 (22) 1.42 (36)
6.34 (161)
.83 (21)
.51 (13)
.39 (10)
.28 (7)
2.76 (70)
1.73 (44)
1/8 NPT
1/8 NPT
.35 (9) .67 (17)
Operating Force: .06 lbs (0.3N) at tip
Constant Pilot Supply: 30 lbs (2 bar) minimum
Operating Movement: .40" (10 mm) minimum in any direction.
