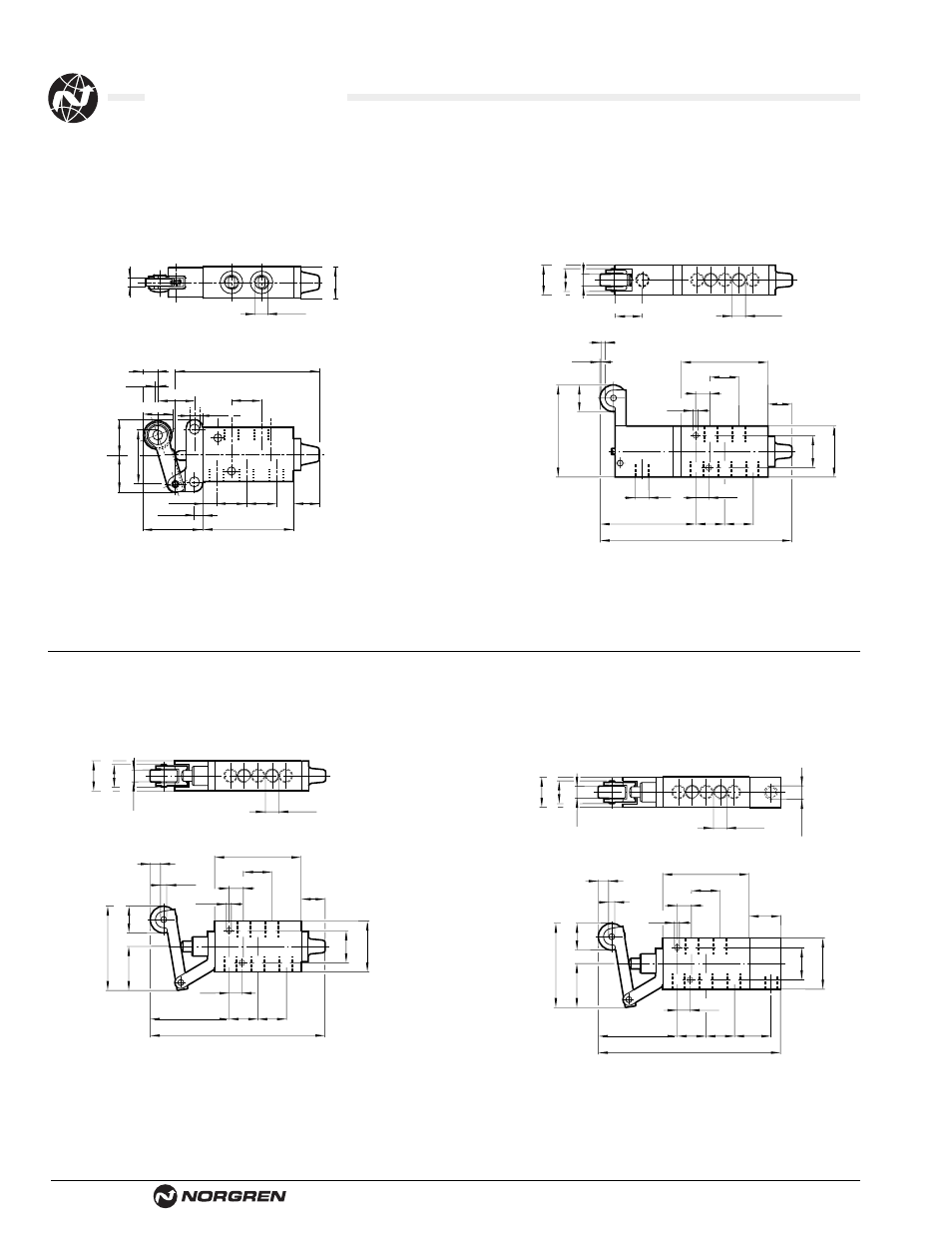

Super X Series Valves

All Dimensions in Inches (mm)

VAL-7-12

Littleton, CO USA

Phone: 303-794-2611

www.norgren.com

.79 (20)

.67

(17)

2.36 (60)

3.74 (95)

'5'

'1'

'3'

'4'

'2'

.79

(20)

.79

(20)

1/8 NPT

.94 (24)

.98 (25)

.31 (8)

'14'

'12'

1.57 (40)

.22 (6)

.47 (12)

1.38 (35)

Ш .26 (7)

.04 (1)

.85 (22)

Ш.75 (19)

.83 (21)

Operating Force: 7 lbs (31N); Operating Travel: 8 mm
Over-travel: .04 (1mm)
Cam Angle of Approach: 45° maximum
Cam Speed: 26' (8m)/min. maximum
Operating Speed: 300 cpm

.67 (17)

5.31 (135)

.79 (20)

.79

(20)

.79

(20)

.21 (5)

‘14’

‘4’

‘2’

‘12’

‘5’

‘1’

‘3’

2.38 (61)

.87 (22)

1.42 (36)

2.68 (68)

.83 (21)

.33 (9)

.12 (3)

.04 (1)

.75 (19)

2.56 (65)

1/8 NPT

G1/8 NPT

.39 (10)

.35 (9)

.63 (16)

.71 (18)

Operating Force: .23 lbs (1N)
Constant Pilot Supply: 44 psi (3 bar) minimum
Pre-travel: .04" (1 mm); Over-travel: .12" (3 mm)
Cam Angle of Approach: 45° maximum
Cam Speed: 21' (6.5m)/min. maximum

X3 0467 22
1/8" NPT 5/2 Roller Lever Actuated Pilot Return Valve

.87 (22)

5.02 (128)

.79 (20)

.79

(20)

.79

(20)

.21 (5)

‘14’

‘4’

‘2’

‘12’

‘5’

‘1’

‘3’

2.38 (61)

.87 (22)

1.42 (36)

1.18 (30)

.83 (21)

.33 (9)

.12 (3)

.31 (8)

2.32 (59)

2.17 (55)

.98 (25)

1/8 NPT

.75 (19)

.39 (10)

.35 (9)

.63 (16)

Operating Force: 2 lbs (9N), ‘12’ at zero bar
Reset Pressure: 30 psi (2 bar) minimum
Operating Travel: 26" (8 mm); Over-travel: .12" (3mm)
Cam Angle of Approach: 45° maximum
Cam Speed: 26' (8m)/min. maximum
Operating Speed: 300 cpm

X3 0463 22
1/8" NPT 5/2 Sensitive Roller Lever Actuated
Spring Return Valve

X3 0393 22
1/8" NPT 5/2 Heavy Duty Roller Lever Actuated
Spring Return Valve

X3 0451 22
1/8" NPT 5/2 Roller Lever Actuated Spring Return
Valve

.67 (17)

4.82 (123)

.79 (20)

.35 (9)

.79

(20)

.79

(20)

.21 (5)

‘14’

‘4’

‘2’

‘12’

‘5’

‘1’

‘3’

2.38 (61)

.87 (22)

1.42 (36)

1.18 (30)

.83 (21)

.12 (3)

.31 (8)

2.32 (59)

2.17 (55)

1/8 NPT

.39 (10)

.33 (9)

.63 (16)

.75 (19)

Operating Force: 7 lbs (31N); Operating Travel: 8 mm
Over-travel: .12 (3mm)
Cam Angle of Approach: 45° maximum
Cam Speed: 26' (8 m)/min. maximum
Operating Speed: 300 cpm
