properly if you enter improper information for
this category. If your hard disk drive type is
not matched or listed, you can use [Manual] to
define your own drive type manually.
[LBA/Large Mode]
Enabling LBA causes Logical Block Ad-
dressing to be used in place of Cylinders,
Heads and Sectors
[Block(Multi-Sector Transfer)] Any selection except Disabled determines
the number of sectors transferred per block
[PIO Mode]
Indicates the type of PIO (Programmed Input/
Output)
[DMA Mode]
Indicates the type of Ultra DMA
[S.M.A.R.T.]
This allows you to activate the S.M.A.R.T.
(Self-Monitoring Analysis & Reporting
Technology) capability for the hard disks. S.
M.A.R.T is a utility that monitors your disk sta
tus to predict hard disk failure. This gives you
an opportunity to move data from a hard disk
that is going to fail to a safe place before the
hard disk becomes offline.
[32 Bit Data Transfer]
Enables 32-bit communication between
CPU and IDE card
JMicron 36x ATA Controller
This setting enables/disables the onboard JMicron ATA controller.

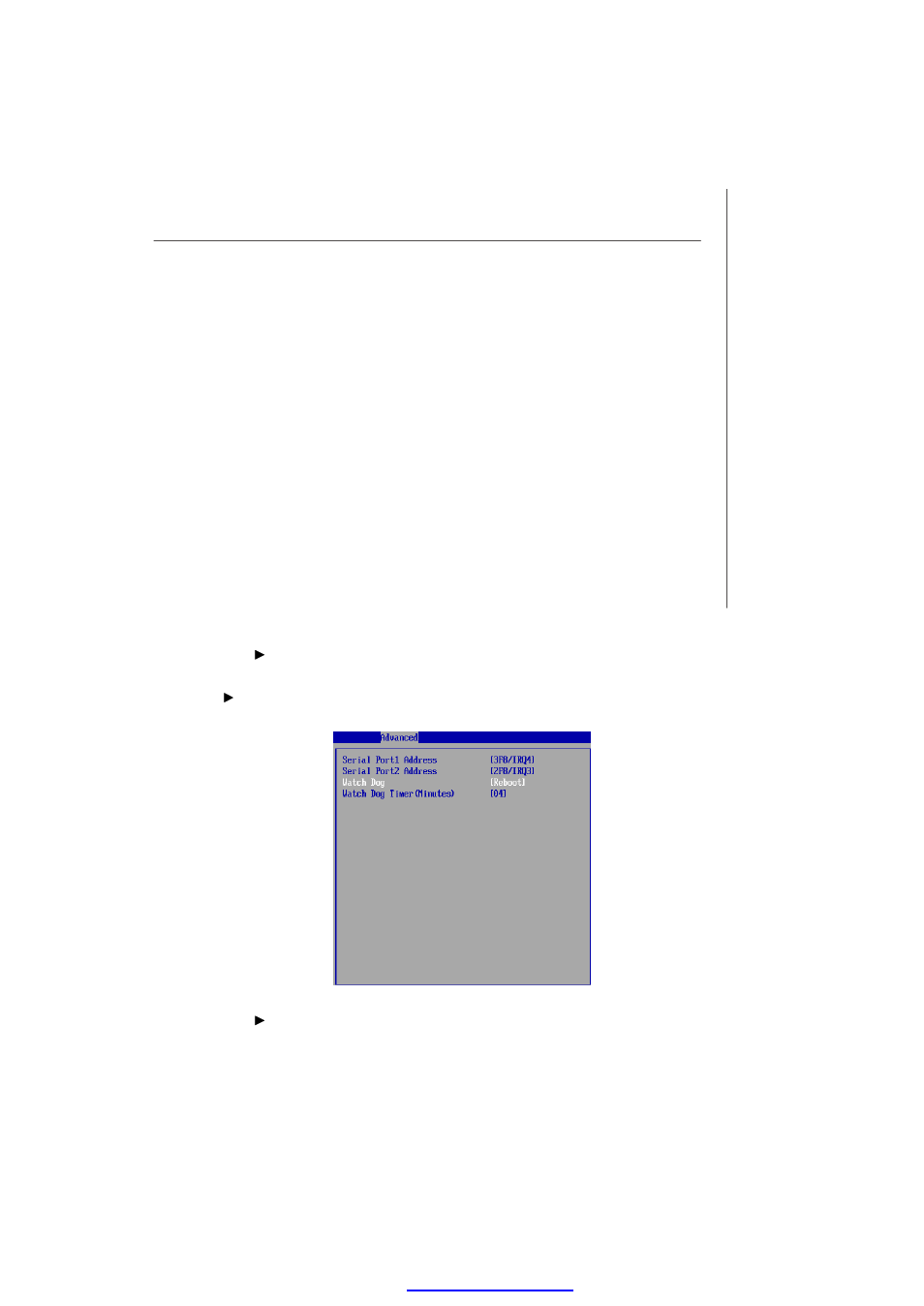

Super IO Configuration
Serial Port 1 Address, Serial Port 2 Address
Select an address and a corresponding interrupt for the serial port 1/2.
