2-22
M S-92A2 Server

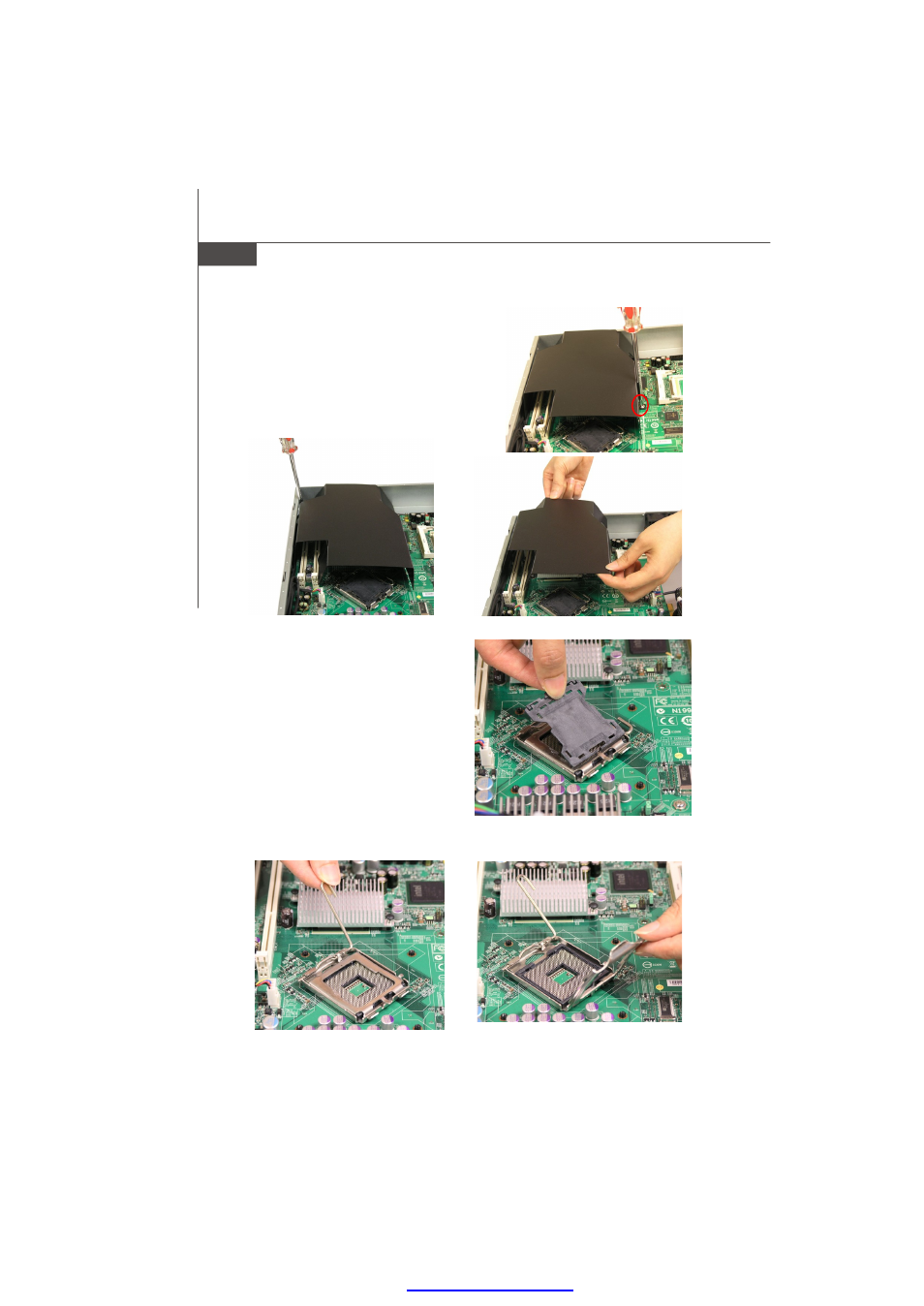

CPU, Heatsink, and Fan Duct
2. Locate the CPU socket. The CPU socket
has a plastic cap on it to protect the
contact from damage. Before install-
ing the CPU, always cover it to pro-
tect the socket pins.
3. Remove the plastic cap from the load
plate. The pins of the socket reveal.
4. Raise the load lever up to its full extent. 5. Open the load plate.
1. On top of the CPU is a fan duct designed
to enhance heat dissipation of the CPU.
Unscrew and remove the fan duct be-
fore installing the CPU.
