M S-92A2 Server
Rack Mounting

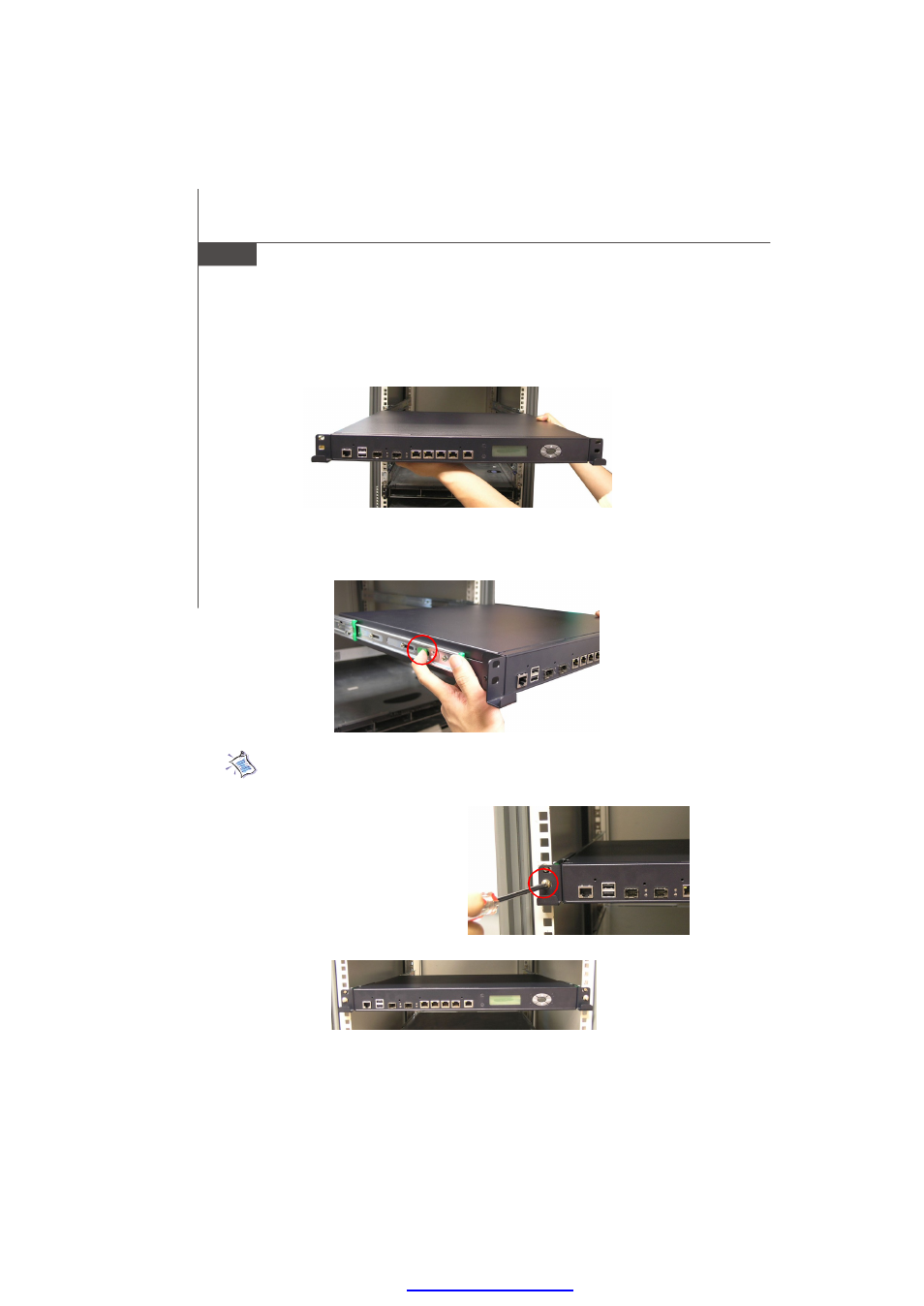

1. To slide the system into the rack, first align the chassis rails with the rack rails
and push the system inwards until the locking tab clicks.
Note: The chassis rail is designed with a locking tab which can (1) hold the
system firmly to the rack, and (2) lock the system halfway without sliding out
of the rack rails.
2. Simultaneously push open the locking tabs on both sides of the chassis rails and
push the system inwards. The system should slide easily into the rack.
3. Screw the system firmly to the rack.
