M S-92A2 Server
1-4

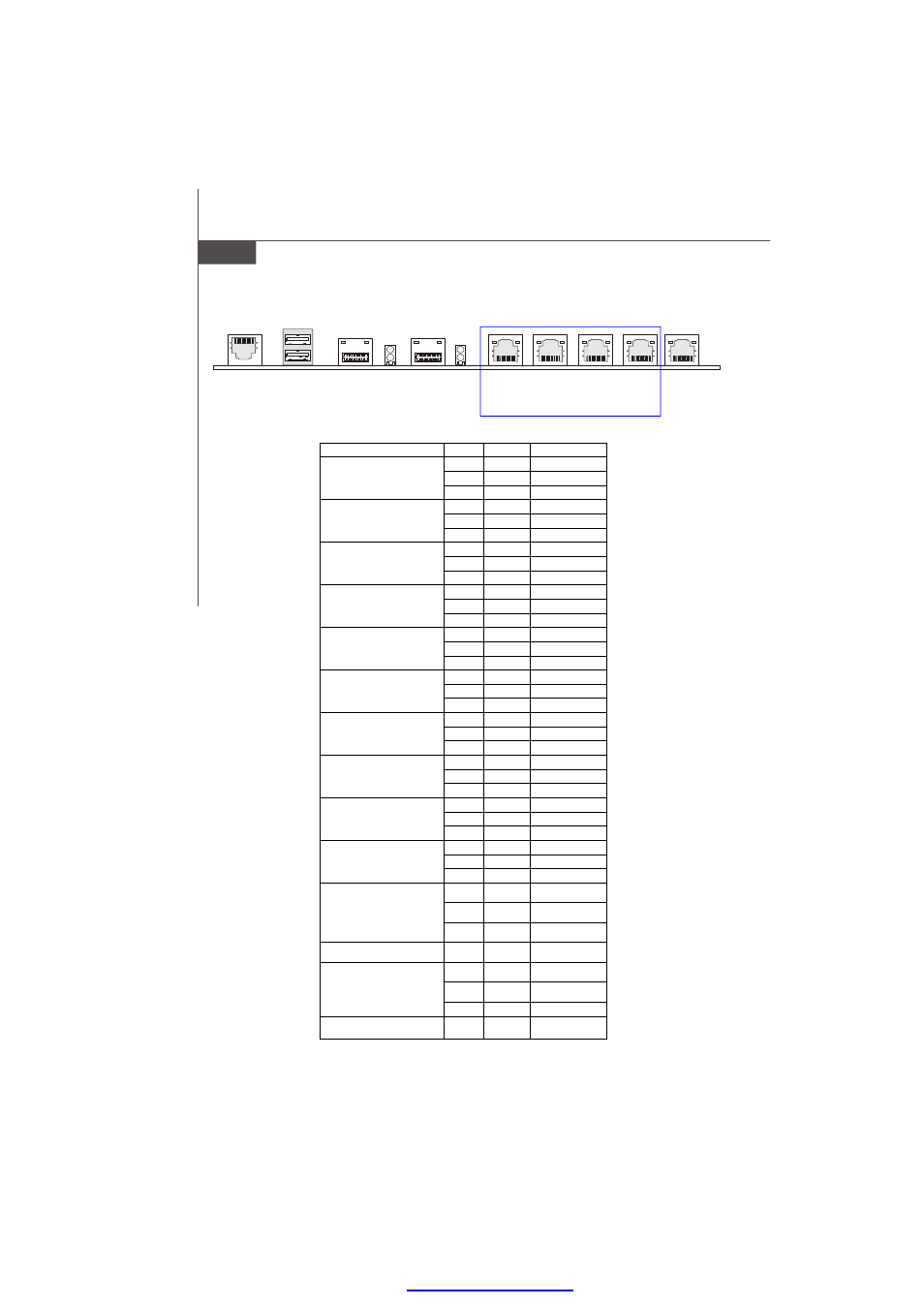

LED
Color
State
Description
Yellow On
LAN linked
Yellow Blinking LAN accessing
RJ45 NIC 1 Linkage
Off
Off
No LAN linked
Amber On
Gigabit mode
Green
On
100M mode
RJ45 NIC 1 Mode
Off
Off
10M mode
Yellow On
LAN linked
Yellow Blinking LAN accessing
RJ45 NIC 2 Linkage
Off
Off
No LAN linked
Amber On
Gigabit mode
Green
On
100M mode
RJ45 NIC 2 Mode
Off
Off
10M mode
Yellow On
LAN linked
Yellow Blinking LAN accessing
RJ45 NIC 3 Linkage
Off
Off
No LAN linked
Amber On
Gigabit mode
Green
On
100M mode
RJ45 NIC 3 Mode
Off
Off
10M mode
Yellow On
LAN linked
Yellow Blinking LAN accessing
RJ45 NIC 4 Linkage
Off
Off
No LAN linked
Amber On
Gigabit mode
Green
On
100M mode
RJ45 NIC 4 Mode
Off
Off
10M mode
Yellow On
LAN linked
Yellow Blinking LAN accessing
RJ45 NIC 5 Linkage
Off
Off
No LAN linked
Amber On
Gigabit mode
Green
On
100M mode
RJ45 NIC 5 Mode
Off
Off
10M mode
Green
On
LAN linked
Green
Blinking LAN accessing
Fiber SFP NIC 6 Linkage
Off
Off
No LAN linked
Fiber SFP NIC 6 Mode
Yellow On
Gigabit mode
Green
On
LAN linked
Green
Blinking LAN accessing
Fiber SFP NIC 7 Linkage
Off
Off
No LAN linked
Fiber SFP NIC 7 Mode
Yellow On
Gigabit mode
LAN7 GbE
Fiber SFP
LAN
COM1 S erial
Console Port
USB Ports
LAN5 LAN4
GbE RJ-45 LAN
(Bypass Pair 2)
LED2
LED1
LAN3 LAN2
GbE RJ-45 LAN
(Bypass Pair 1)
LAN1 GbE
RJ-45 LAN
LAN6 GbE
Fiber SFP
LAN
