MSI P1-109N-L70 User Manual
Page 49
2-29
Hardware Setup
Rack Rails
1.

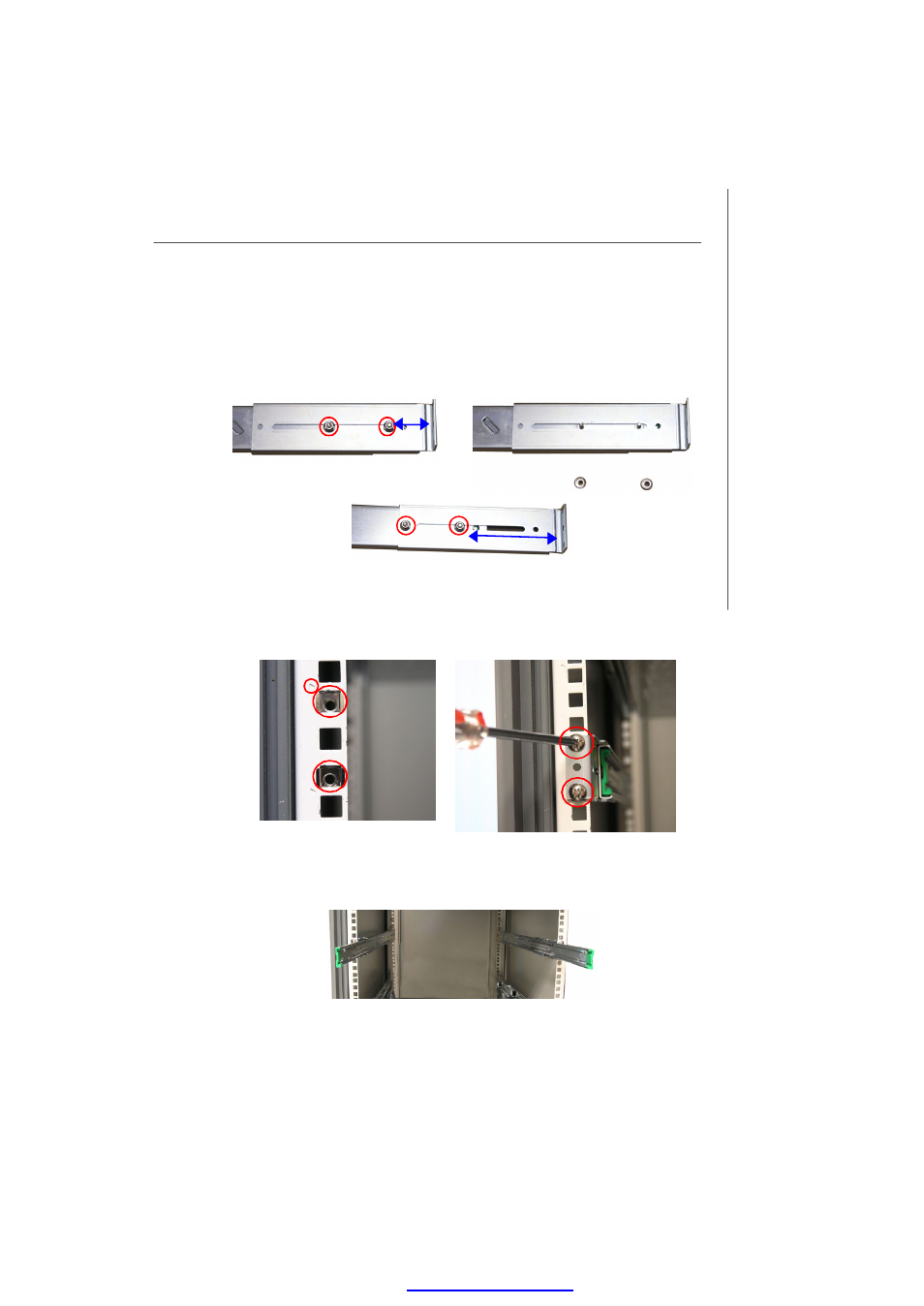

Release the L-shaped bracket from the rack rail. Adjust the length of the rack rail
to make sure the rail length fits the rack. Screw the L-shaped bracket back to the
rail.
2.
Locate the triangle mark on the rack and install 2 screw holders to the rack as
s h ow n.
3.
Secure the rack rail to the rack with two screws on the front and two on the rear.
4.
Follow the same procedures to install the second rack rail.
