MSI P1-109N-L70 User Manual
Page 45
2-25
Hardware Setup
4.
The system power supply provides various types of power cables. Pick out the
SATA power cable and connect it to the SATA HDD.

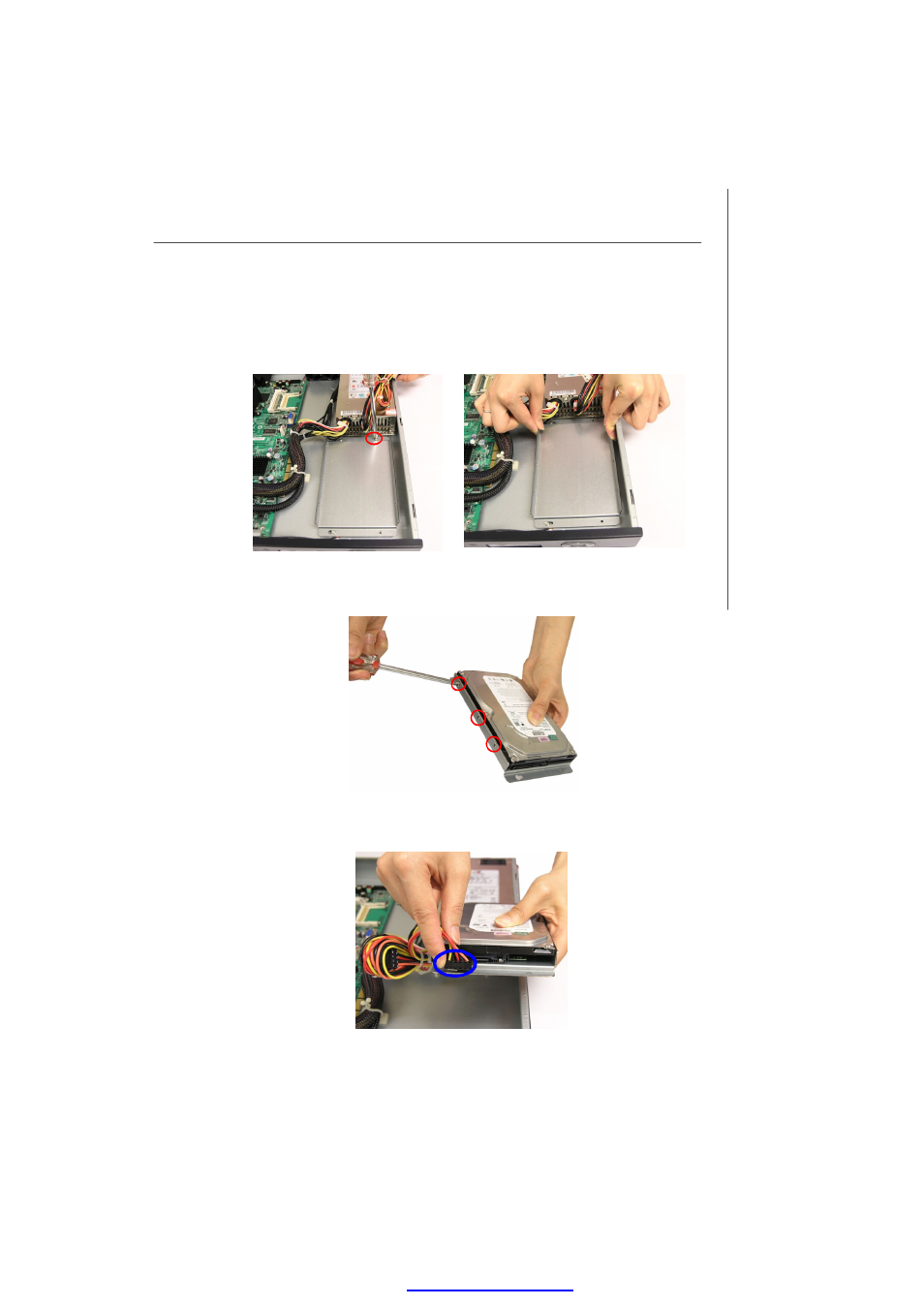

1.
Unscrew the HDD tray.
Hard Disk Drive
3.
Fit the HDD into the tray and align the screw holes on the sides. Screw the HDD
firmly to the tray.
2.
Remove the HDD tray from the chassis.
PDF created with pdfFactory Pro trial versi
