5

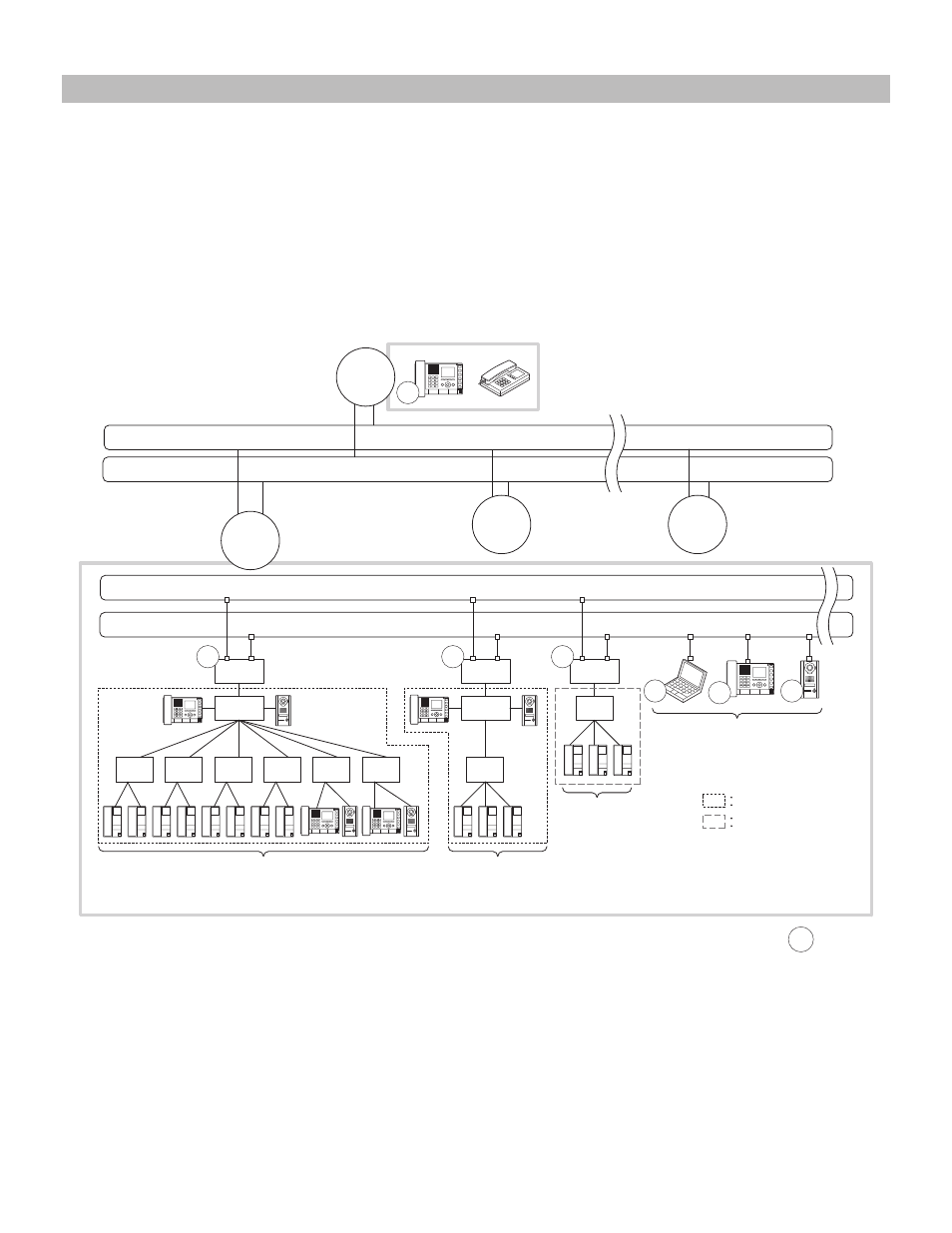

System confi guration examples
■ Standard (IP) system
The following is an example of standard (IP) system for controlling security and communication for facilities.
A site must be confi gured with an IP-based system. •
A standard (IP) system can consist of local systems and IP units. •
A local system (Hard wired network system) without connecting to an IP network can also be an independent system. •
When using a local system as an independent system, it needs at least one central control unit (IS-CCU). To connect a local system •
to a standard (IP) system, one IP control unit (IS-IPC) is needed.
An IP unit (PC master station, IP door station or IP master station) can be connected directly to a LAN.
•
In a site, up to 32 IP units (including up to 8 IP control units) can be connected. •
IP
IP IP
IP IP IP
IP
IP IP unit
Standard (IP) system
Local system
This is also a local
system, however no
communication can be
made on this system
without connecting
with an IP network.
: Control offi ce, etc.
Building 1 Building 2
Building 3
Building 4
PSTN / private line (North America only)
Internet / WAN
PBX telephone
LAN (IP network)
Site 1
Site 2
Site 3
IS-IPC IS-IPC IS-IPC
IS-CCU IS-CCU
IS-RCU IS-RCU
IS-RCU
IS-RCU
Site 32
Telephone
IS-RCU IS-RCU IS-SCU IS-SCU
