10
Central control unit (IS-CCU)

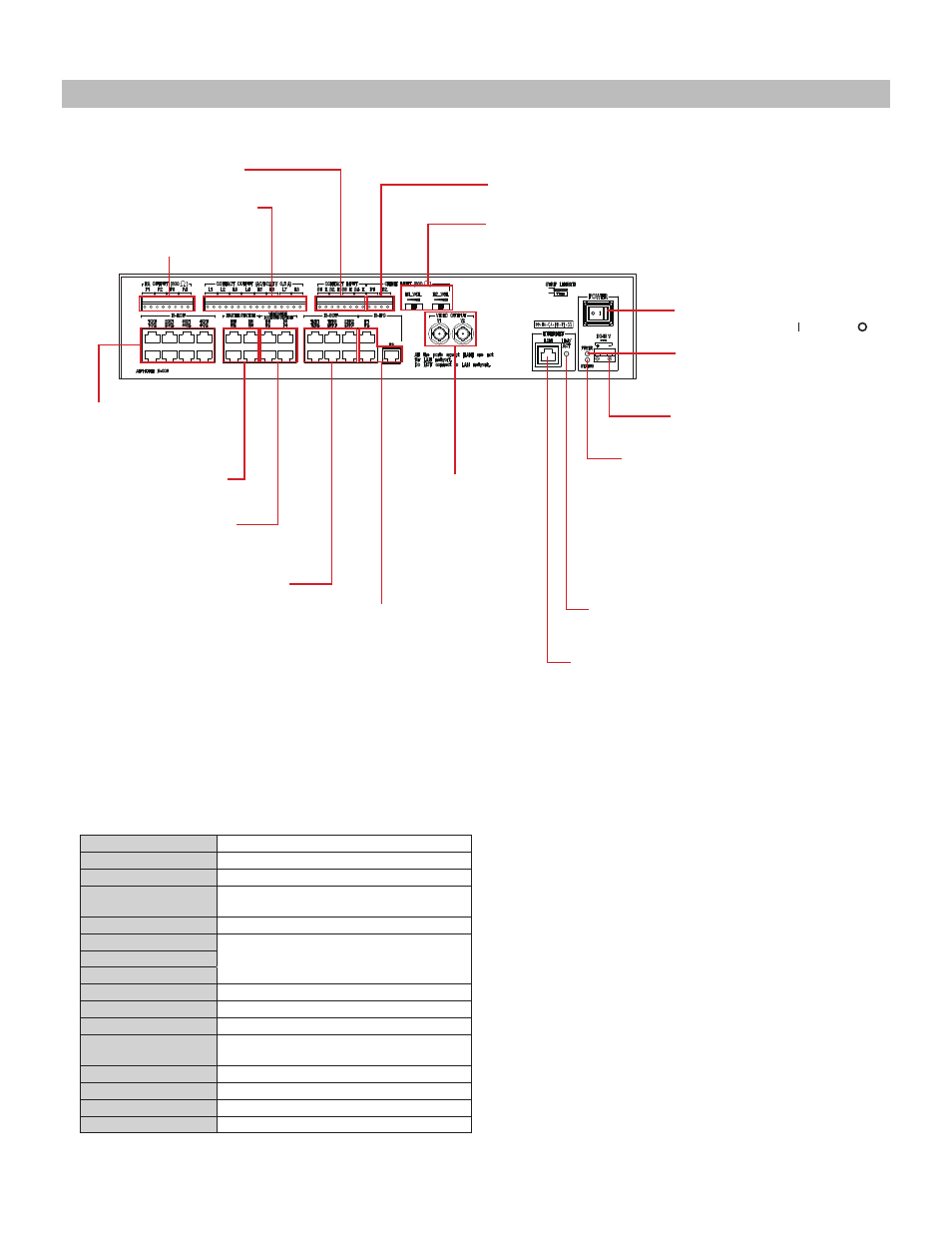

■ Part names
NOTE:
The illustration of the unit may differ from the actual one.
■ Specifi cations
Central control unit (IS-CCU)
Power source 48V DC (supplied from the power supply unit)
Current consumption Max. 800mA
Ambient temperature 0 - 40°C (+32°F - +104°F)
Talk channels Video
channels Local system: 2 talk & 2 video channels,
1 chime
Master station(s) Max. 4
Video door station(s)
Max. 4 Audio door station(s)
Room sub station(s)
Add-on control unit
Max. 2
Room sub control unit Max. 4
IP control unit Max. 1
Video output
NTSC
BNC (Video channel 1,2)
LAN Ethernet (10 BASE-T, 100 BASE-TX)
Mounting Rack-mount (19-inch, 2U rack) or wall-mount
Material Steel plate
Color Black
POWER switch
Turns the power ON ( ) or OFF ( ).
POWER terminals
CHIME INPUT terminals
VIDEO OUTPUT port 1
and port 2
IP control unit (IS-IPC) ports
CONTACT INPUT terminals
CONTACT OUTPUT terminals
PA (Paging) OUTPUT terminals
Room sub control unit
(IS-RCU) ports
MASTER STATION ports
VIDEO/AUDIO DOOR/SUB
STATION ports
Add-on control unit (IS-SCU) ports
Link/ACT LED (green)
Operates when this unit is connected to LAN.
LAN port
Connect a PC to this port for making the system settings.
(Refer to the SETTING MANUAL for details about the
settings.)
POWER LED (green)
Lights up when the power is ON.
STATUS LED (green)
Blinks when this unit is initialized or an error*
1
occurs.
The LED will light up when this unit returns to
the normal state.
*
1 : Communication error in a unit connected
to this unit, or between this unit and a unit
connected to it, etc.
External chime source volume 1 and 2
Adjust the volume of the input source (for chime) connected to the
CHIME INPUT B1 and B2 terminals respectively.
