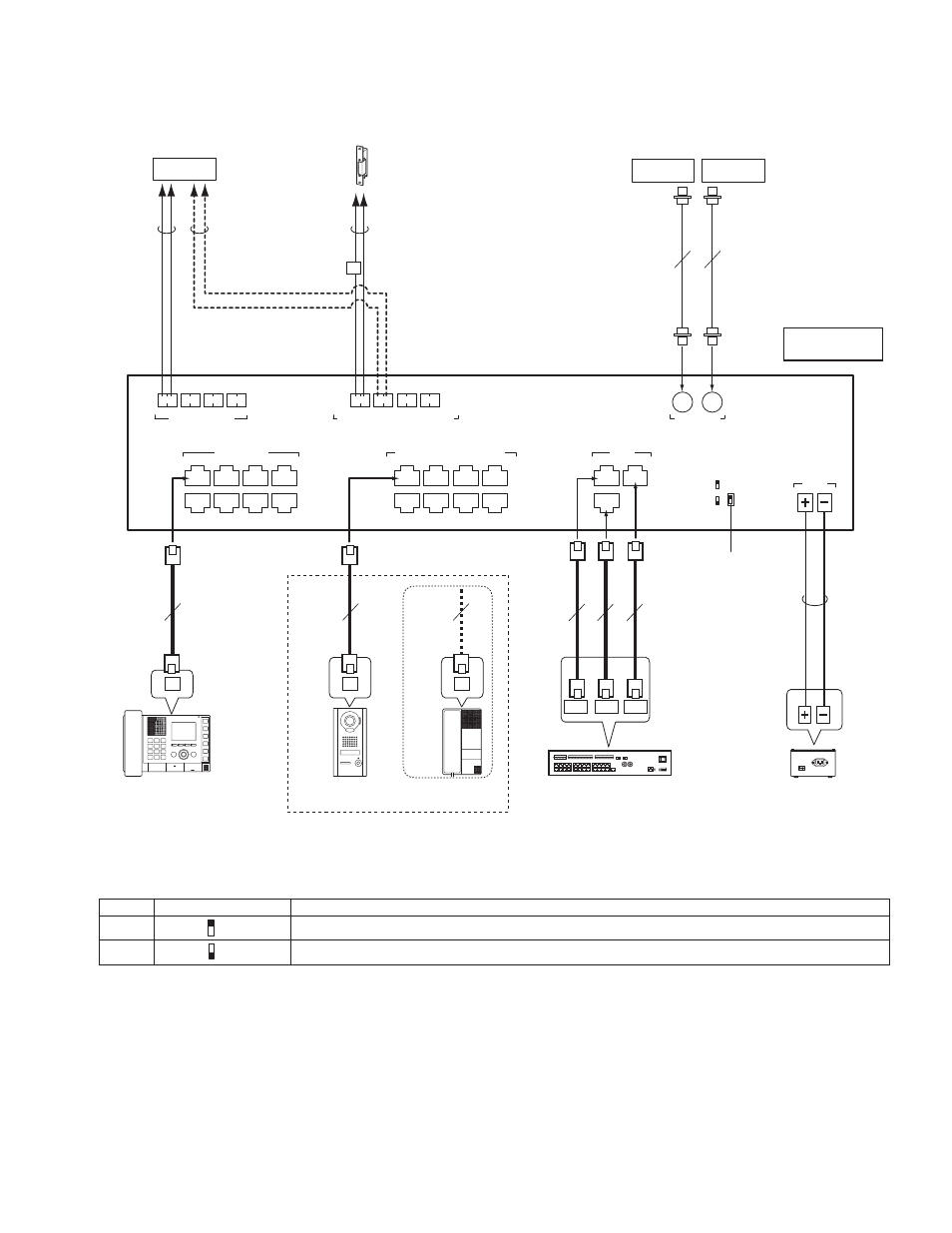

■ Connections

MX1

MX3

MX2

MASTER STATION

IS-CCU

DC48V

VIDEO/AUDIO DOOR/SUB STATION

PA OUTPUT (600Ω)

VIDEO OUTPUT

CONTACT OUTPUT (AC/DC24V 0.5A)

CAT5e/6

300m
(980')

CAT5e/6

300m
(980')

15m(50')

200m
(650')

CAT5e/6

150m
(490')

Coax

15m (50')

NTSC

15m (50')
NTSC

1MX1 1MX2 1MX3

Coax

φ0.8-1.2mm

(20-16 AWG)

CAT5e/6 (x3)

BNC
connector

BNC

connector

BNC

connector

BNC
connector

φ0.65-1.2mm

(22-16 AWG)

15m (50')

2C
φ0.65-1.2mm

(22-16 AWG)

2C
φ0.65-1.2mm

(22-16 AWG)

*1: This connection is needed when a PA amplifi er that needs a trigger input is connected. (Up to AC/DC 24V 0.5A)
*2: Do not install two power supplies in parallel to a single input. Be sure to connect a single power supply unit to a control unit.
*3: Setting the ID setting switch

ID No.

Switch position

Description

ID 1

ON
OFF

Set to this position when this unit is connected to 1MX1, 1MX2 and 1MX3 ports of IS-CCU.

ID 2

ON
OFF

Set to this position when this unit is connected to 2MX1, 2MX2 and 2MX3 ports of IS-CCU.

*4: Refer to “Output specifi cations” (→P.11).

NOTES:

Do not use the unoccupied terminals and ports for other purposes.

•

In order to prevent miswiring, label both ends of each cable with the unit and terminal names to which they are to be connected.

•

For connecting other manufacturer’s products, refer to the instruction manuals for those products.

•

The illustration of the unit’s front panel differs from the actual one. This is for simplifying the connection diagram.

•

Door station
(IS-DV/IS-DVF/
IS-SS)

Power supply unit
(IS-PU-UL/IS-PU-S)

Master station
(IS-MV)

Central control unit
(IS-CCU)

Room sub station
(IS-RS)

ID setting switch

Contact output

(Electric door strike, strobe light, etc.)

Monitor 1,
Recorder 1

Monitor 2,
Recorder 2

(non-shielded)

AC
transformer

PA output

(50mVrms, 600Ω)

PA amplifi er

NP: Non-polarized
P: Polarized
