Connections – Aiphone IS SERIES 834168 C P0811JZ User Manual
Page 25
25

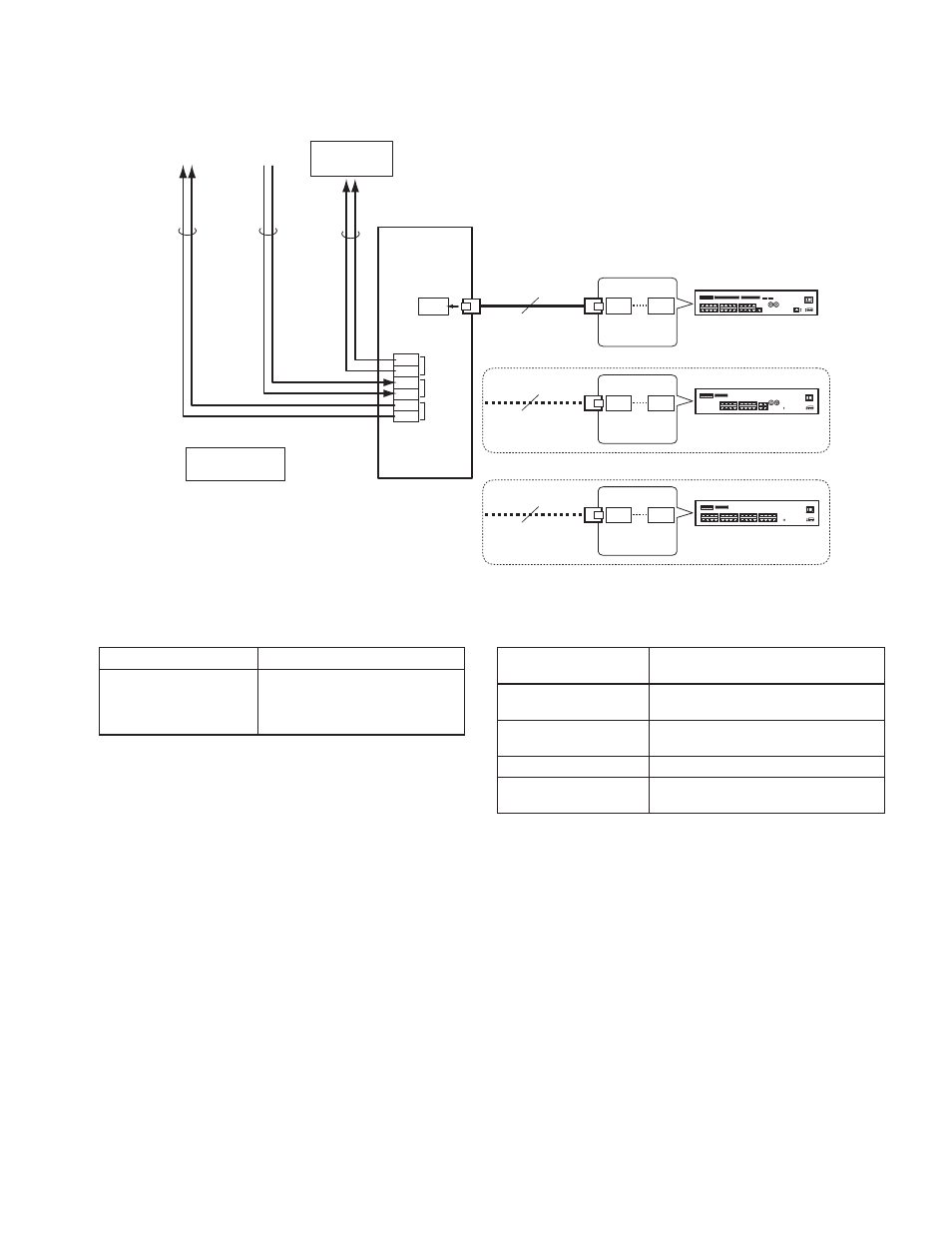

■ Connections
C
SP
SP
S
SE
NO
COM
PAGING
CONTACT
IN
CONTACT
OUT
150m (490')
D1
D4
CAT5e/6
150m (490')
D1
D8
CAT5e/6
150m (490')
C1
C30
CAT5e/6
2C
2C
P
NP
2C
φ0.65-1.2mm
(22-16 AWG)
15m (50')
φ0.65-1.2mm
(22-16 AWG)
15m (50')
φ0.65-1.2mm
(22-16 AWG)
15m (50')
*1: Output specifi cations
Output method
N/O dry closure contact
Voltage between
terminals
24V AC, 0.5A (resistive load)
24V DC, 0.5A (resistive load)
Minimum overload (AC/DC):
100mV, 0.1mA
*2: Input specifi cations
Input method
N/O or N/C dry closure contact (start
signal only detection method)
Detection confi rmation
time
100 ms or more
Contact resistance
During N/O dry closure: Less than 700 Ω
During N/C dry closure: At least 4 k Ω
Terminal short current
Less than 10 mA
Voltage between
terminals
Less than 5 V DC (when open between
terminals)
NOTES:
Do not use the unoccupied terminals and ports for other purposes.
•
In order to prevent miswiring, label both ends of each cable with the unit and terminal names to which they are to be connected.
•
For connecting other manufacture’s products, refer to the instruction manuals for those products.
•
The illustration of the unit’s rear panel differs from the actual one. This is for simplifying the connection diagram.
•
Central control unit
(IS-CCU)
External speaker
(more than 8Ω 3W)
Add-on control unit
(IS-SCU)
Room sub control unit
(IS-RCU)
or
or
Contact input
*2
(Sensor, etc.)
Contact output
*1
(Electric door strike,
strobe light, etc.)
(Select one port.)
(Select one port.)
(Select one port.)
(non-shielded)
(non-shielded)
(non-shielded)
NP: Non-polarized
P: Polarized
