Cirrus Logic CS5566 User Manual
Cs5566, Preliminary product information, Features & description
Preliminary Product Information
This document contains information for a new product.
Cirrus Logic reserves the right to modify this product without notice.
Copyright
Cirrus Logic, Inc. 2009
(All Rights Reserved)
5/4/09
CS5566
±
2.5 V / 5 V, 5 kSps, 24-bit
ΔΣ
ADC
Features
& Description
Differential Analog Input
On-chip Buffers for High Input Impedance
Conversion Time = 200
μS
Settles in One Conversion
Linearity Error = 0.0005%
Signal-to-Noise = 110 dB
24 Bits, No Missing Codes
Simple three/four-wire serial interface
Power Supply Configurations:
- Analog: +5V/GND; IO: +1.8V to +3.3V
- Analog: ±2.5V; IO: +1.8V to +3.3V
Power Consumption: 20 mW @ 5 kSps
General Description
The CS5566 is a single-channel, 24-bit analog-to-digital
converter capable of 5 kSps conversion rate. The input
accepts a fully differential analog input signal. On-chip
buffers provide high input impedance for both the AIN in-
puts and the VREF+ input. This significantly reduces the
drive requirements of signal sources and reduces errors
due to source impedances. The CS5566 is a delta-sigma
converter capable of switching multiple input channels at
a high rate with no loss in throughput. The ADC uses a
low-latency digital filter architecture. The filter is designed
for fast settling and settles to full accuracy in one conver-
sion. The converter's 24-bit data output is in serial form,
with the serial port acting as either a master or a slave. The
converter is designed to support bipolar, ground-refer-
enced signals when operated from ±2.5V analog supplies.
The converter can operate from an analog supply of 0-5V
or from ±2.5V. The digital interface supports standard log-
ic operating from 1.8, 2.5, or 3.3 V.

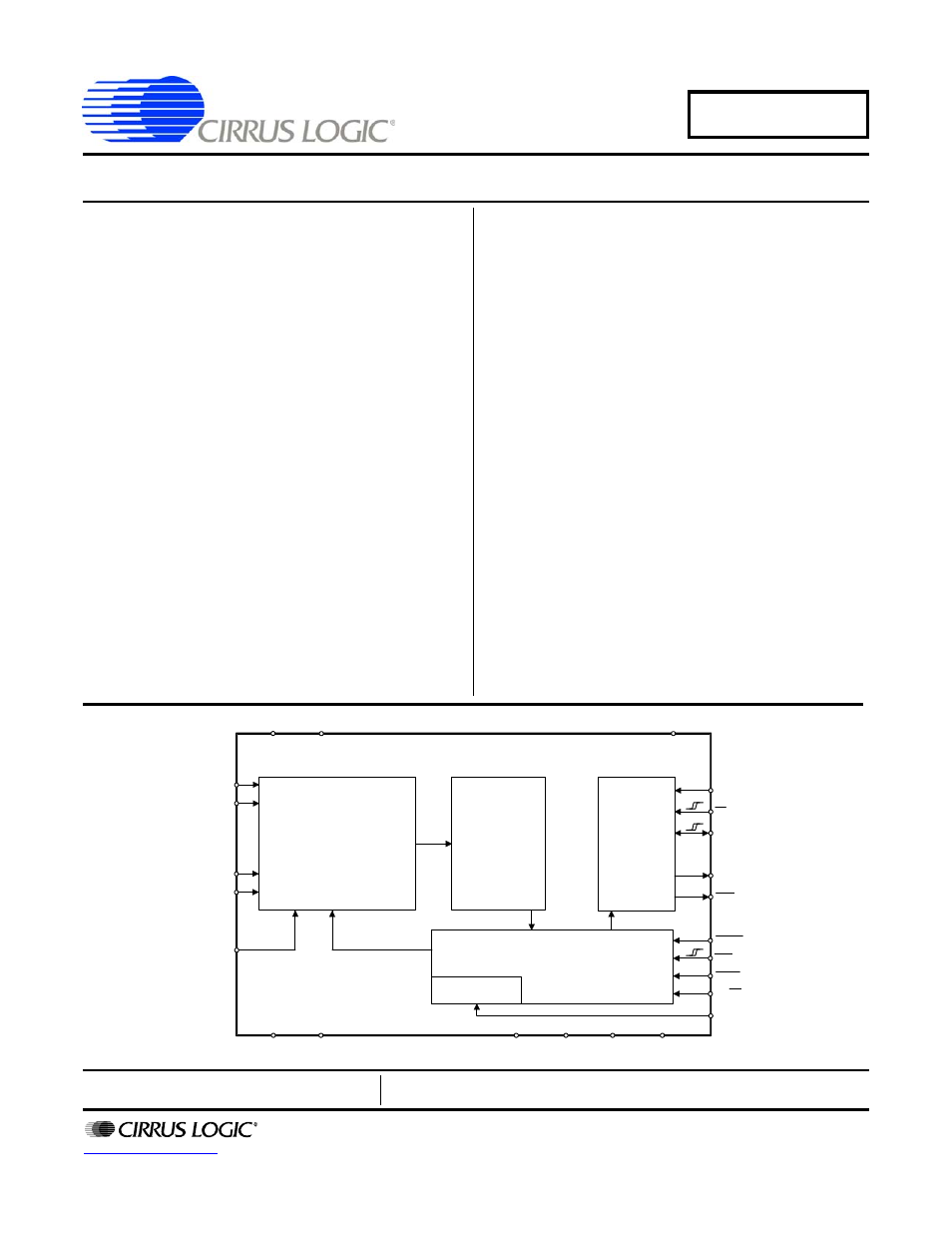

ORDERING INFORMATION:
See
AI N +
A I N -
CS
SCLK
SMODE
VREF+
VREF-
RDY
OSC/CLOCK
GENERATOR
CONV
BP/UP
DIGITAL CONTROL
SERIAL
INTERFACE
ADC
DIGITAL
FILTER
LOGIC
VL
MCLK
SDO
RST
SLEEP
TST
DCR
V1-
V2-
BUFEN
V2+
V1+
CS5566
VLR
VLR2
MAY ‘09
DS806PP2
Document Outline
- Features & Description
- General Description
- Table of Contents
- List of Figures
- List of Tables
- 1. Characteristics and Specifications
- Analog Characteristics
- Analog Characteristics (Continued)
- Switching Characteristics
- Switching Characteristics (Continued)
- Switching Characteristics (Continued)
- Switching Characteristics (Continued)
- Digital Characteristics
- Digital Filter Characteristics
- Guaranteed Logic Levels
- Recommended Operating Conditions
- Absolute Maximum Ratings
- 2. Overview
- 3. Theory of Operation
- 3.1 Converter Operation
- 3.2 Power Consumption
- 3.3 Clock
- 3.4 Voltage Reference
- 3.5 Analog Input
- 3.6 Output Coding Format
- 3.7 Typical Connection Diagrams
- 3.8 AIN & VREF Sampling Structures
- 3.9 Converter Performance
- 3.10 Digital Filter Characteristics
- 3.11 Serial Port
- 3.12 Power Supplies & Grounding
- 3.13 Using the CS5566 in Multiplexing Applications
- 3.14 Synchronizing Multiple Converters
- 4. Pin Descriptions
- 5. Package Dimensions
- 6. Ordering Information
- 7. Environmental, Manufacturing, & Handling Information
- 8. Revision History
