CDB5460AU

26

DS487DBU1

2.10

Debug Panel

The Debug panel provides the user a way to access CS5460A registers and send commands to CS5460A
directly. See Figure 18. Refer to section 4.1 in the CS5460A data sheet for more detailed information
about the commands and registers.

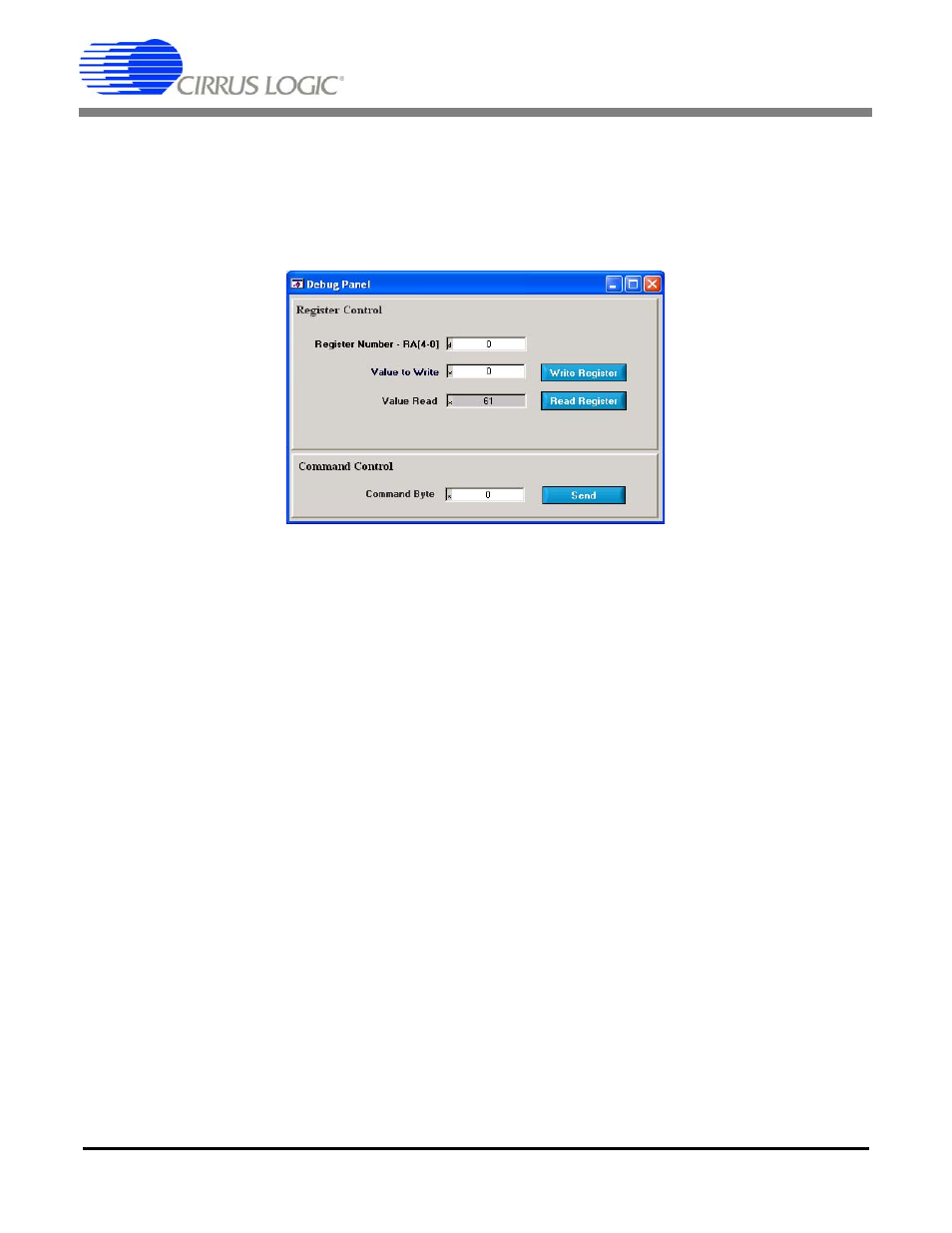

Figure 18. Debug Panel
