CDB5460AU
12 DS487DBU1
2.4 Setup Window
The evaluation software provides access to the CS5460A's internal registers through the Setup window.
See Figure 8. The user can enter the Setup window by pulling down the Menu menu and selecting Setup
Window, or by pressing on the keyboard.
In the Setup window, all of the CS5460A's registers are displayed in hexadecimal notation and are decod-
ed to provide easier readability. Refer to the CS5460A data sheet for information on register functionality
and definitions. See Figure 8.

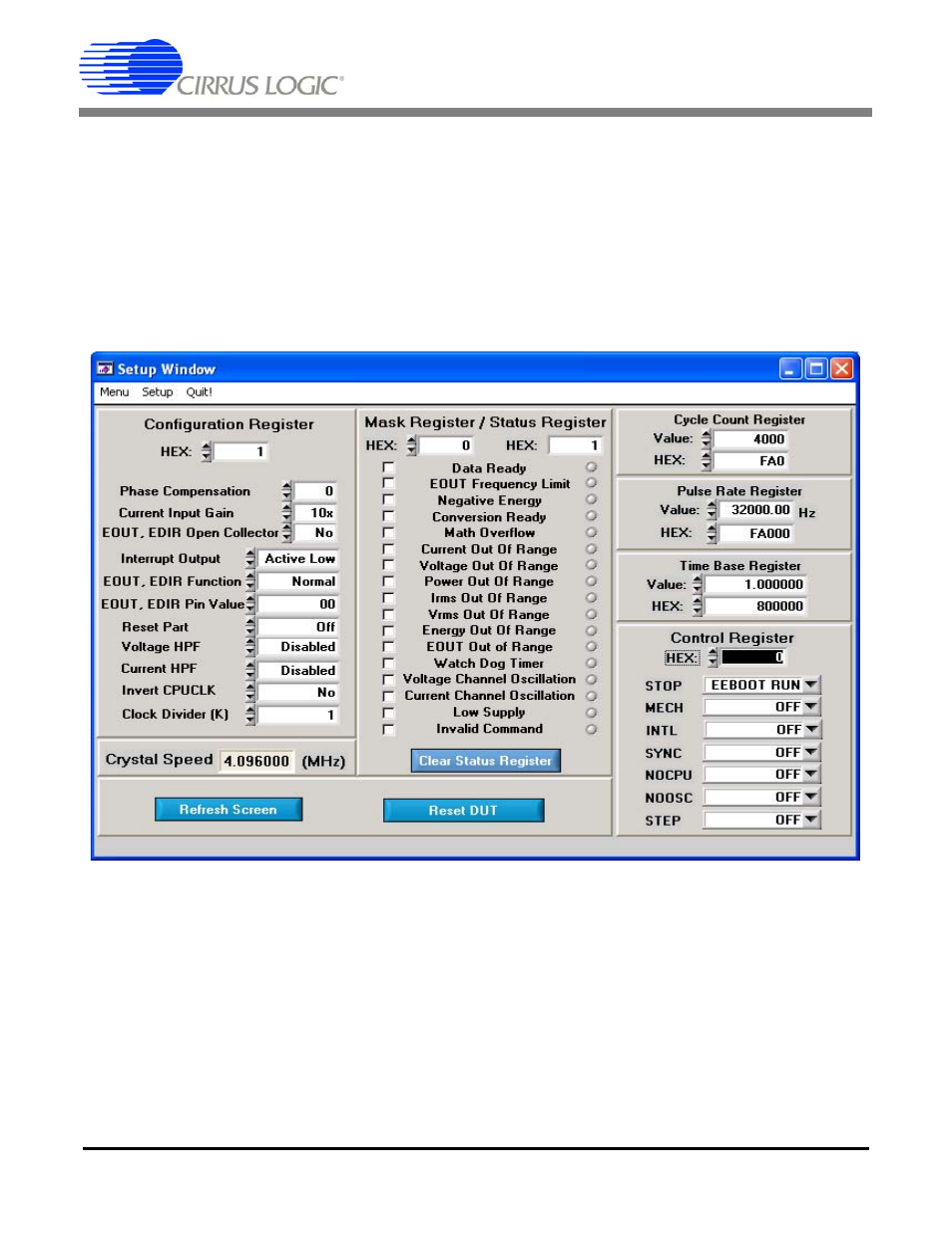

Figure 8. Setup Window
2.4.1 Refresh Screen Button
The Refresh Screen button will update the contents of the screen by reading all the register values from
the CS5460A. It is a good idea to press the Refresh Screen button when entering the Setup window, or
after modifying any registers, to reflect the current status of the CS5460A.
2.4.2 Reset DUT Button
The Reset DUT button will hardware reset the CS5460A. The CS5460A will perform a reset as discussed
in the CS5460A data sheet. After the hardware reset to the CS5460A device, the screen contents will be
automatically refreshed with the updated status of the CS5460A.
