CDB5460AU
DS487DBU1 21
2.8.10 Analyzing Data
The evaluation software provides three types of analysis tests: Time Domain, Frequency Domain, and
Histogram. The time domain analysis processes acquired conversions to produce a plot of magnitude ver-
sus conversion sample number. The frequency domain analysis processes acquired conversions to pro-
duce a plot of magnitude versus frequency using the Fast-Fourier transform (results up to Fs/2 are
calculated and plotted). The histogram analysis processes acquired conversions to produce a histogram
plot. Statistical noise calculations are also calculated and displayed.
2.8.11 Histogram Information
The following is a description of the indicators associated with histogram analysis. Histograms can be plot-
ted in the Data Collection window by setting the analysis type pull-down menu to Histogram.

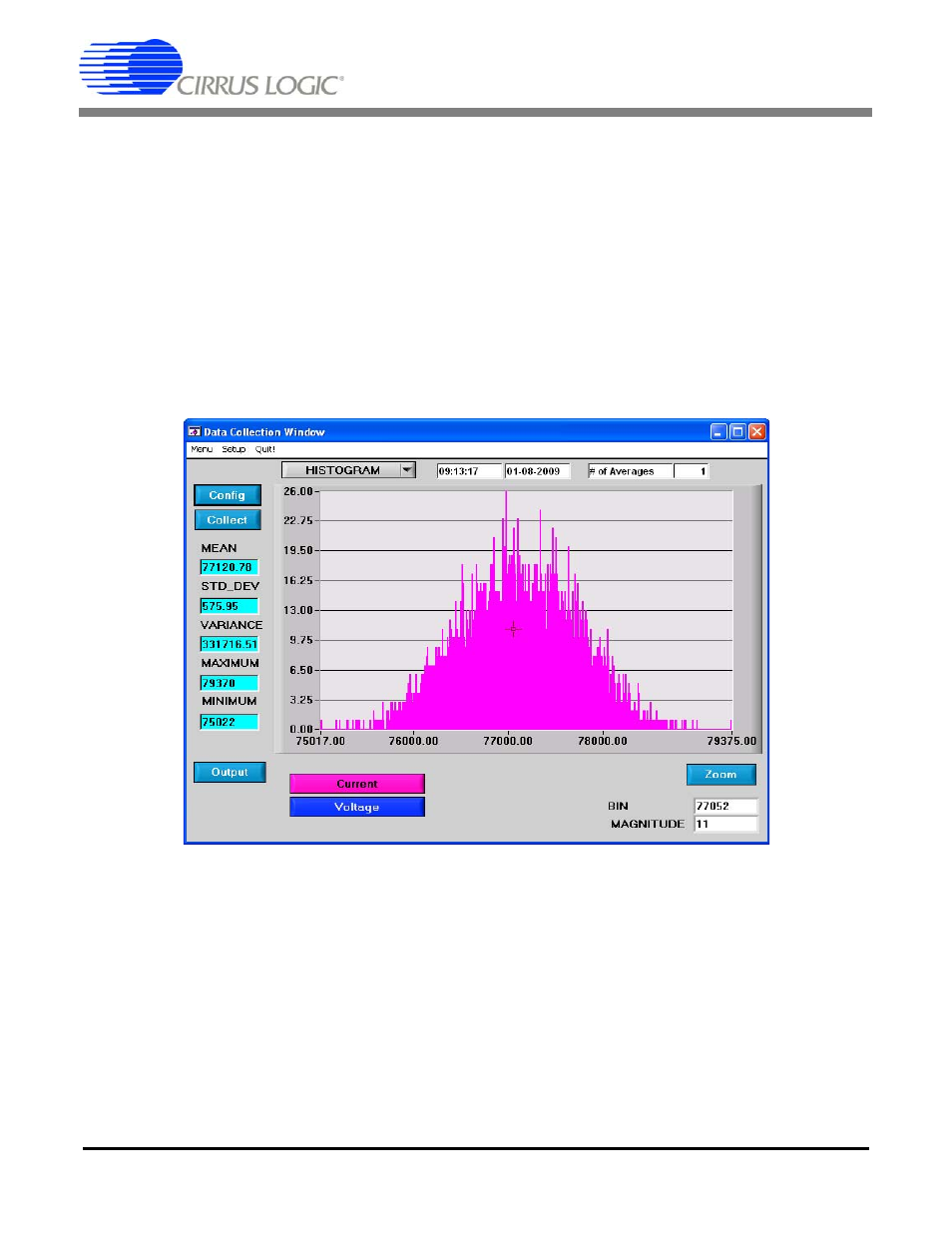

Figure 14. Histogram Analysis
2.8.11.1 BIN
Displays the x-axis value of the cursor on the histogram.
2.8.11.2 MAGNITUDE
Displays the y-axis value of the cursor on the histogram.
