2.8.12.6 SNR
Indicates for the signal-to-noise ratio, first 4 harmonics are not included (decibels).
2.8.12.7 FS-Pdb
Indicates for the full-scale to signal Ratio (decibels).
2.8.12.8 Time Domain Information
The following controls and indicators are associated with time domain analysis. Time domain data can be
plotted in the Data Collection window by setting the analysis type selector to Time Domain.

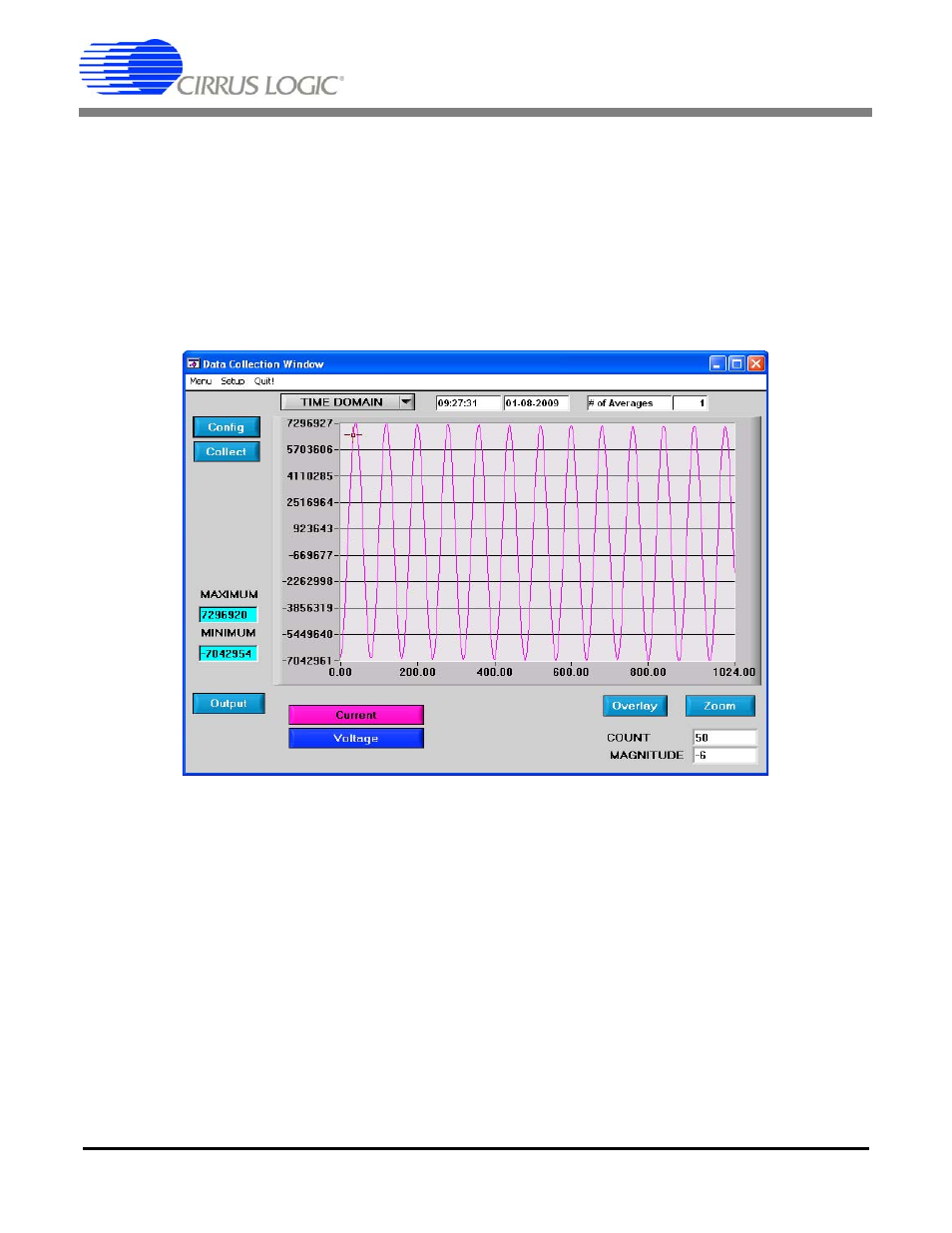

Figure 16. Time Domain Analysis
2.8.12.9 COUNT
Displays current x-position of the cursor on the time domain display.
2.8.12.10 MAGNITUDE
Displays current y-position of the cursor on the time domain display.
2.8.12.11 MAXIMUM
Indicates for the maximum value of the collected data set.
2.8.12.12 MINIMUM
Indicates for the minimum value of the collected data set.
