38 DS514F2
CS4382
LRCK
SCLK
Left Channel
Right Channel
SDINx 6 5 4 3 2 1 0 9 8 7 15 14 13 12 11 10 1 0 6 5 4 3 2 1 0 9 8 7 15 14 13 12 11 10 17 16 17 16
32 clocks
19 18 19 18

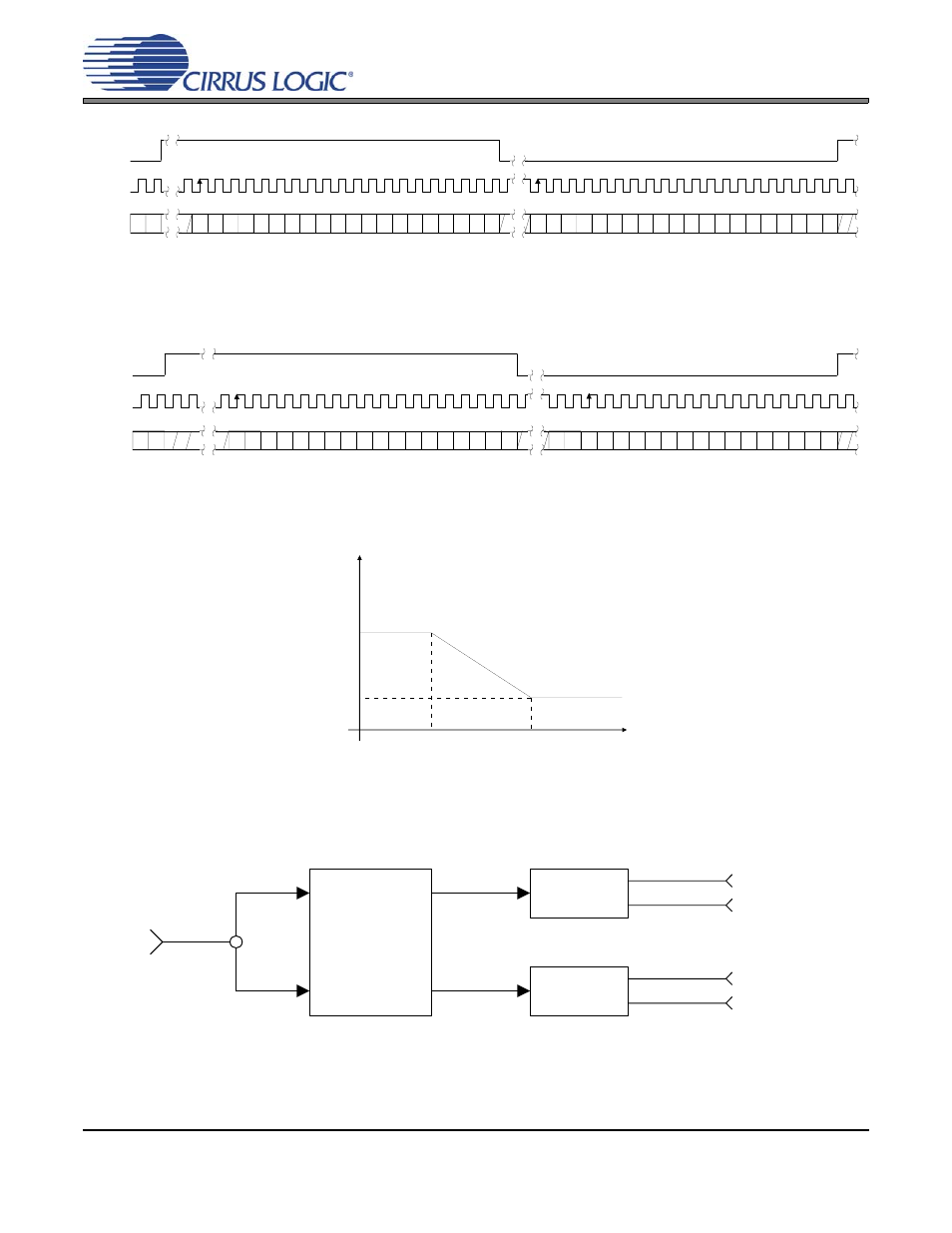

Figure 37. Format 4 - Right Justified 20-bit Data
LRCK
SCLK
Left Channel
Right Channel
SDINx 6 5 4 3 2 1 0 9 8 7 15 14 13 12 11 10 1 0 6 5 4 3 2 1 0 9 8 7 15 14 13 12 11 10 17 16 17 16
32 clocks
Figure 38. Format 5 - Right Justified 18-bit Data
Figure 39. De-Emphasis Curve
Gain
dB
-10dB
0dB
Frequency
T2 = 15 µs
T1=50 µs
F1 F2
3.183 kHz 10.61 kHz
SDINx
Channel
Pair x
Control
DAC
DAC
AOUTAx+
AOUTAx-
AOUTBx+
AOUTBx-
L
R
Figure 40. Channel Pair Routing Diagram (x = Channel Pair 1, 2, 3, or 4)
