2.2 CODEC Configuration Tab
The “CODEC Configuration” tab provides high-level control of all setup configurations for the CS42L51. Sta-
tus text detailing the CODEC’s specific configuration is shown in parenthesis or appears directly below the
associated control. This text will change depending on the setting of the associated control. A description
of each control group is outlined below (a description of each register is included in the CS42L51 data
sheet):
Power Control - Includes all register controls for powering down each device within the CODEC.
ADC input Configuration - Includes controls for the internal MUX, analog input and microphone bias output.
Serial Port Configuration - Includes controls for all settings related to the transmission and relationship of
data and clocks within the CODEC.
Analog Output Configuration - Includes control for the signal sources of the DAC. NOTE: Most controls in
the “DAC Volume Controls” tab are not accessible unless the SPE (Signal Processing Engine) signal is se-
lected.
Update - Reads all registers in the CS42L51 and reflects the current values in the GUI.
Reset - Resets the CS42L51.

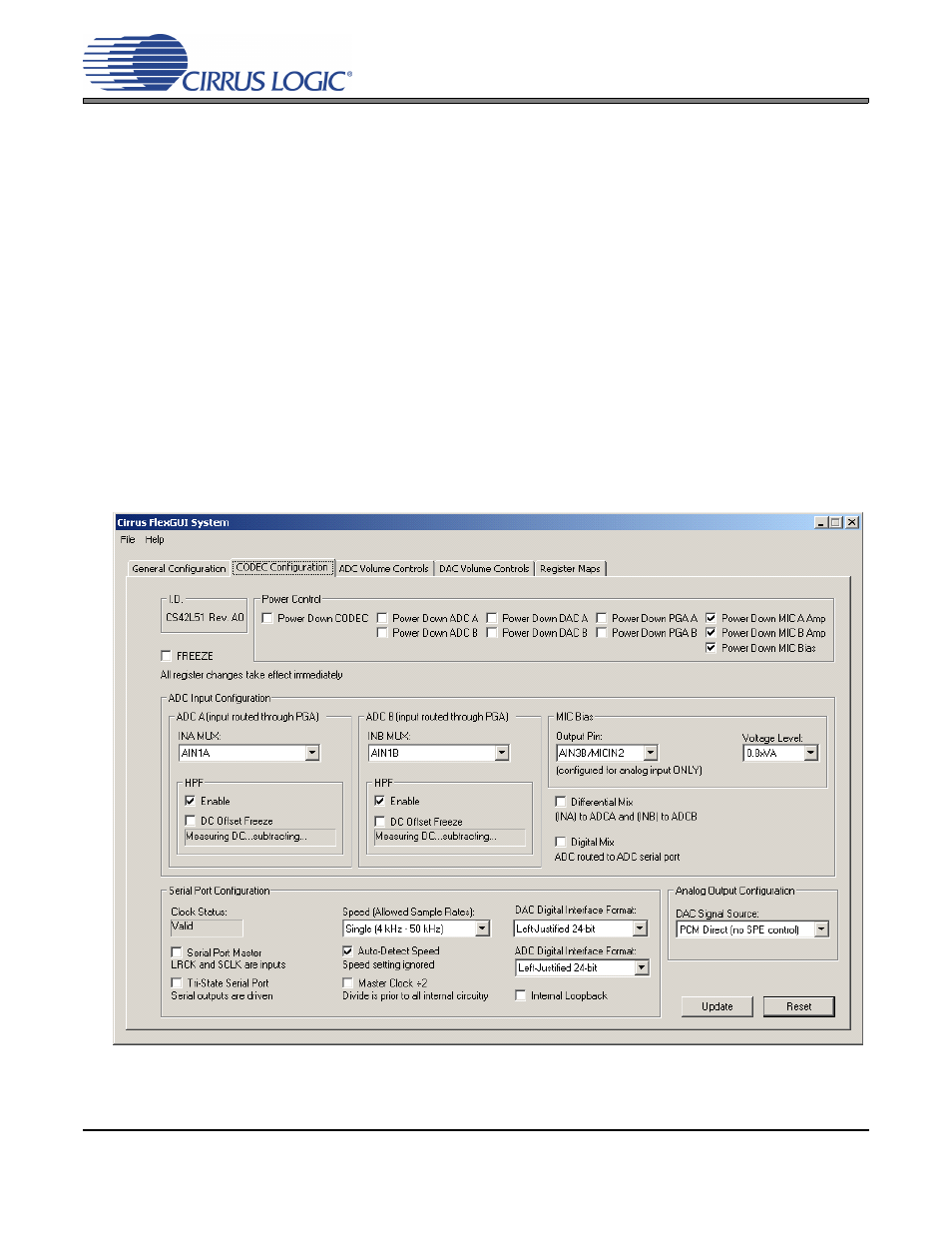

Figure 2. CODEC Configuration Tab
