10 DS679DB2
CDB42L51
2.3 ADC Volume Controls Tab
The “ADC Volume Controls” tab provides high-level control of all volume settings in the ADC of the
CS42L51. Status text detailing the CODEC’s specific configuration is shown in parenthesis or inside the
control group of the affected control. This text will change depending on the setting of the associated control.
A description of each control group is outlined below (a description of each register is included in the
CS42L51 data sheet):
Digital Volume Control - Includes digital volume controls and adjustments for the ADC.
ALC Configuration - Includes all configuration settings for the Automatic Level Control (ALC).
Analog Volume Control - Includes all analog volume controls and adjustments for the ADC.
Noise Gate Configuration - Includes all configuration settings for the noise gate.
Update - Reads all registers in the CS42L51 and reflects the current values in the GUI.
Reset - Resets the CS42L51.

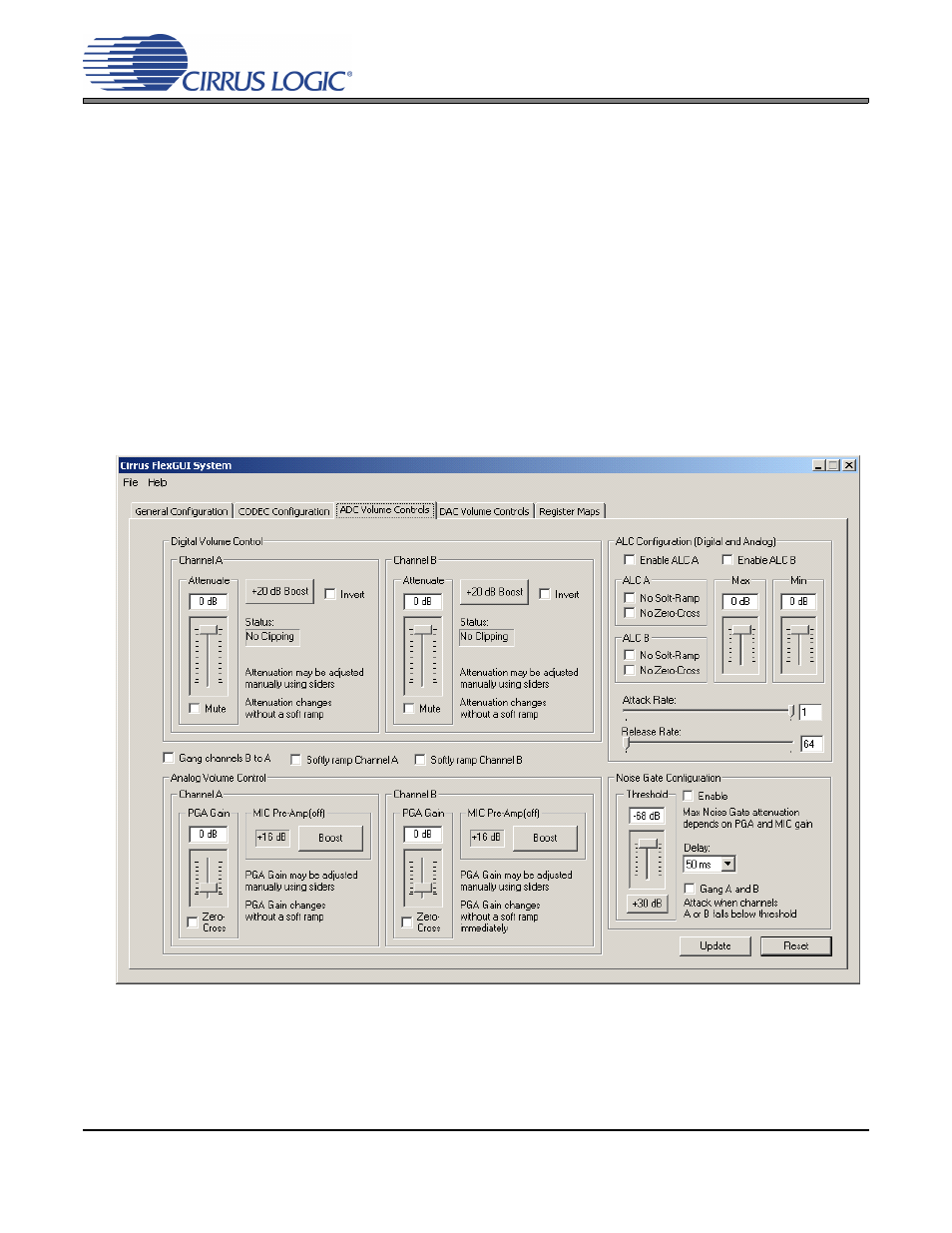

Figure 3. ADC Volume Controls Tab
