2.4 DAC Volume Controls Tab
The “DAC Volume Controls” tab provides high-level control of all volume settings in the DAC of the
CS42L51. Status text detailing the CODEC’s specific configuration is shown in read-only edit boxes, in pa-
renthesis, or appears directly below the associated control. This text will change, depending on the setting
of the associated control. NOTE: Control groups that include “(SPE)” in its labeling are a part of the Signal
Processing Engine (SPE) and are not accessible unless the SPE signal is selected in the “CODEC Config-
uration” tab. A description of each control group is outlined below (a description of each register is included
in the CS42L51 data sheet):
Digital Volume Control - Includes all digital volume controls and adjustments for the DAC.
Analog Multipliers - Includes the control for the analog gain of the output amplifier and displays the full scale
output factors.
Limiter Configuration - Includes all configuration settings for the Limiter.
Tone Control - Includes all bass and treble boosting controls and adjustments.
BEEP Generator - Includes all configuration settings for the BEEP generator.
Update - Reads all registers in the CS42L51 and reflects the current values in the GUI.
Reset - Resets the CS42L51.

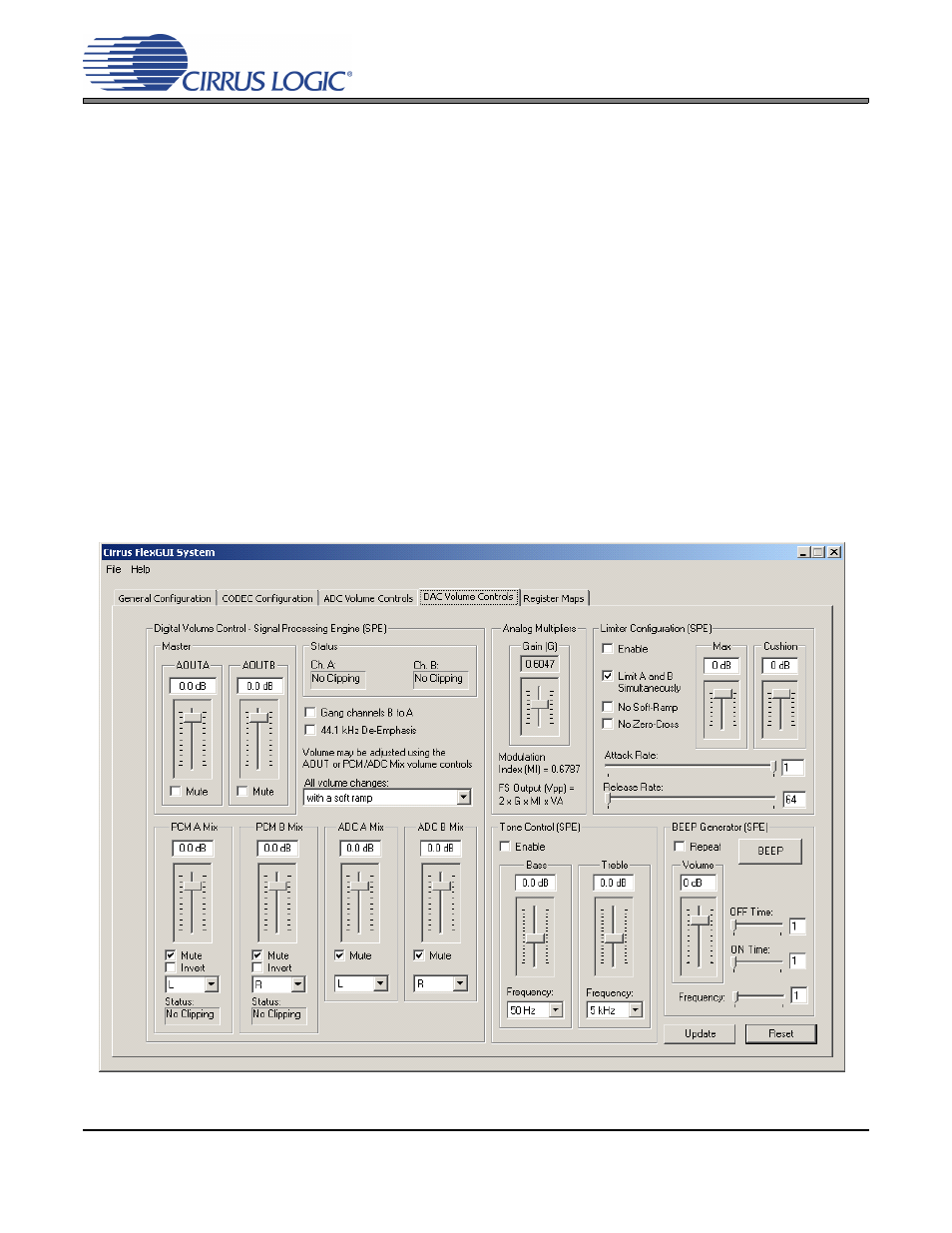

Figure 4. DAC Volume Controls Tab
