DS679DB2 7
CDB42L51
2. SOFTWARE MODE CONTROL
The CDB42L51 may be used with the Microsoft
®
Windows-based FlexGUI graphical user interface, allowing soft-
ware control of the CS42L51 and FPGA registers. The latest control software may be downloaded from
www.cirrus.com/msasoftware . Step-by-step instructions for setting up the FlexGUI are provided as follows:
1. Download and install the FlexGUI software as instructed on the Website.
2. Connect and apply power to the +5.0 V binding post.
3. Connect the CDB to the host PC using either a 9-pin serial or USB cable.
4. Launch the Cirrus FlexGUI. Once the GUI is launched successfully, all registers are set to their default reset
state.
5. Enable the CS42L51 by engaging the “Enable CS42L51” push button.
6. Refresh the GUI by clicking on the “Update” button. The default state of all registers are now visible.
7. Engage and then disengage the “Power Down” push button in the “CODEC Basic Configurations” group.
This performs the necessary write sequence to the CS42L51 for Software Mode operation.
For standard setup:
8. Set up the signal routing in the “General Configurations” tab as desired.
9. Set up the CS42L51 in the “CODEC Configurations”, “ADC Volume Controls” or “DAC Volume Controls” tab
as desired.
10. Begin evaluating the CS42L51.

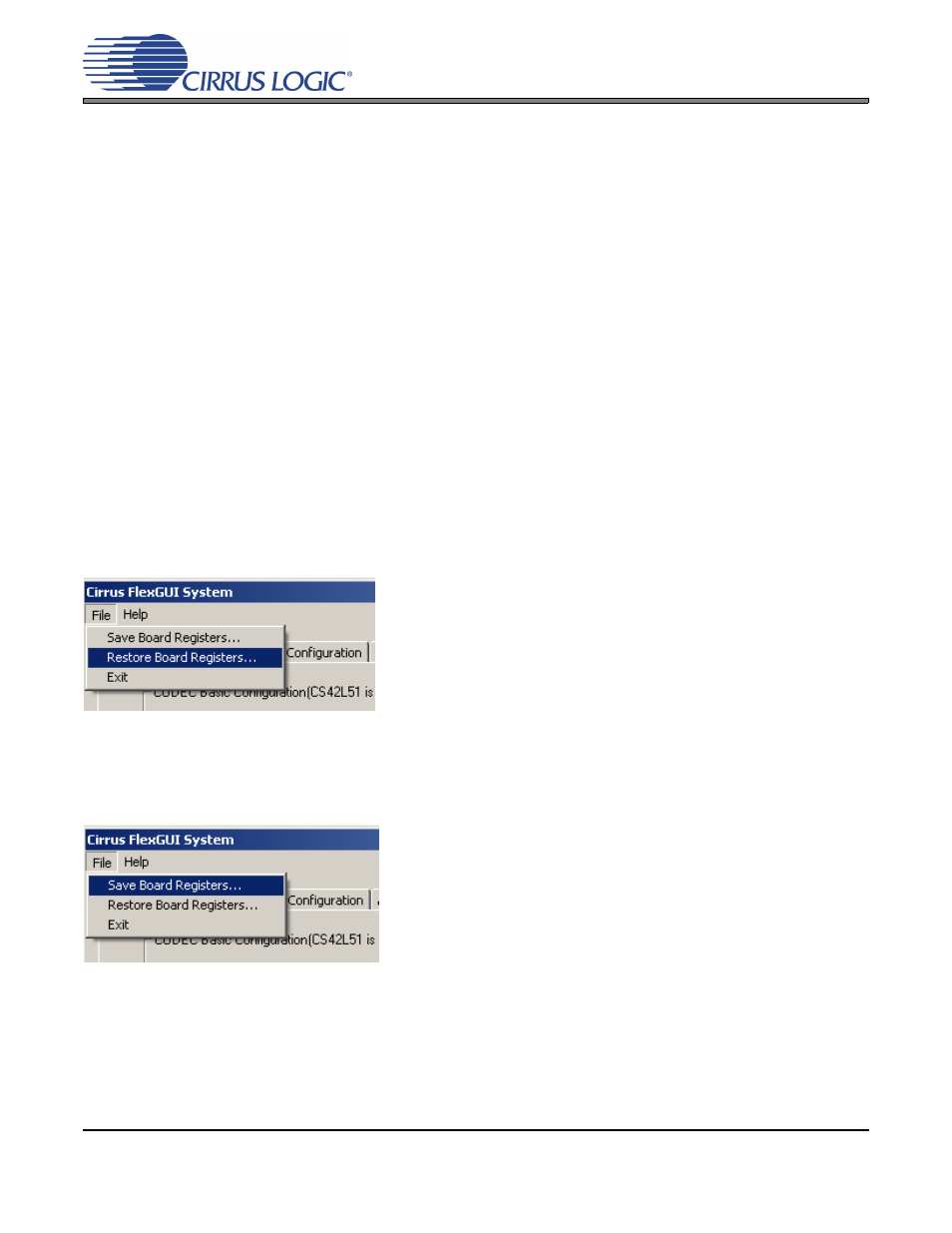

For quick setup, the CDB42L51 may, alternatively, be configured by loading a predefined sample script file:
11. On the File menu, click "Restore Board Registers..."
12. Browse to Boards\CDB42L51\Scripts\.
13. Choose any one of the provided scripts to begin evaluation.
To create personal scripts files:
14. On the File menu, click "Save Board Registers..."
15. Enter any name that sufficiently describes the created setup.
16. Choose the desired location and save the script.
17. To load this script, follow the instructions from step
11 above.
