DS679DB2

CDB42L51

2.5

Register Maps Tab

The Advanced Register Debug tab provides low-level control of the CS42L51 individual register settings.
Register values can be modified bit-wise or byte-wise. For bit-wise, click the appropriate push-button for the
desired bit. For byte-wise, the desired hex value can be typed directly into the register address box in the
register map. The “FPGA” and “GPIO” tabs may be ignored.

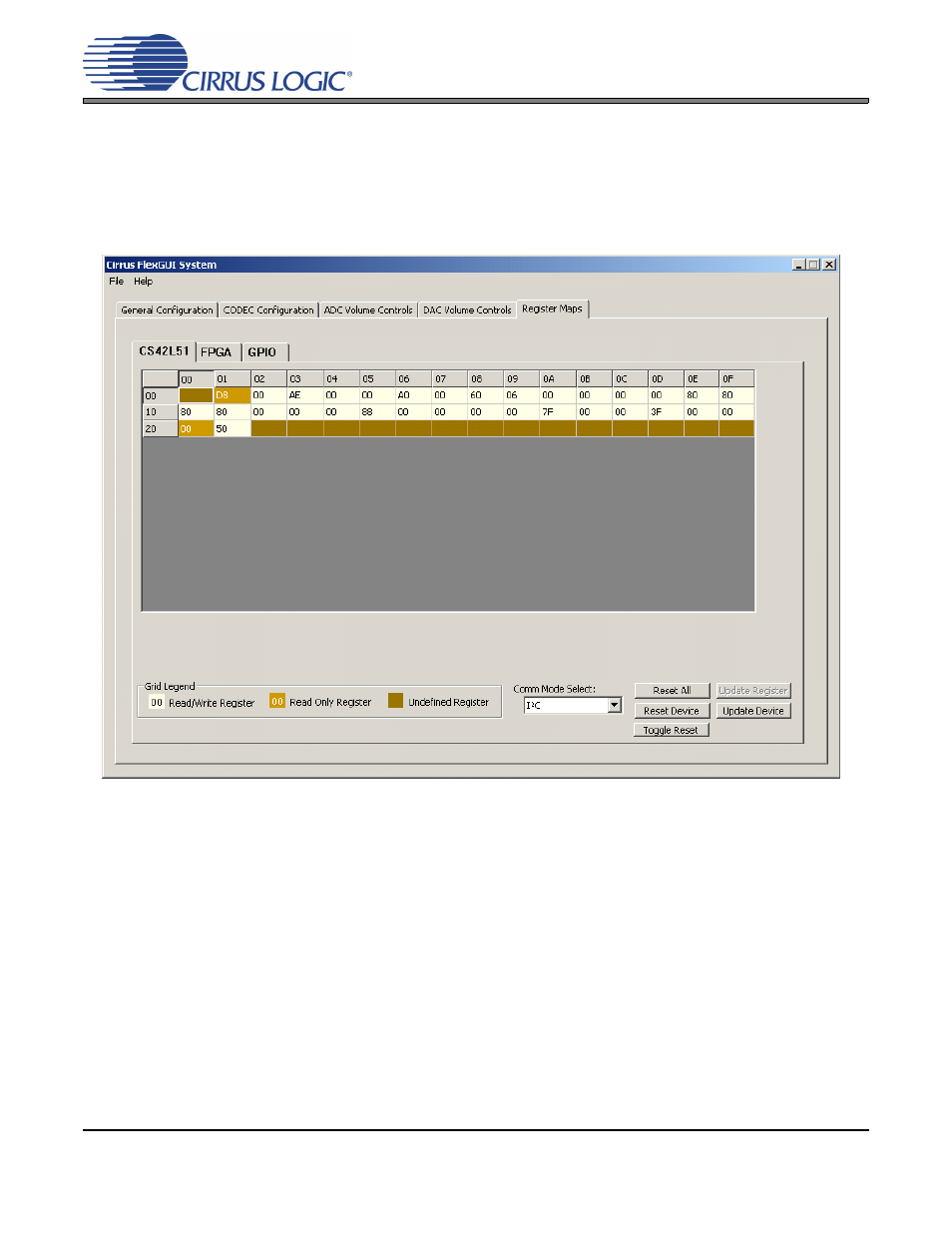

Figure 5. Register Maps Tab - CS42L51
