2.1
General Configuration Tab
The “General Configuration” tab provides high-level control of signal routing on the CDB42L51. This tab also
includes basic controls for the CS42L51 for quickly setting up the CDB42L51 in simple configurations. Sta-
tus text detailing the CODEC’s specific configuration is shown in parenthesis or appears directly below the
associated control. This text may change depending on the setting of the associated control. A description
of each control group is outlined below:
CODEC Basic Configuration - Includes basic register controls in the CS42L51 used for setting up the inter-
face format, clocking functions and internal analog input routing. See
through
for
more controls in the CS42L51.
S/PDIF Receiver Control - Includes all available hardware mode controls for setting up the CS8415.
S/PDIF Transmitter Control - Includes all available hardware mode controls for setting up the CS8406.
Clock/Data Routing and CODEC Reset - Includes controls used for routing clocks and data between the
CS42L51, CS8415, oscillator and the I/O stake header. Also includes a reset control for the CS42L51.
Update - Reads all registers in the FPGA and CS42L51 and reflects the current values in the GUI.
Reset - Resets FPGA to default routing configuration.

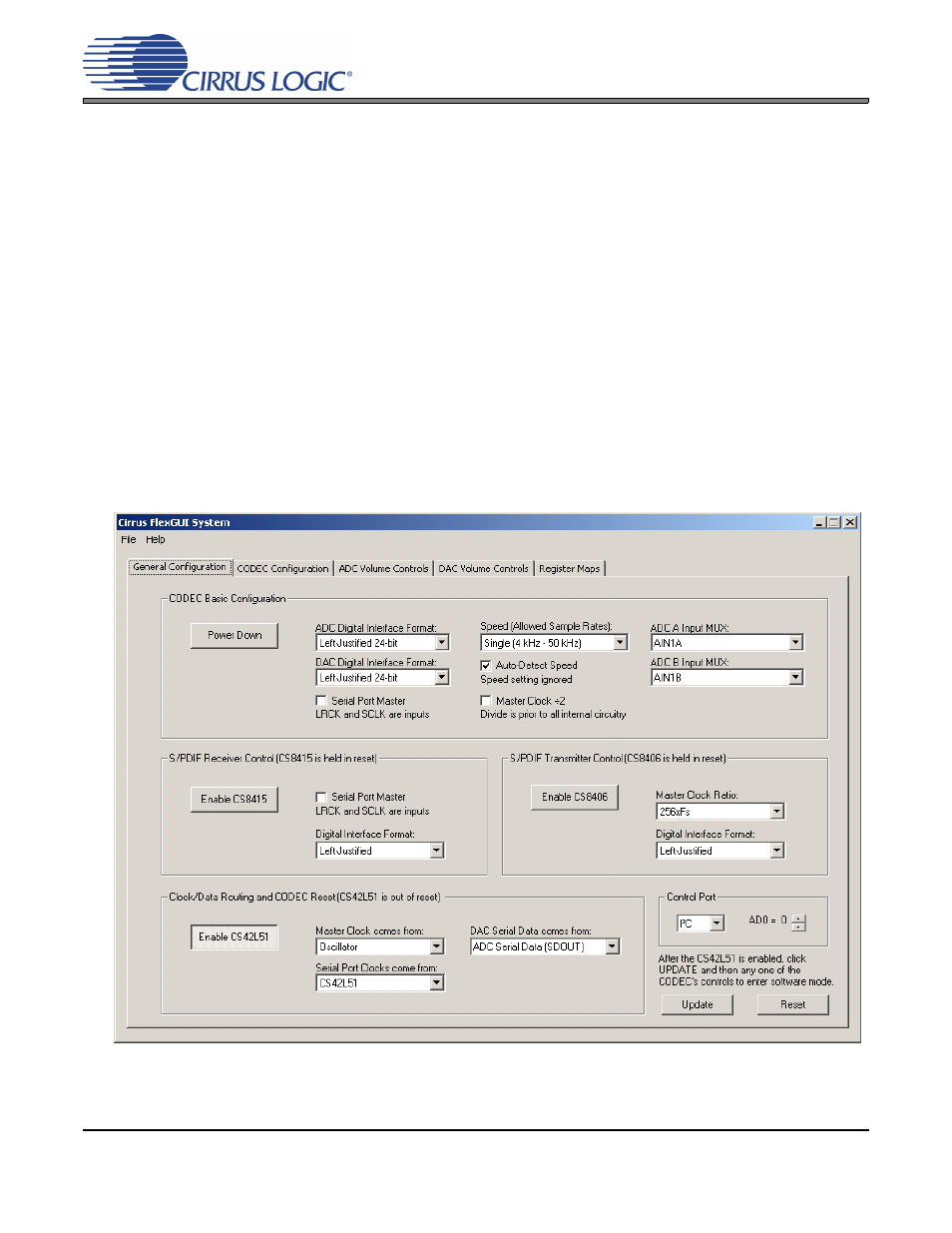

Figure 1. General Configuration Tab
