WIKA CPP1600-X - Manual (Page 16)

11178035 12/2010 GB/D/F/E
Hand Spindle Pump
CPP1000-M/-L
WIKA Operating Instructions Hand Spindle Pump 16

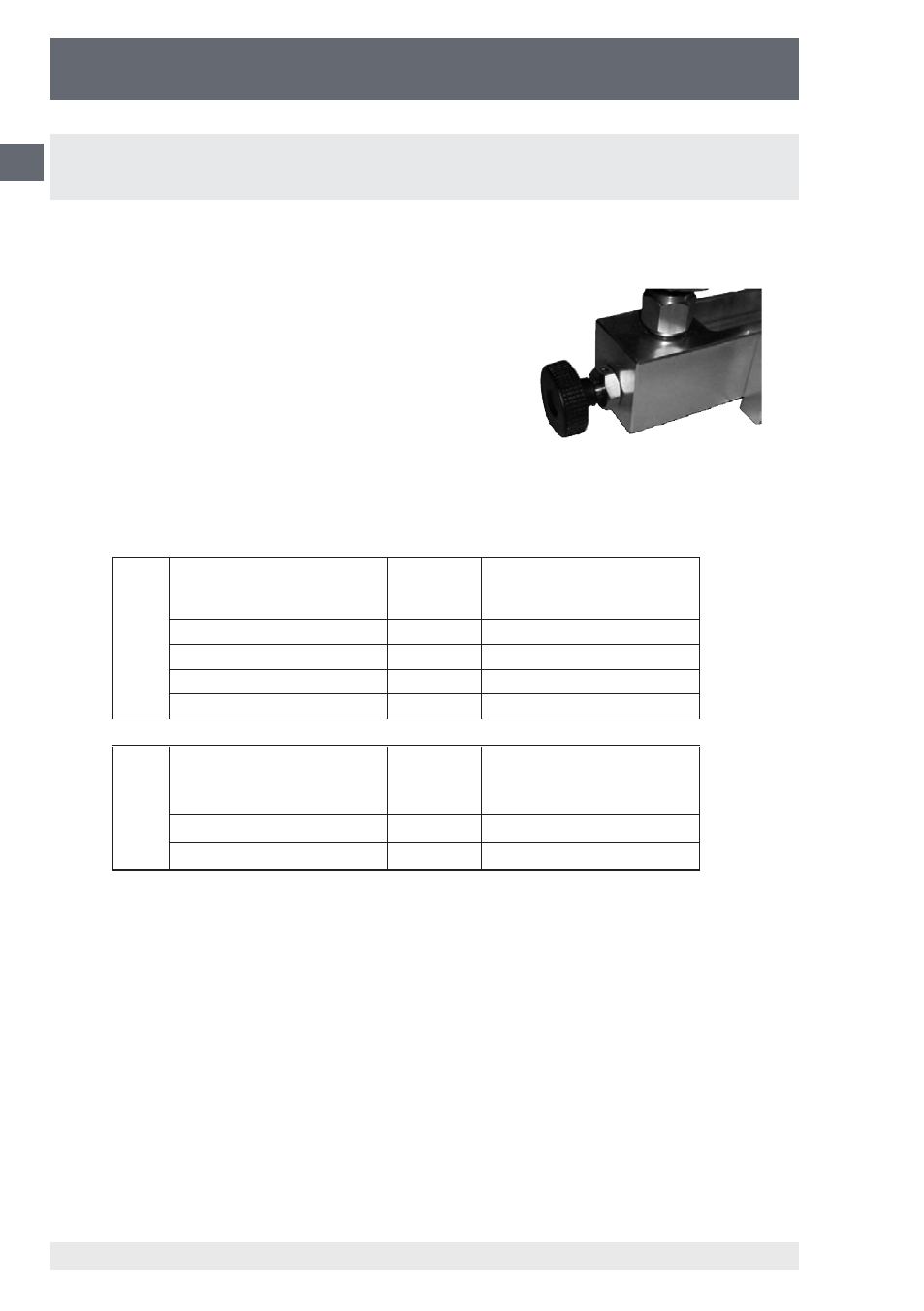

6. Mounting instruction for shut-off valve for test connec-
tion and fine adjustment valve
The mounting instruction describes the subse-
quent mounting of the shut-off valve for test
connection (Order No. 11208384) or of the fine
adjustment valve (Order No. 11248351). The
valves can be mounted at the side of the back
flange in exchange for the blind plugs which are
installed as standard.
The following combinations are possible for the individual pump versions.
CPP1000-M
Shut-off valve for test
connection
Fine adjustment valve
1 with 0
0 with 1
1 with 1
2 with 0
CPP1000-L
Shut-off valve for test
connection
Fine adjustment valve
1 with installed as standard
0 with installed as standard
If only one instrument (reference gauge or test item) with large volume is mounted on
the CPP1000-M, only one shut-off valve for test connection is needed. If both gauges
(reference and test item) have large volumes, the usage of two shut-off valves is
recommended.
When 2 shut-off valves are used, it is not possible to mount a fine adjustment valve.
