Neck tube
Material: stainless steel
Neck tube diameter: 12 mm
Standard neck length: 150 mm, others on request (minimum neck length: 100 mm)

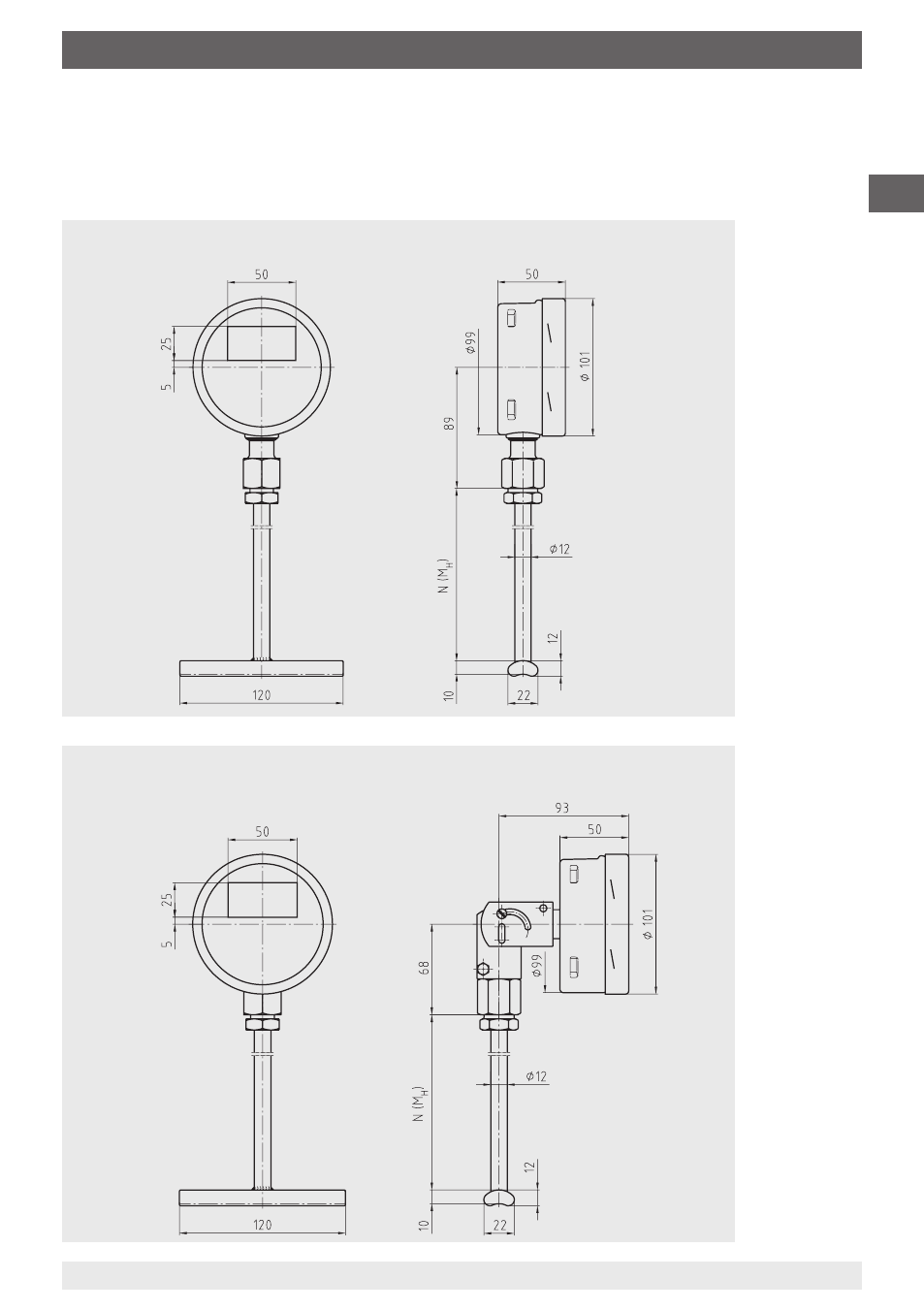

3157541.04
DiwiTherm
®
model TR75 for mounting on a pipe surface, with neck tube
Connection from housing to neck tube: fixed, lower mount
11144807.04
DiwiTherm
®
model TR75 for mounting on a pipe surface, with neck tube
Connection from housing to neck tube: adjustable stem and dial,
rear mount, centric
