Note: Make sure to avoid the Light Bars when punching hole. Locate the conduit at Top or
Rear near the left or right side.
1. The sign is designed for surface mounting. An optional ceiling mount bracket can be
purchased for ceiling mount applications.
2. Conduit penetration may be on the top, the left side, the bottom or the back. If conduit is
installed in the back, the top right corner is the preferred location. See diagram above.
There are no provisions made for mounting directly to a switch box or 4” square box.
3. There are (4) mounting holes in the back of the sign box. Use pan-head wood screws
with plastic anchors to attach box to sheet rock wall.
Mounting
4. The sign is designed to be operated at 24vdc. The Red LED Light Bar requires 65ma
when lit. The Green LED Light Bar requires 25ma when lit. There is NO current
consumption in a de-activated state.
5. A pair of terminals are provided for each message. Wire from the terminals to 24vdc.
Interrupt the (+) or (-) through a N.O. contact. Close the contact to activate the
associated message.
Activating

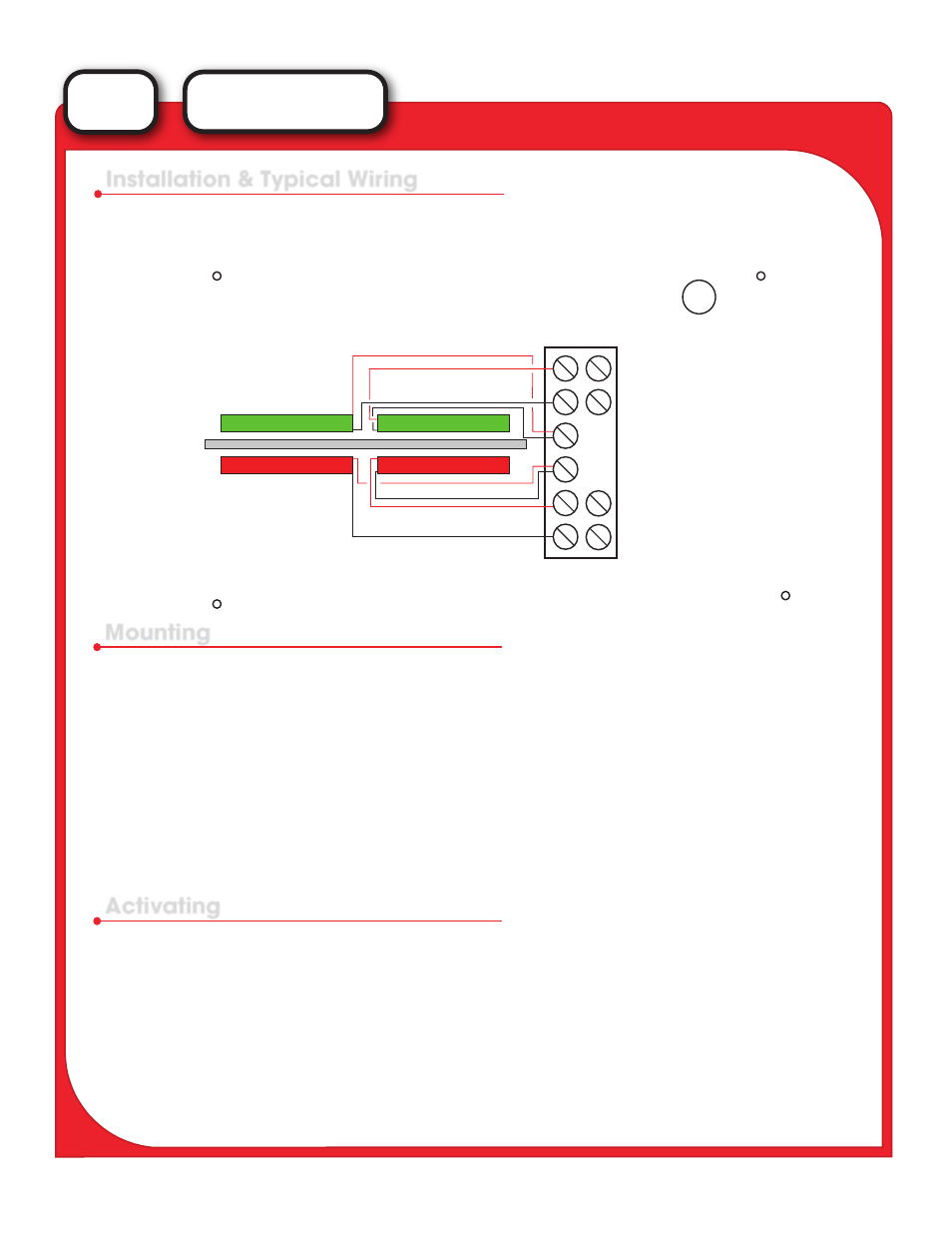

Installation & Typical Wiring
24vdc Input
+
-
Conduit
Cover Plate - This End
Green LED Light Bars
Red LED Light Bars
-
+
Announcement
Evacuate
