Model, Width x height – Light Engineered Displays EM Series User Manual
Page 2
EM
SERIES
GRAPHIC
EVACUATION MAP
Consult the factory regarding custom sizes, products, options or special requirements.
A drawing is required showing the actual graphic representation needed for your
project. Mark the Map location on the plans so that the artwork can be oriented
properly with a “You Are Here” designation.
Graphic sizes are shown below, according to model number. The maximum
area available for artwork is the outside dimension, less two inches. We will
work from your blueline, copy, fax, sketch, email or CAD file. Please note: a full
Ordering Information

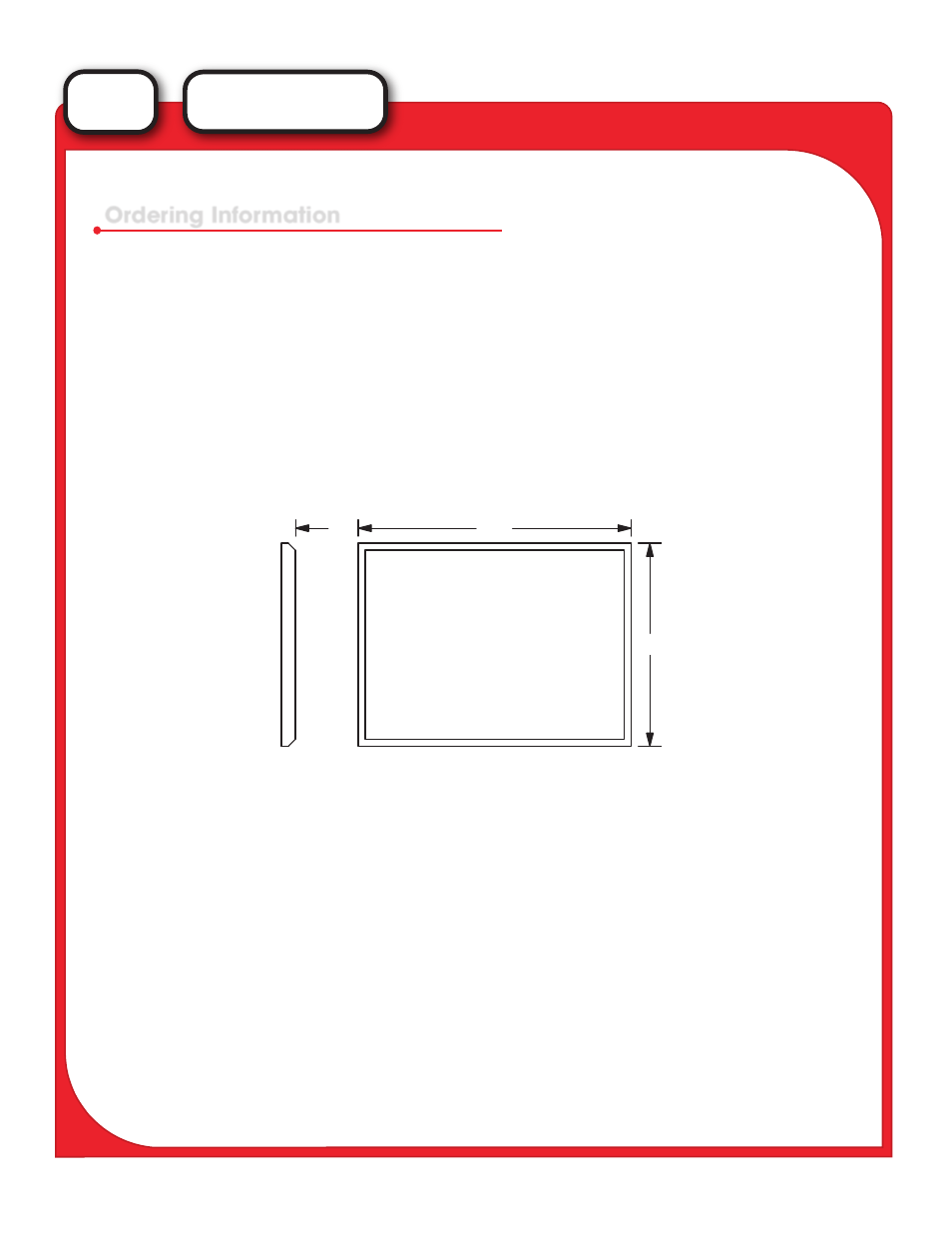

"W"
"H"
7/8"
Graphic Door
MODEL
EM1212
EM-0
EM1818
EM-1
EM-2
EM-3
EM-4
WIDTH x HEIGHT
12” x 12”
18” x 9”
18” x 18”
23 7/8” x 14”
23 7/8” x 24 1/2”
23 7/8” x 35”
36” x 48”
NOTE: Units May Be Mounted
Vertical or Horizontal
