KRAMER: SIMPLE CREATIVE TECHNOLOGY

Upgrading the VS-81SP Firmware

22

5. Click OK.

6. From the File menu, select Load Hex.

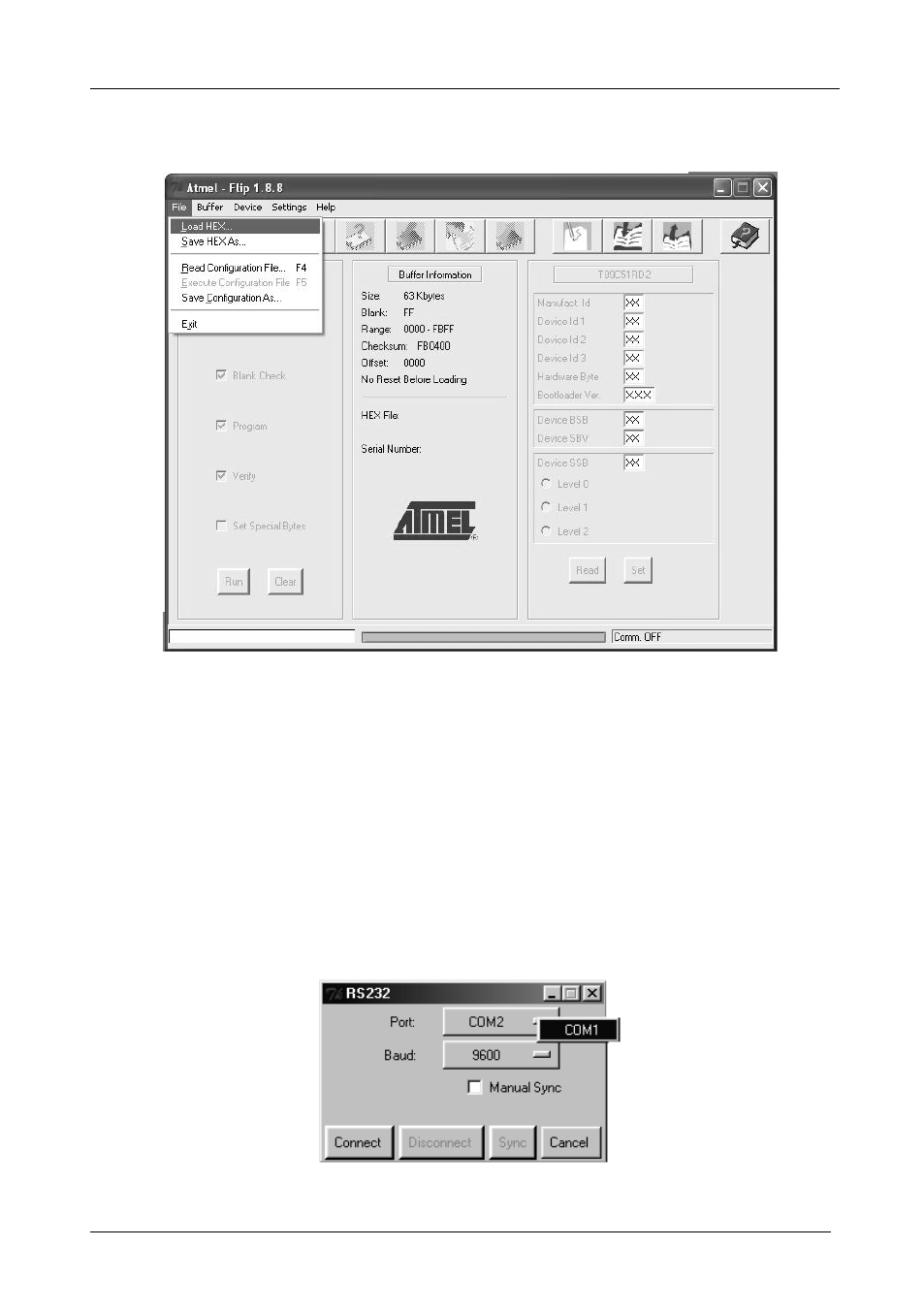

Figure 16: Loading the Hex

7. The Open File window opens. Select the correct HEX file that contains the

updated version of the VS-81SP firmware (for example,
VP81SP _V1p2.hex) and click Open.

8. Open the RS-232 window by pressing the keyboard shortcut key F3 (or

select the Communication / RS232 command from the Settings menu, or
press the keys: Alt-SCR).
The RS232 window appears.

9. Change the COM port settings according to the configuration of your

computer and select the 9600 baud rate:

Figure 17: RS-232 Window
