Connecting the VS-81SP 8 x 1 Loudspeaker Switcher
15
15
6.4 Connecting the REMOTE Terminal Block
1
Connect remote contact-closure switches to the REMOTE terminal block
connector (item 8 on the back panel) as
Connector
Figure 10 describes. A remote unit
can consist of a mechanical switcher
2
with a common wire for ground
3
8
1
1
2
2
3
3
8 G
......
......
.

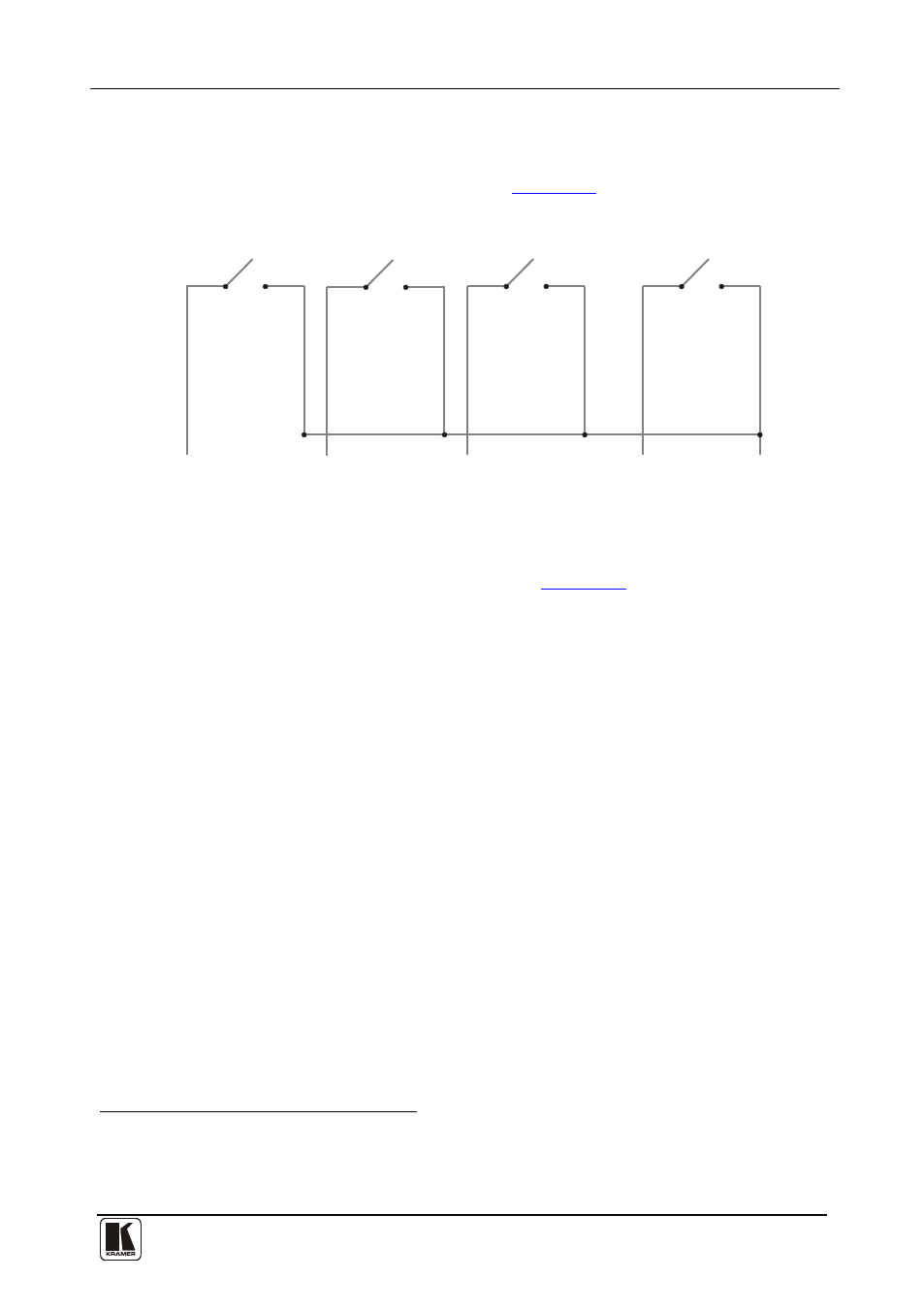

Figure 10: Connecting a Remote Mechanical Switcher Unit to the VP-81SP
You can also connect remote contact-closure switches to the REMOTE
terminal block connectors. The example in
Figure 11 illustrates how to
connect remote contact-closure switches to the REMOTE terminal block
connectors on a set of three looped VS-81SP units:
1 The REMOTE terminal block connector has 8 pins (plus the G pin)
2 The remote unit can have up to 8 buttons for the VS-81SP, corresponding to the front panel INPUT SELECTOR buttons.
3 Providing control over a distance up to hundreds of meters
