3.1

Defining the VS-44HDCP 4x4 DVI Matrix Switcher

This section defines the VS-44HDCP.

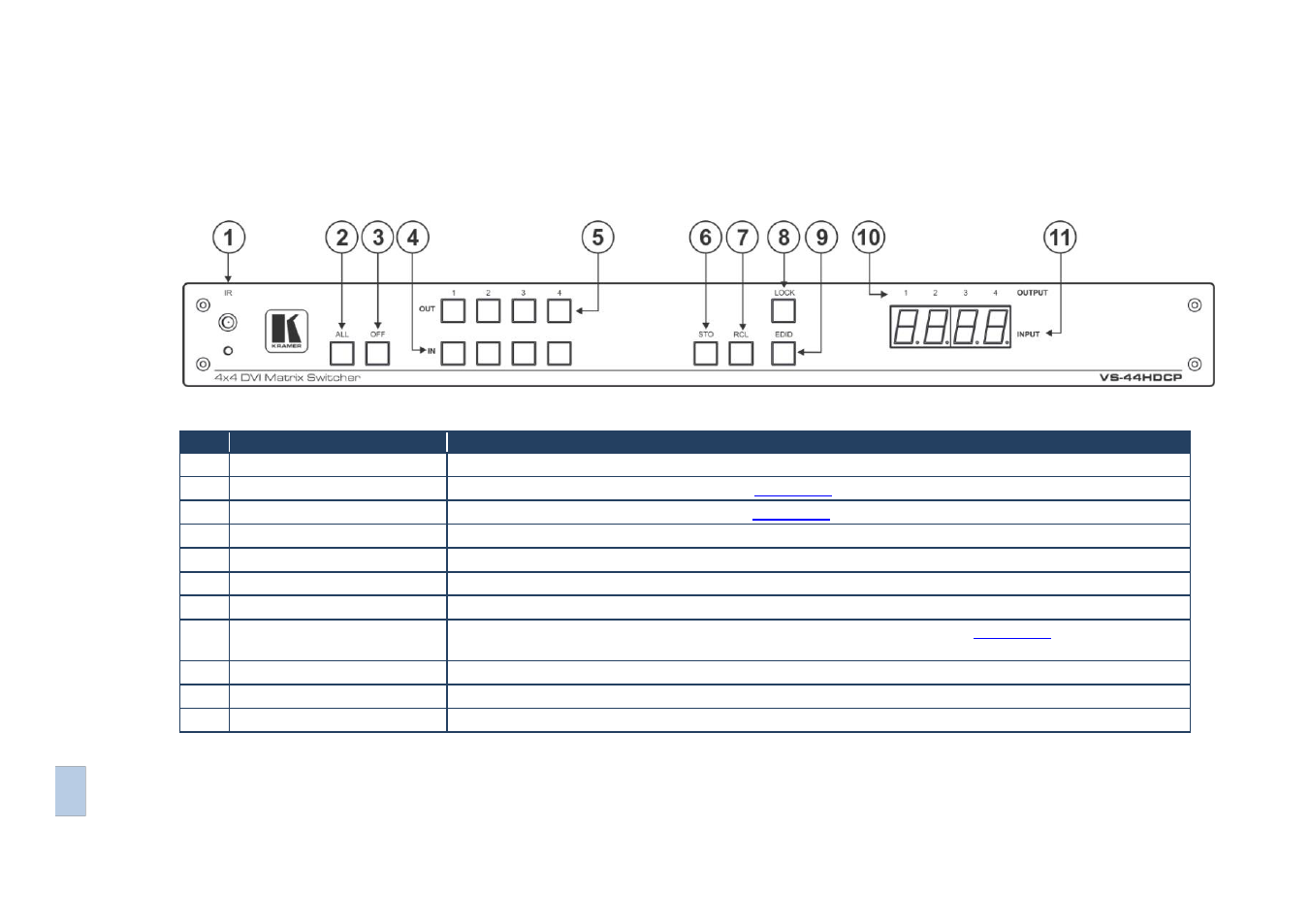

Figure 1: VS-44HDCP 4x4 DVI Matrix Switcher Front Panel

#

Feature

Function

1

IR Receiver and LED

IR remote control sensor. LED lights yellow when receiving an IR signal

2

ALL Button

Press to select all inputs or all outputs (see

Section

6.1

)

3

OFF Button

Press to disconnect one or all outputs (see

Section

6.2

)

4

IN Buttons

Press to select an input (from 1 to 4)

5

OUT Buttons

Press to select an output (from 1 to 4)

6

STO Button

Press to store a switching configuration

7

RCL Button

Press to recall a switching configuration

8

LOCK Button

Press and hold to lock the front panel buttons and to acquire the EDID (see

Section

6.4

). Press and hold

a second time to unlock the front panel buttons

9

EDID Button

Press to acquire the EDID

10

OUTPUT 1 to 4

Indicates the output channels and their respective input selections on the 7-segment display

11

INPUT 7-segment Display

Number shown on the display indicates the input channel routed to the corresponding output channel
