VS-44HDCP - Controlling the VS-44HDCP 19
19

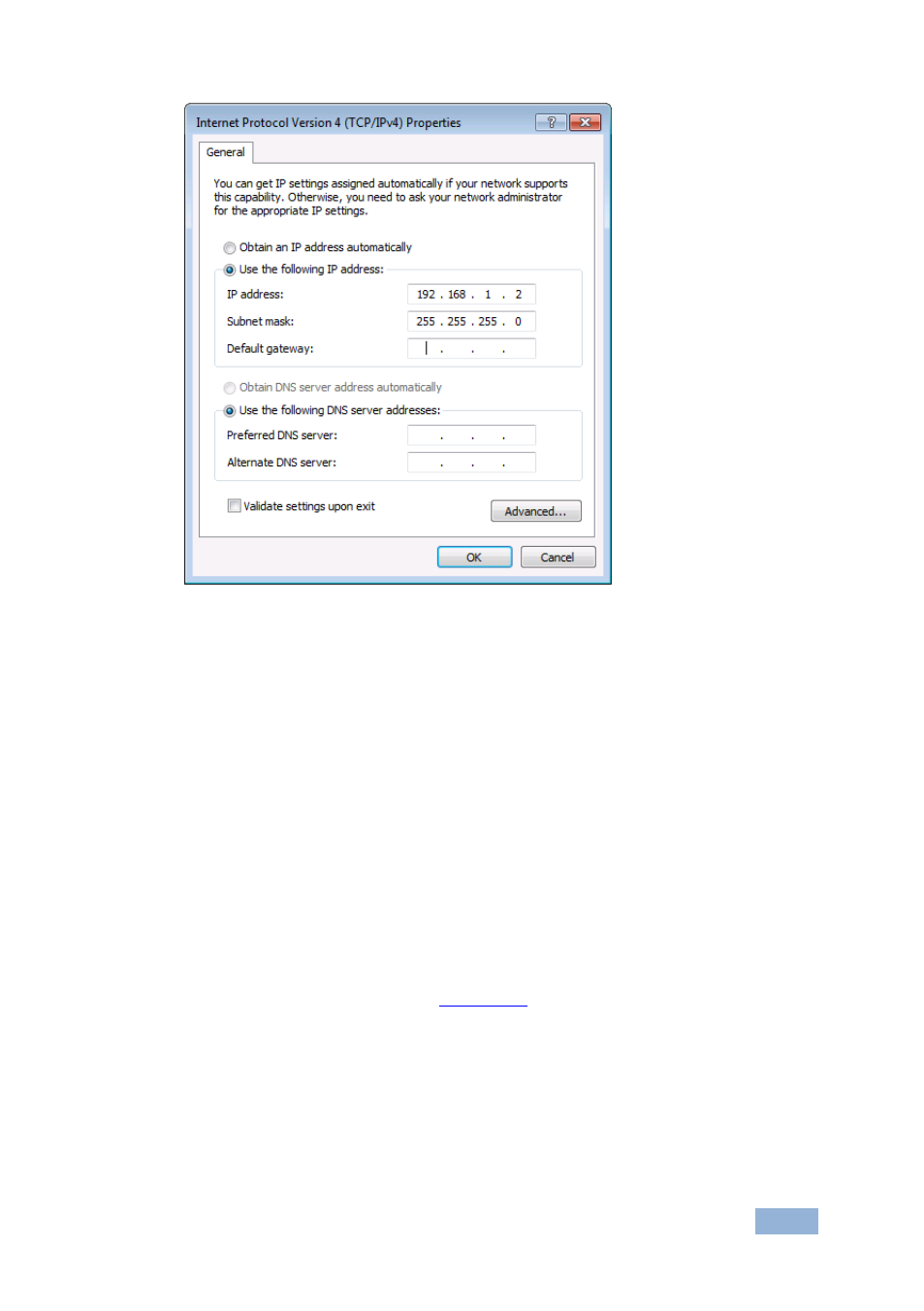

Figure 8: Internet Protocol Properties Window
7. Click OK.
8. Click Close.
7.2.2 Connecting the Ethernet Port via a Network Hub or Switch
You can connect the Ethernet port of the VS-44HDCP to the Ethernet port on a
network hub or using a straight-through cable with RJ-45 connectors.
7.2.3 Control Configuration via the Ethernet Port
To control several units via Ethernet, connect the Master unit (Device 1) via the
Ethernet port to the Ethernet port of your PC. Use your PC provide initial
configuration of the settings (see Section
7.2
).
