KRAMER: SIMPLE CREATIVE TECHNOLOGY

Flash Memory Upgrade

34

9.2.3

Upgrading Firmware

Follow these steps to upgrade the firmware:

1. Double click the KFR-Programmer desktop icon.

The KFR-Programmer window appears (see Figure 26).

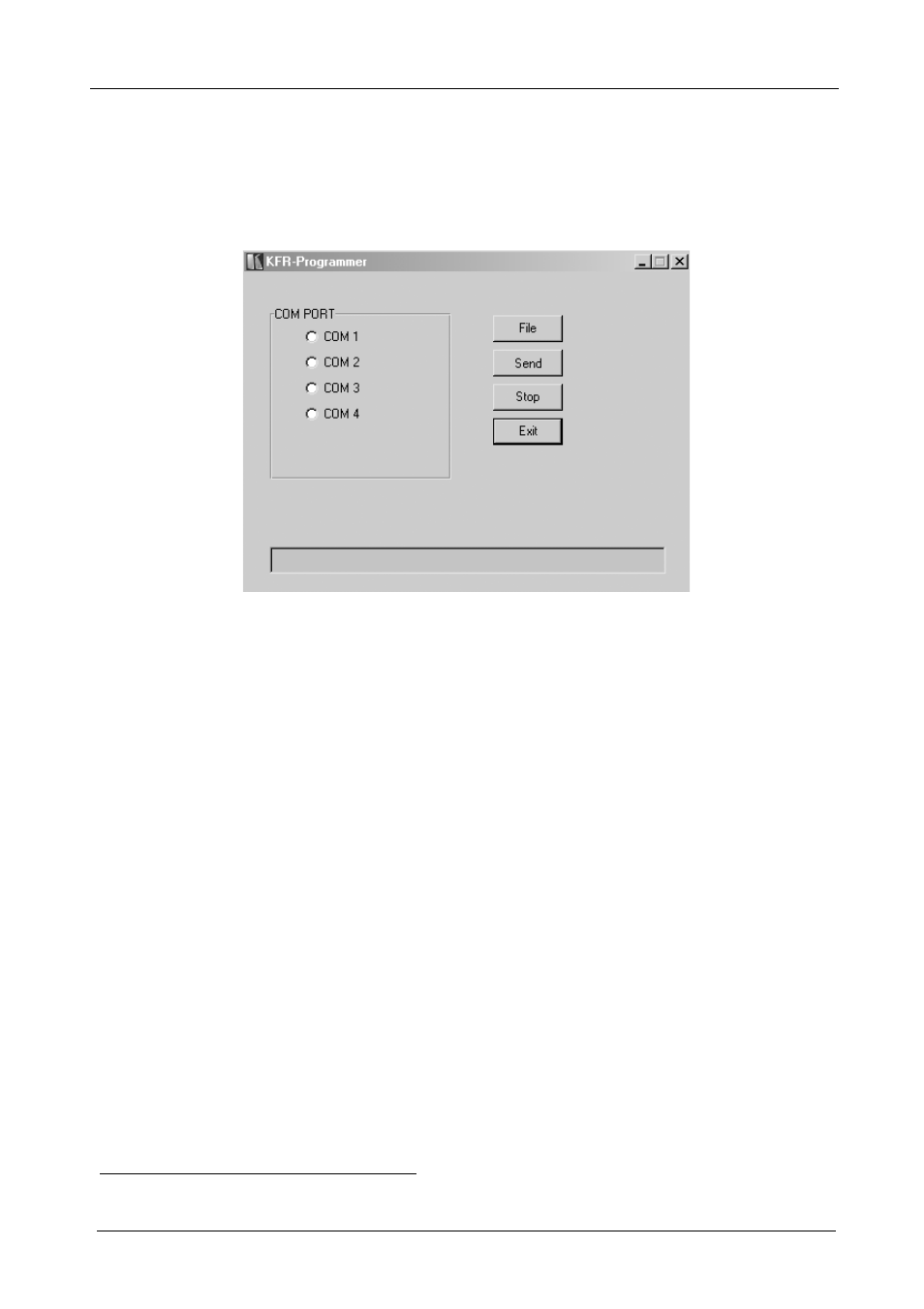

Figure 26: The KFR-Programmer Window

2. Select the required COM Port

1

.

3. Press the File button to select the .s19 firmware file included in the package.
4. Press the Send button to download the file. The Send button lights red.
5. Wait until downloading is completed and the red Send button turns off.
6. Disconnect the power on the

VS-44HC.

7. Set the ETH Flash/Normal switch, located on the machine underside, to

Normal.

8. Connect the power on your machine.

1 To which the VS-44HC is connected on your PC
