Flash Memory Upgrade
29
9.1.3 Upgrading Firmware
Follow these steps to upgrade the firmware:
1. Double click the desktop icon: “ Shortcut to FLIP.EXE”.
The Splash screen appears as follows:

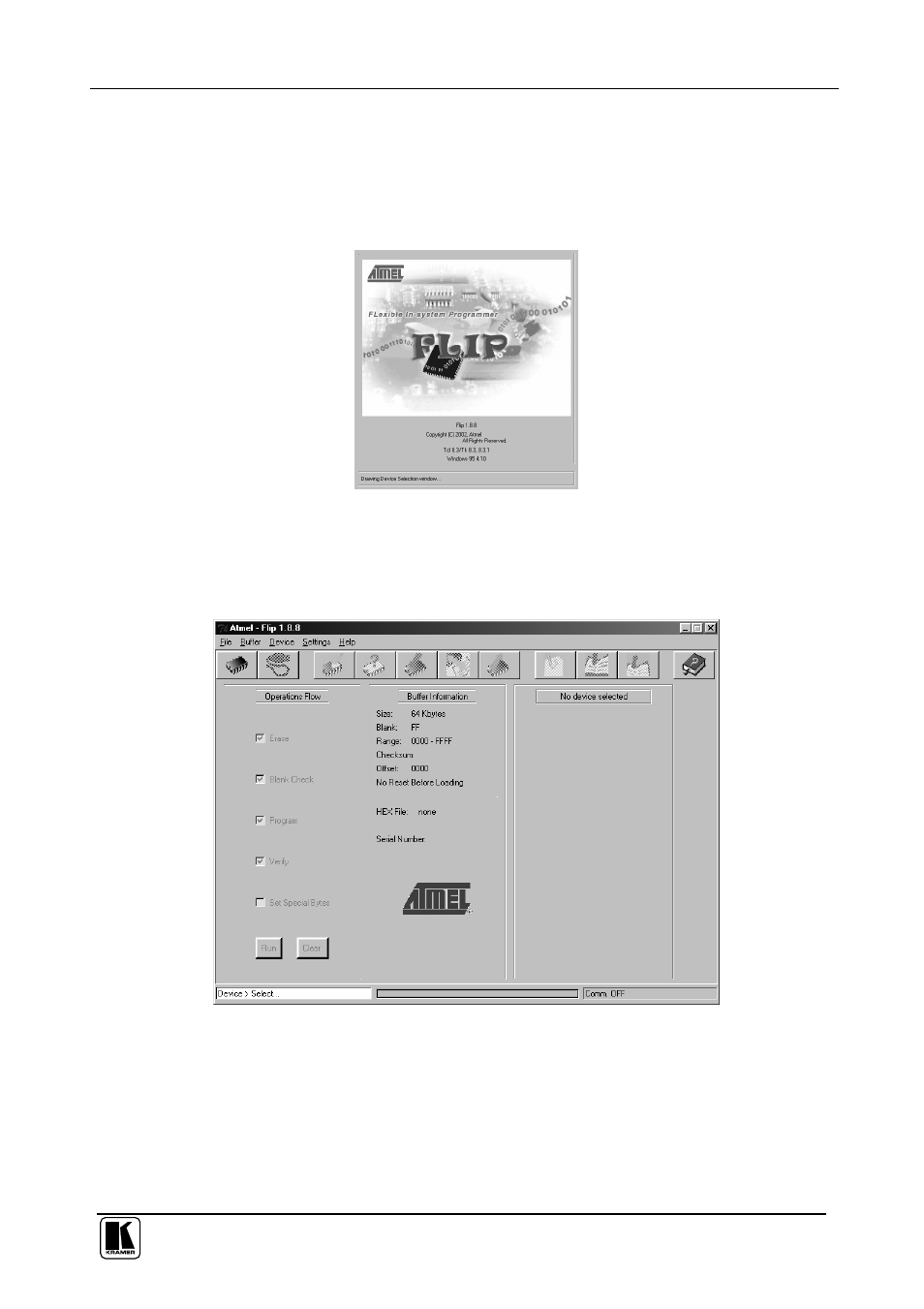

Figure 18: Splash Screen
2. After a few seconds, the Splash screen is replaced by the “ Atmel – Flip”
window:
Figure 19: Atmel – Flip Window
3. Press the keyboard shortcut key F2 (or select the “ Select” command from the
Device menu, or press the integrated circuit icon in the upper right corner of
the window).
The “ Device Selection” window appears:
