Controlling the VS-44HC
16
7.3 Controlling the VS-44HC via the ETHERNET Port
You can connect the VS-44HC via the Ethernet, using a crossover cable (see
section 7.3.1) for direct connection to the PC or a straight through cable (see
section 7.3.2) for connection via a network hub or network router.
7.3.1 Connecting the ETHERNET Port directly to a PC (Crossover Cable)
You can connect the Ethernet port of the VS-44HC to the Ethernet port on
your PC, via a crossover cable with RJ-45 connectors, as Table 7 and Figure 8
define.
Table 7: Crossover Cable RJ-45 PINOUT
EIA /TIA 568A
Side 1
EIA /TIA 568B
Side 2
PIN Wire Color PIN Wire Color
1 White-orange 1 White-green
2 Orange 2 Green
3 White-green 3 White-orange
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Orange
7 White-brown 7 White-brown
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 1 and 2 Pair 2 3 and 6
Pair 3 3 and 6 Pair 3 1 and 2
Pair 4 7 and 8 Pair 4 7 and 8

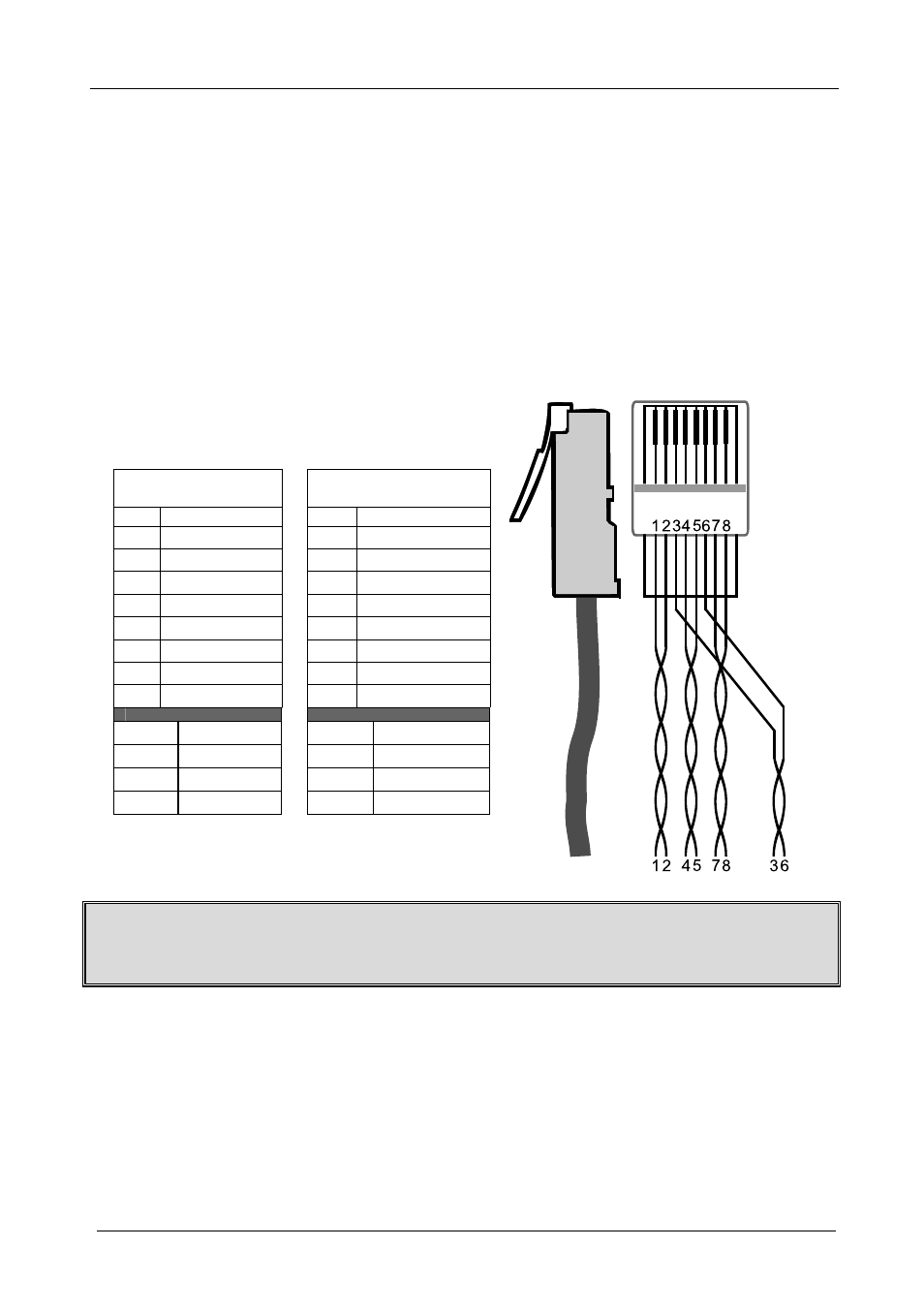

Figure 8: RJ-45 PINOUT
This type of connection is recommended for identification of the factory default
IP Address of the VS-44HC during the initial configuration
After connecting the Ethernet port, configure your PC as follows:
1. Right-click the My Network Places icon on your desktop.
2. Select
Properties.
3. Right-click Local Area Connection Properties.
4. Select
Properties.
The Local Area Connection Properties window appears.
