Operating the VS-44HC
25
8.5 Storing/Recalling Input/Output Configurations
You can store and recall 1 up to 8 input/output configurations using the 4 OUT
buttons and the 4 IN buttons, as Figure 17 illustrates:

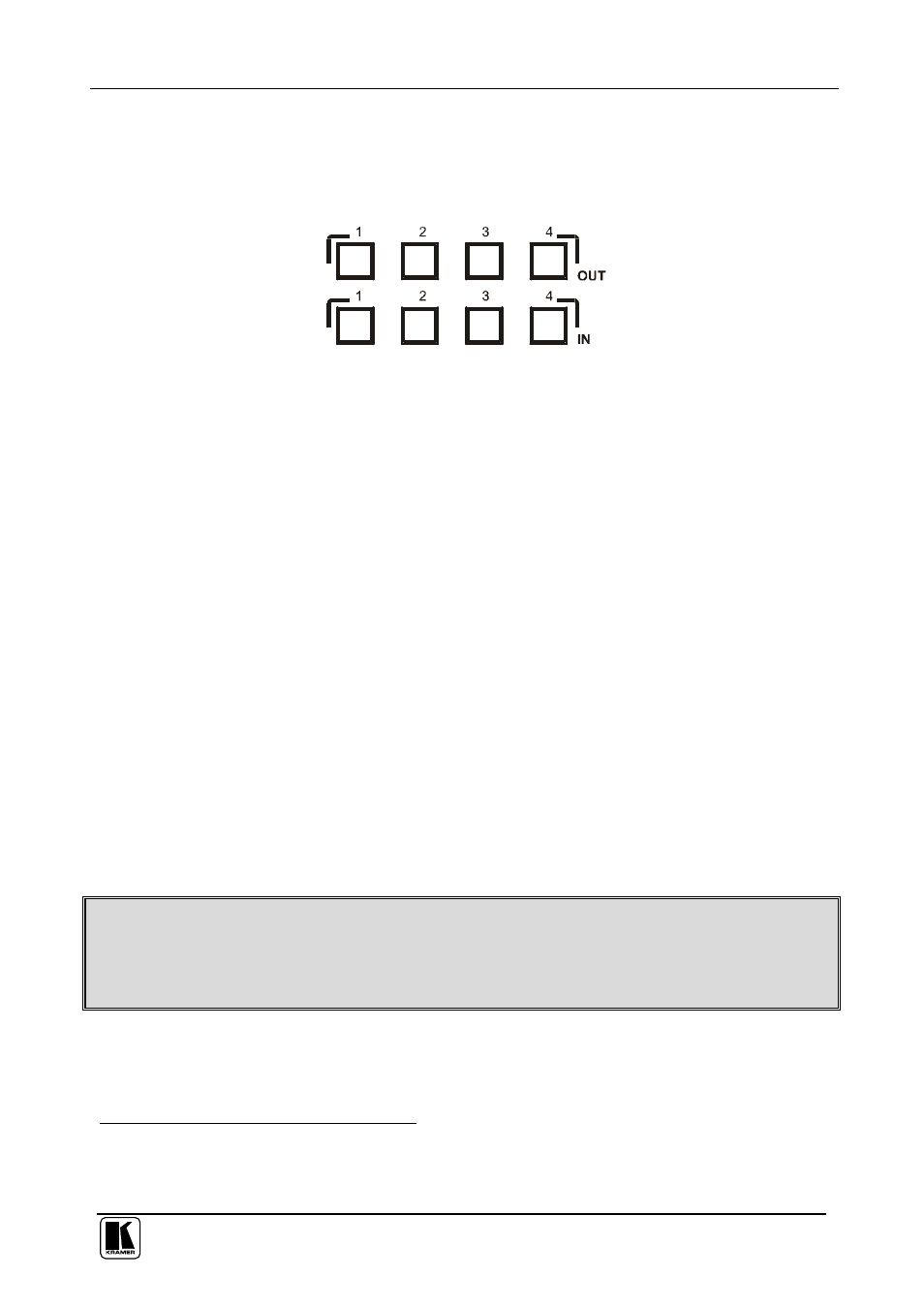

Figure 17: Storing and Recalling using the Input / Output Buttons 2
8.5.1 Storing an Input/Output Configuration
To store the current status in memory, do the following:
1. Press the STO/+ button.
The STO/+ button blinks.
2. Press one of the 8 IN/OUT buttons (this will be the setup # in which the
current status is stored). Press the blinking TAKE button to confirm the action.
The memory stores the data at that reference.
8.5.2 Recalling an Input/Output Configuration
To recall an input/output configuration, do the following:
1. Press the RCL/- button.
The RCL/- button blinks.
2. Press the appropriate Input / Output button (the button # corresponding to the
setup #). That setup configuration will blink in the Audio and Video
7-segment display and the TAKE button, and will only be implemented after
pressing the TAKE button.
The memory recalls the stored data from that reference.
Tip : If you cannot remember which of the 8 input/output-configurations is the one
that you want, set the VS-44HC to the Confirm mode and manually scan all the
input/output configurations until you locate it.
1 The 8 input/output configurations (or setups) also include the relevant audio-follow-video / breakaway option definition
2 The gray numbers (1 to 8) in Figure 17 that illustrate the corresponding store/recall configuration numbers, are for the
purpose of illustration only and do not appear on the buttons
