Connecting the VS-44HC
10
6.2 Connecting the Audio Signals
The VS-44HC 4x4 Home Entertainment Matrix Switcher inputs and outputs
digital audio signals in the following formats:
Four S/PDIF inputs and four S/PDIF outputs on RCA connectors (from
IN 1 to IN 4, and from OUT 1 to OUT 4, respectively)
One TOSLINK input and one TOSLINK output for IN 2 and OUT 2
IN 2 OUT 2
IN 3 OUT 3
IN 4 OUT 4
IN 1
DIP 6
DIP 7
OFF
OFF
ON
ON
OUT 1

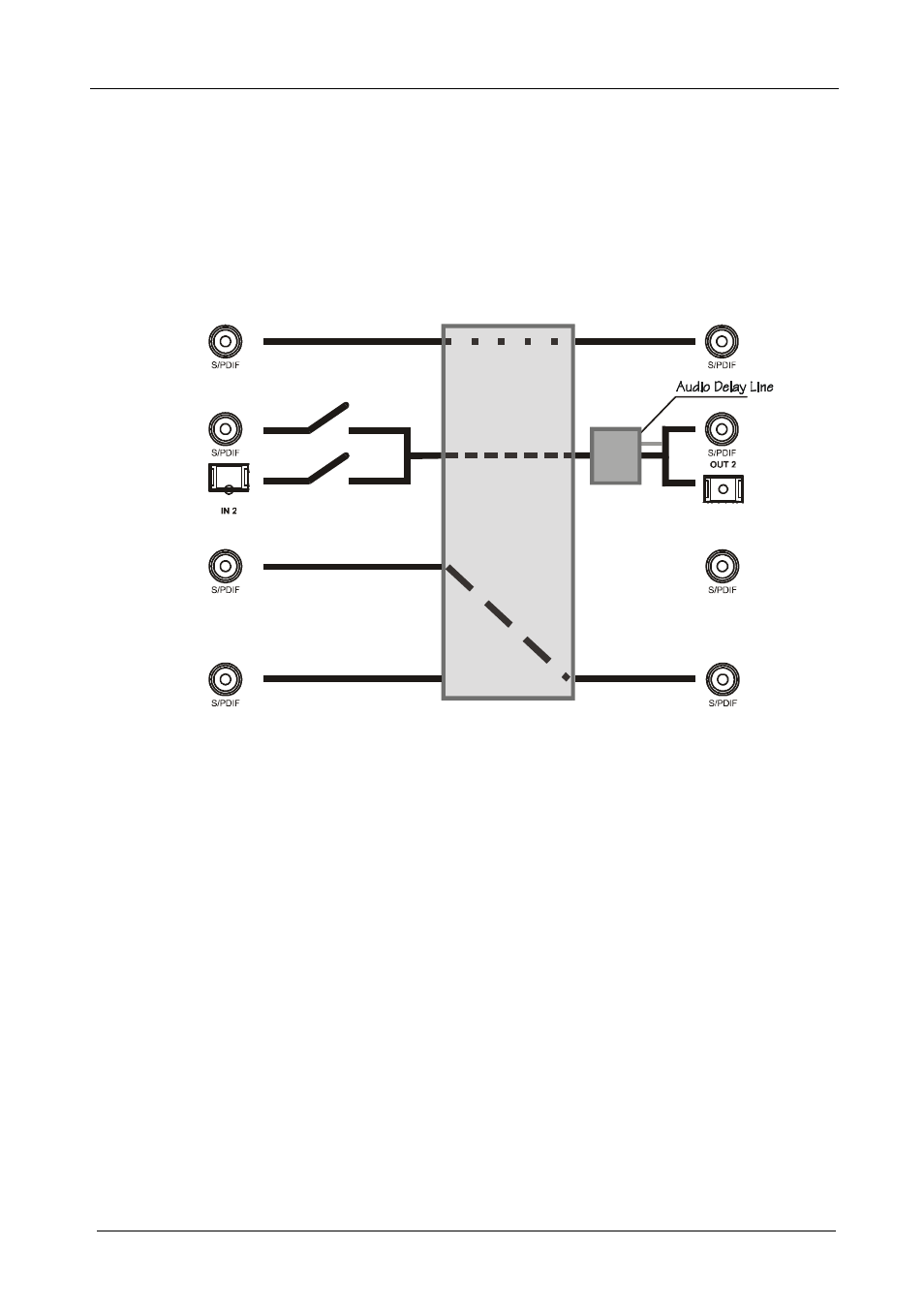

Figure 4: Connecting the VS-44HC Digital Audio Signals
In the example illustrated in Figure 4, IN 1 is switched to OUT 1, IN 3 is
switched to OUT 4 and IN 4 is not connected.
The IN 2 digital audio signal can be routed either via the IN 2 S/PDIF
connector or the IN 2 TOSLINK connector, depending on the setup of
dipswitches 6 and 7 (see section 6.3.2):
To select the S/PDIF connector, set DIP 6 ON and DIP 7 OFF
To select the TOSLINK connector, set DIP 7 ON and DIP 6 OFF
The digital audio signal on channel 2 is outputted simultaneously to both the
S/PDIF and TOSLINK OUT 2 connectors.
To set the audio delay time, see section 8.6
