Flash Memory Upgrade
26
2. Do the following according to the sequence below:
Connect the power cord and turn the POWER switch ON
Set DIP 9 ON
Set DIP 10 ON
Set DIP 12 ON
Set DIP 11 ON
After a few seconds, set DIP 11 OFF
The front panel buttons may illuminate erratically. This is normal, and should
be ignored.
8.3 Upgrading Firmware
Follow these steps to upgrade the firmware:
1. Double click the desktop icon: “ Shortcut to FLIP.EXE”.
The Splash screen appears as follows:

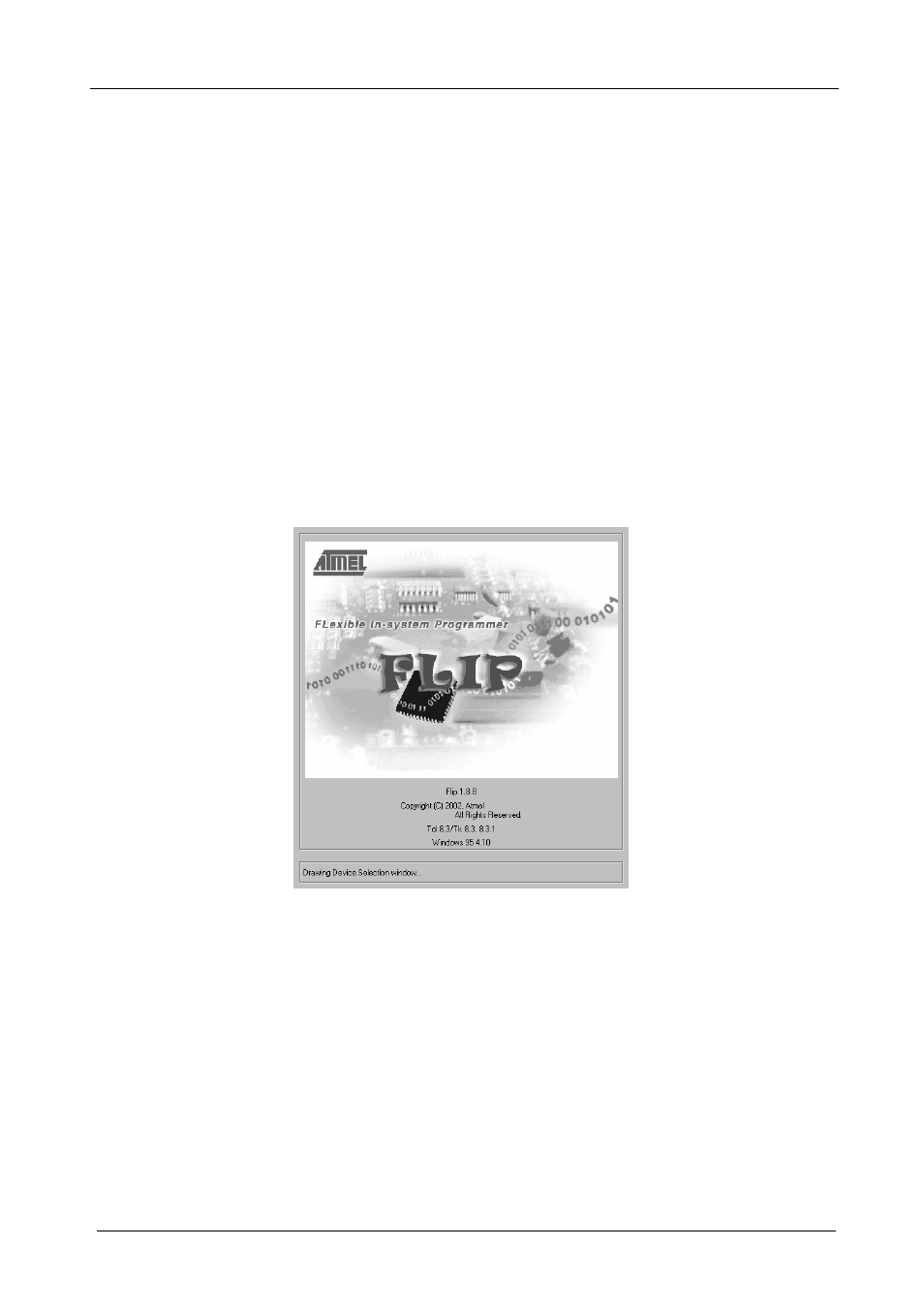

Figure 15: Splash Screen
2. After a few seconds, the Splash screen is replaced by the “ Atmel – Flip”
window:
