Connecting an XGA / Audio Switcher
13
6.2 Controlling via RS-232
To connect a PC to the VP-81xl, VP-161xl, or VP-321xl unit, using the
Null-modem adapter provided with the machine (recommended):
Connect the RS-232 IN DB9 rear panel port on the VP-81xl, VP-161xl, or
VP-321xl unit to the Null-modem adapter and connect the Null-modem
adapter with a 9-wire flat cable to the RS-232 DB9 port on your PC
To connect a PC to the VP-81xl, VP-161xl, or VP-321xl unit, without using a
Null-modem adapter:
Connect the RS-232 IN DB9 port on your PC to the RS-232 DB9 rear
panel port on the VP-81xl, VP-161xl, or VP-321xl unit, as Figure 7
illustrates

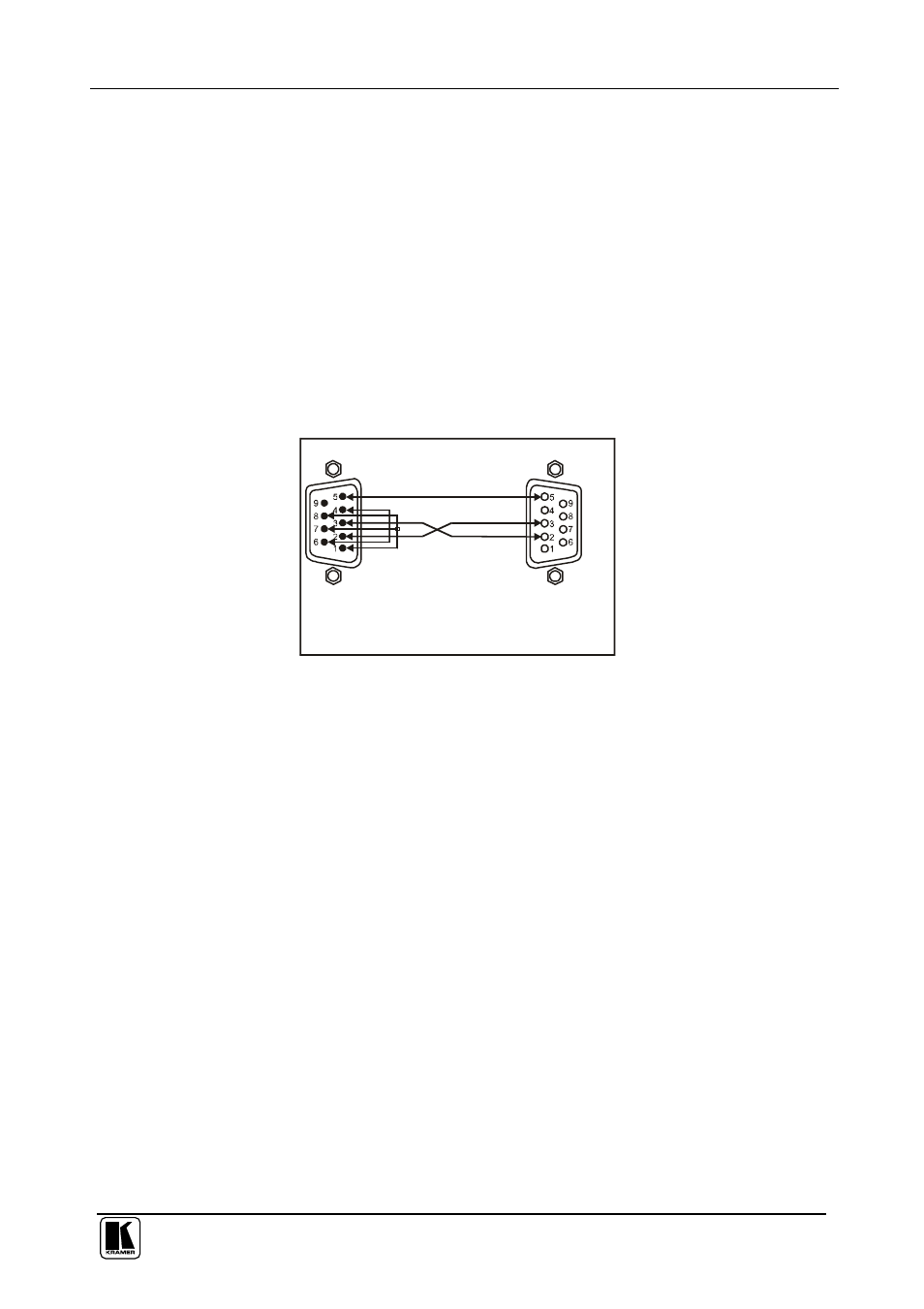

Female DB9 (From PC)
PIN 4 Connected to PIN 6
PINS 8, 7, 1 Connected together
If a Shielded cable is used, connect the shield to PIN 5
PIN 5 Connected to PIN 5 (Ground)
PIN 3 Connected to PIN 2
PIN 2 Connected to PIN 3
Male DB9
Figure 7: Connecting a PC without using a Null-modem Adapter
