KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting an XGA / Audio Switcher
12
6.1 Connecting the Balanced/Unbalanced Stereo Audio Input/Output

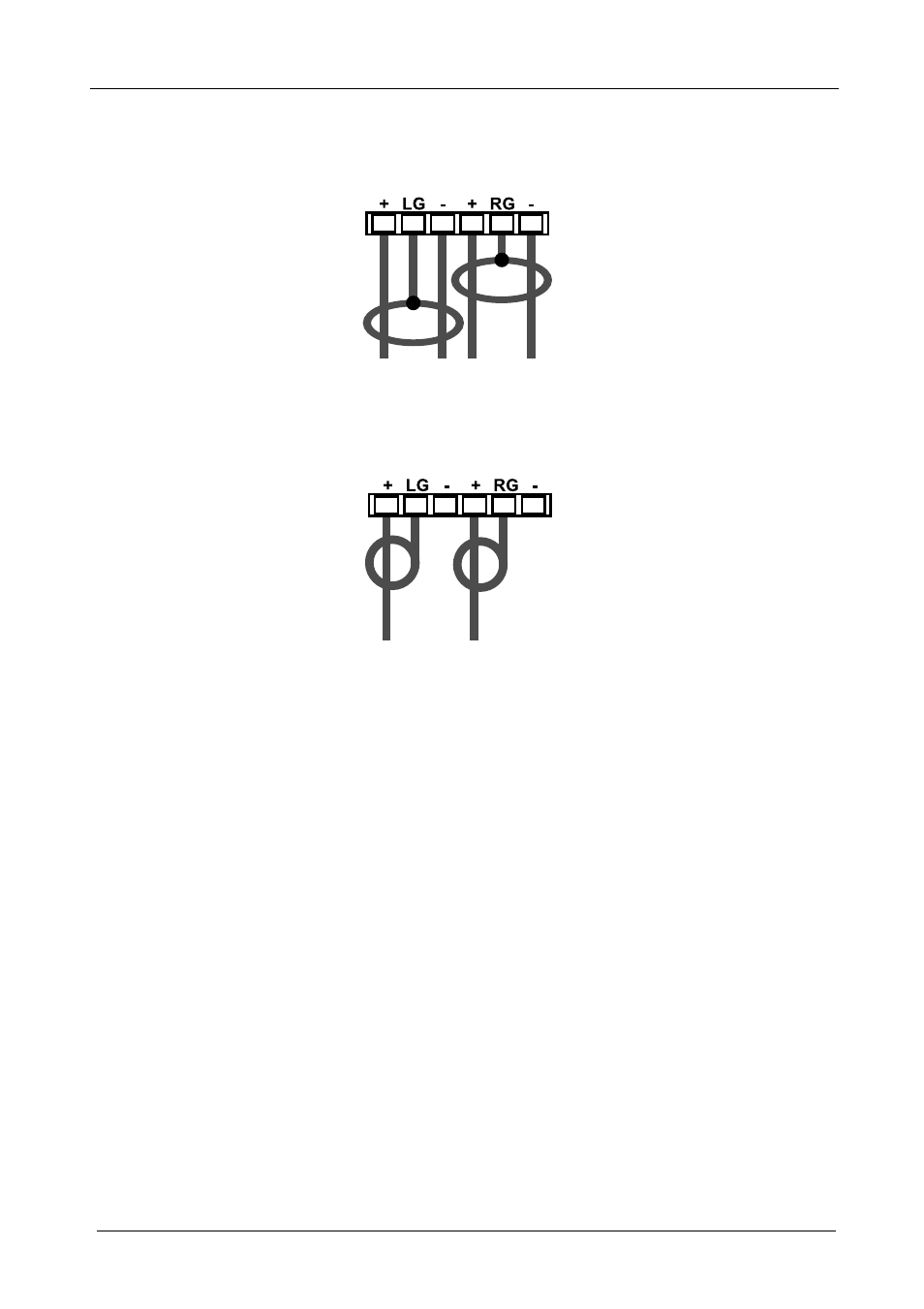

Figure 5 illustrates how to wire a balanced input/output connection on the
VP-81xl, VP-161xl, and/or VP-321xl unit:
Figure 5: Connecting the Balanced Stereo Audio Input/Output
Figure 6 illustrates how to wire an unbalanced input/output on the VP-81xl,
VP-161xl, and/or VP-321xl unit:
Figure 6: Connecting the Unbalanced Stereo Audio Input/Output
