Operating Your XGA / Audio Switcher
23
INPUT SELECTOR buttons 1 on the second and third units are inactive. You
cannot connect INPUT 1 on the second and third units to an independent
source because INPUT 1 on the second unit is connected to the OUTPUT on
the first unit and INPUT 1 on the third unit is connected to the OUTPUT on
the second unit.
INPUT SELECTOR buttons marked 1 to 8 on the first looped
VP-81xl unit
operate INPUTS 1 to 8, respectively. INPUT SELECTOR buttons marked 2
to 8 on the second looped VP-81xl unit operate INPUTS 9 to 15, respectively.
INPUT SELECTOR buttons marked 2 to 8 on the third looped VP-81xl unit
operate INPUTS 16 to 22, respectively.
Unit # 1
Unit # 2
Unit # 3

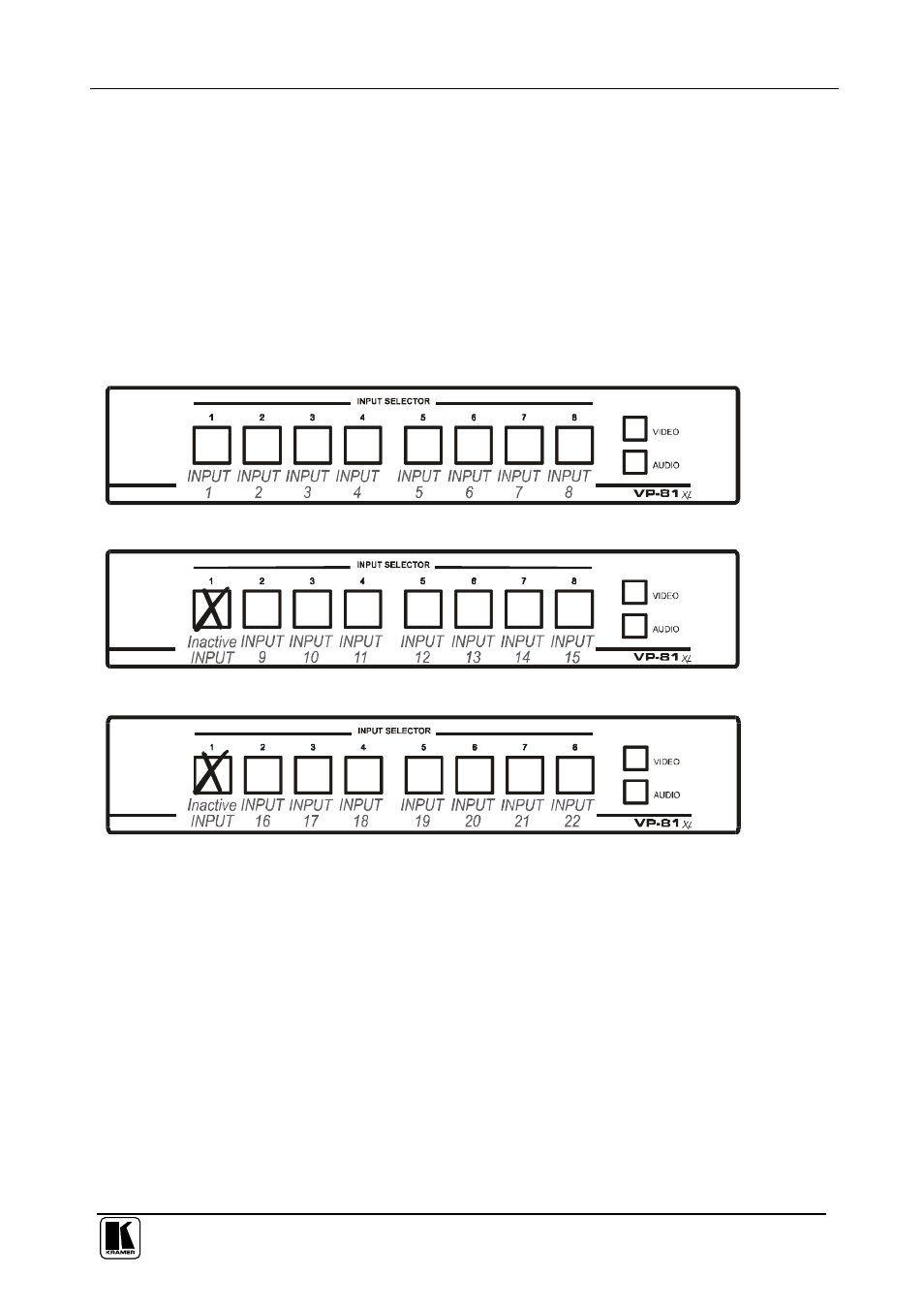

Figure 14: Operating a 22x1 XGA / Audio Switcher (Three Looped VP-81xl Units)
To operate the INPUT SELECTOR buttons on a set of three VP-81xl units:
Press an active INPUT SELECTOR button on the front panel of one of
the looped VP-81xl units
The active INPUT SELECTOR button illuminates and switches that input
to the output. For example, as the example in Figure 14 illustrates,
pressing INPUT SELECTOR button # 3 on VP-81xl unit # 2
automatically switches source # 10 to the output
