7 Your TP-123/TP-124
This section describes the TP-123 XGA/Audio/Data Line Transmitter (see
section 7.1 ), and the TP-124 XGA/Audio/Data Line Receiver (see section
7.2 ).
7.1 Your TP-123 XGA/Audio/Data Line Transmitter
The TP-123 is a high-performance transmitter that accepts a computer
graphics input signal, an unbalanced stereo analog audio signal,
unidirectional (RxD) RS-232 control commands and 12V DC power, over
CAT 5 cable, and transmits to a TP-124 receiver. The stereo analog audio
signal is converted to the digital audio (S/PDIF) stream before transmitting,
thus preserving the quality of the audio source signals.
The TP-123/TP-124 pair has a transmission range of more than 300ft (more
than 100m) over UTP cabling. In addition, the TP-123:
•
Can power or be powered by the TP-124 receiver over the same
CAT 5 cable and is 12V DC fed
Figure 9 and Table 8 define the TP-123:

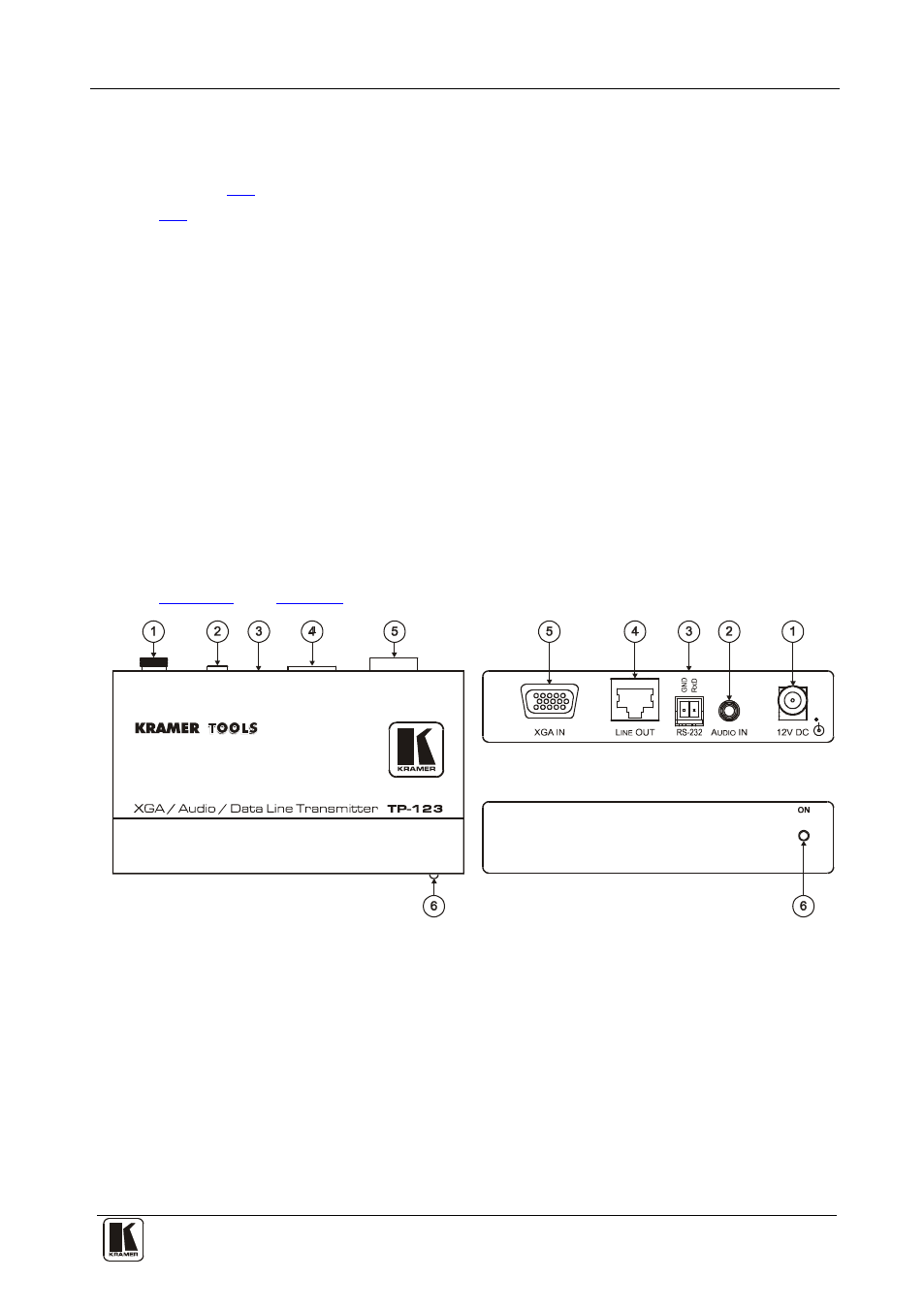

Figure 9: TP-123 XGA/Audio/Data Line Transmitter
