MTRE−ST42−48S−..
Festo MTRE−ST42−48S−.. 0503b English
33
Internal monitoring
The end stage possesses an excess temperature cut−out, as well as monitoring in
the event of short circuit of the motor strings between each other or against GND.
User interfaces

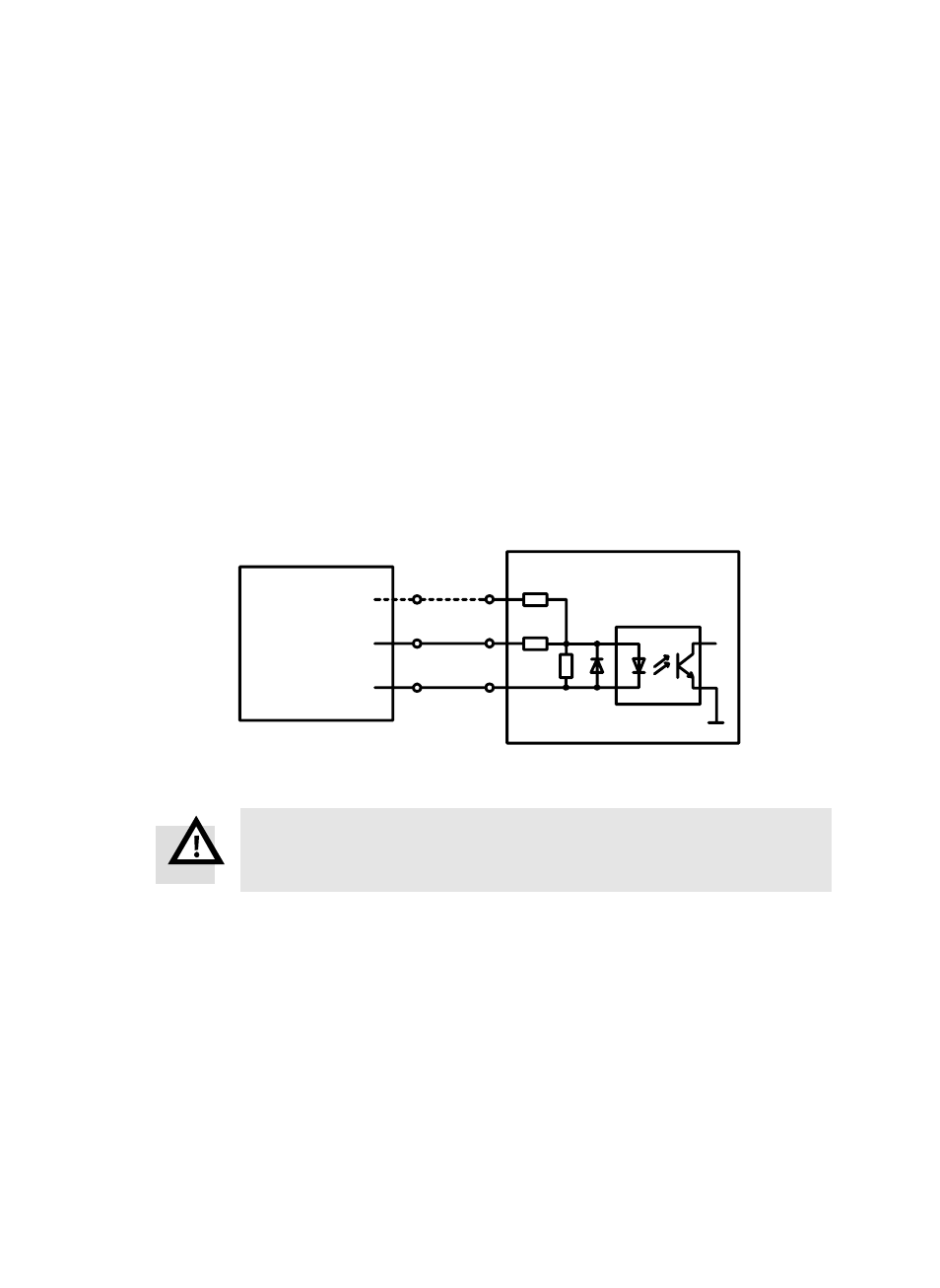

Direction input
The direction of rotation of the motor is determined via the Direction input.
External controller
(e.g. SPC200)
MTRE−ST42− ... Dir+24
Dir+5
Dir−
+24V Level
+5V Level
0V
Opto coupler energized = Direction +
Fig. 5
Warning
+24ĂV or +5ĂV can be used as signal level.
Please note the output levels of your controller.
