DMSP-... / MAS-...

Festo DMSP-... / MAS-... 1012d English

26

h [%]

F[

N]

DMSP-20-...
MAS-20-...

0 bar

1 bar

2 bar

3 bar

4 bar

5 bar

6 bar

F[

N]

h [%]

DMSP-40-...
MAS-40-...

0 bar

1 bar

2 bar

3 bar

4 bar

5 bar

6 bar

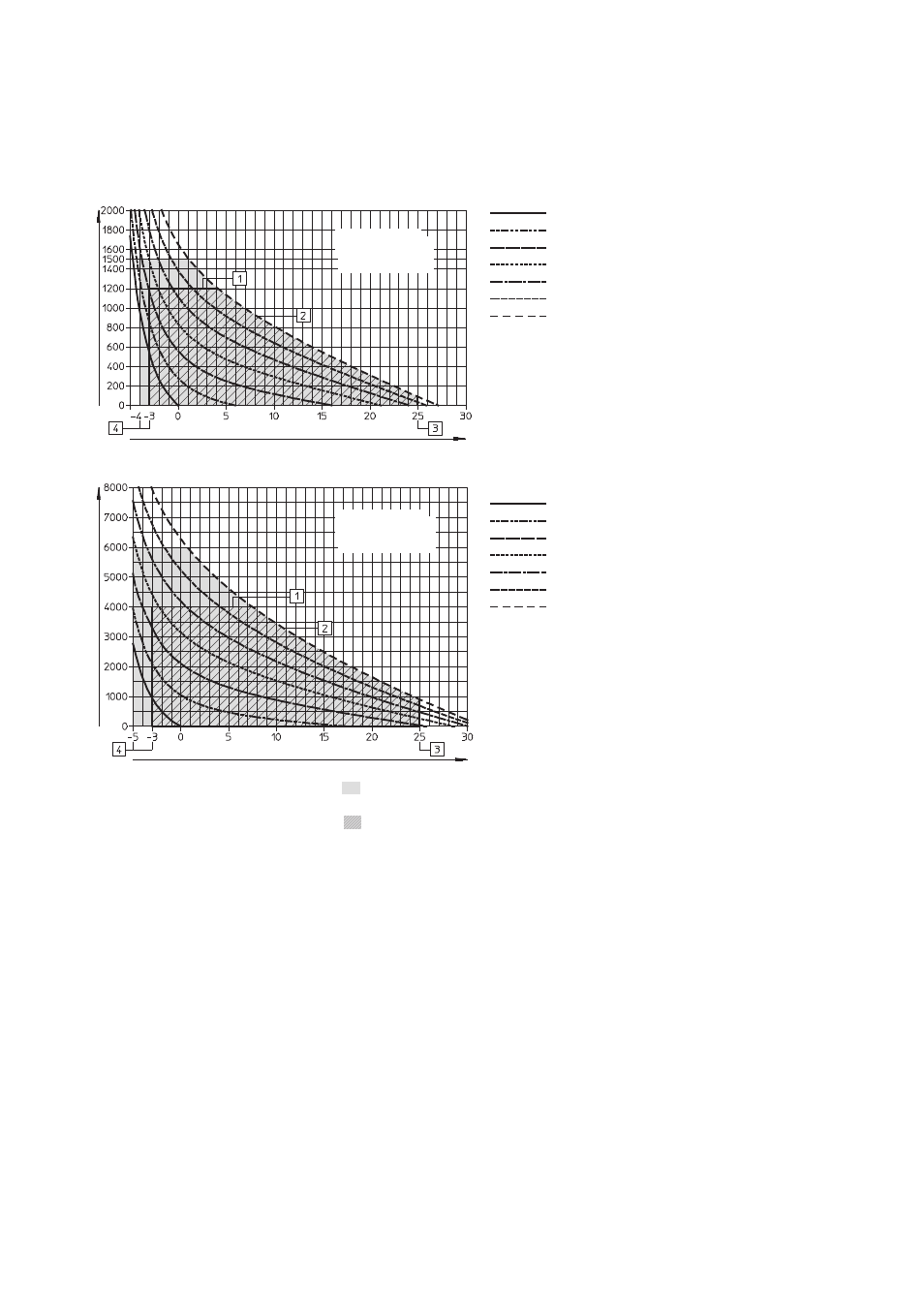

1 Force limitation with MAS-...-K
2 Max. operating pressure
3 Max. deforming
4 Max. projection

Permitted working range for

DMSP-... / MAS-... (see note on page 25)

Permitted working range for MAS-...-K

Fig. 14
