Characteristic curves

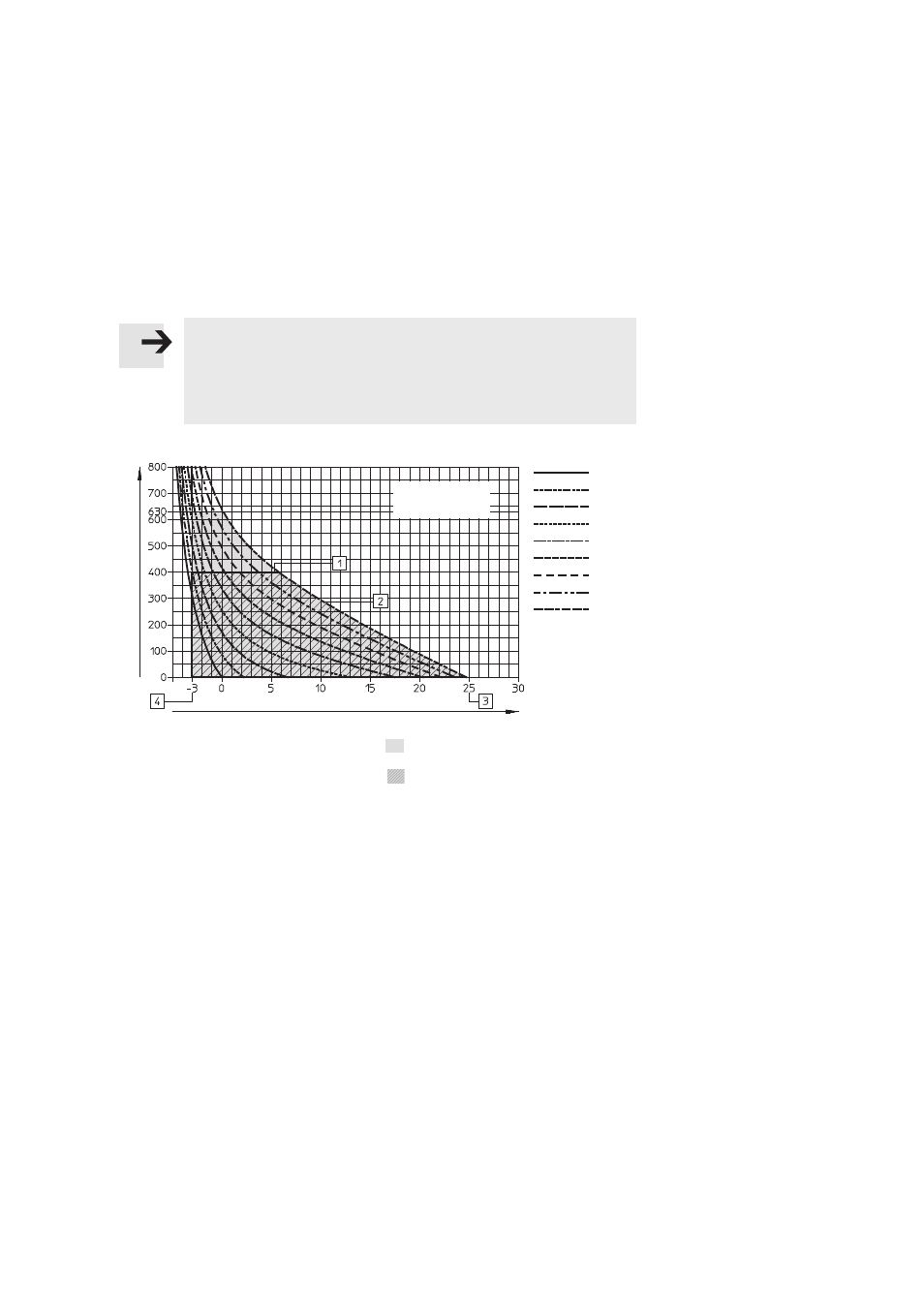

Permitted force F [N] as a factor of contraction h [% of rated length]
(rated length = visible range of unstressed contractible membrane)
Please note
The actual value of the force as a factor of the contraction can vary according to
the product properties. These are e.g. material properties, manufacturing
fluctuations and the rated length. There may therefore be a deviation of the
theoretical force by up to ten per cent. The deviation can be compensated if the
pressure is adapted up to the maximum permitted operating pressure.
h [%]
F[
N]
DMSP-10-...
MAS-10-...
0 bar
1 bar
2 bar
3 bar
4 bar
5 bar
6 bar
7 bar
8 bar
1 Force limitation with MAS-10-...-K
2 Max. operating pressure
3 Max. deforming
4 Max. projection
Permitted work range for DMSP/MAS-10-...
(see note above)
Permitted work range for MAS-10-...-K
Fig. 13
