© MuxLab Inc. Passive CCTV Hub Plus Installation Guide
Page 9
3.5. Installation Procedure
The Passive CCTV Hub Plus (500134) features BNC connectors on the video
portion of the device, thereby allowing it to be connected directly to the DVR
via coaxial cable. In order to install the product in this configuration, please
follow the steps below:
1. Install the Passive CCTV Hub Plus in its final location. Please verify that
the distance between the rack and cameras are within MuxLab
specifications.
2. Connect a MuxLab passive CCTV Balun (MuxLab p/n 500000, 500009,
500022, 500023, 500024 or 500029) to each CCTV camera video output.
Please refer to the appropriate CCTV balun installation guide for details.
3. Connect one Cat5 cable from each camera to one of the modular RJ45
ports on the front of the Passive CCTV Hub Plus (fig 5). Please ensure that
EIA 568 wiring and straight-through polarity is respected between the
CCTV balun and the rack. The use of other Cat5 connection hardware
such as patch panels and 110 blocks may be used.

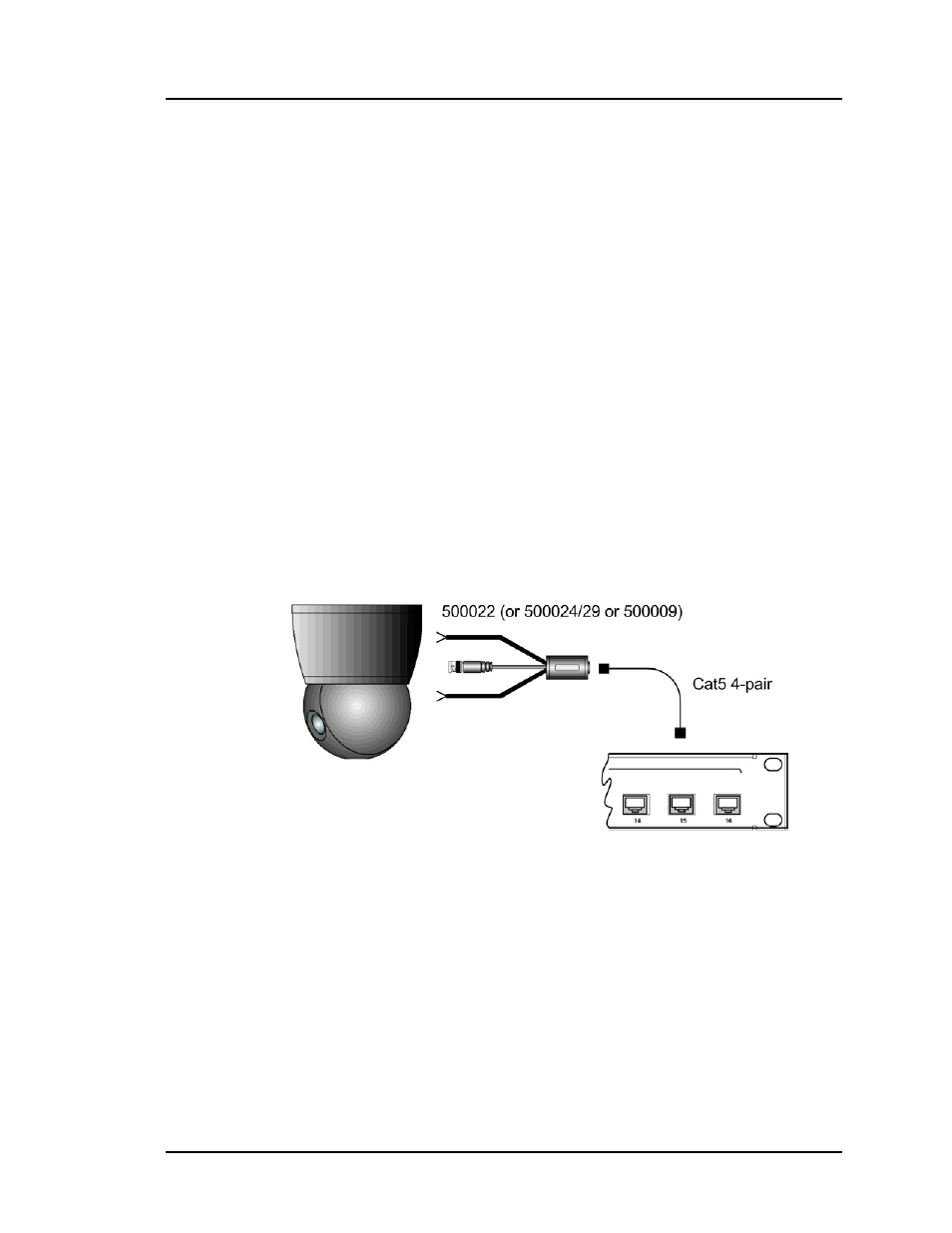

Figure 4: Camera connection
