Physical installation – Muxlab Passive CCTV Hub Plus User Manual
Page 8
© MuxLab Inc.
Passive CCTV Hub Plus Installation Guide
Page 8
3.4.
Physical Installation
The Passive CCTV Hub Plus is a 1U, 19” rackmount unit. The factory default
switch settings of each port is Pass-Thru Mode (500022).
1. Select the final destination for the product in the relay rack and install the
unit using standard rackmount screws.

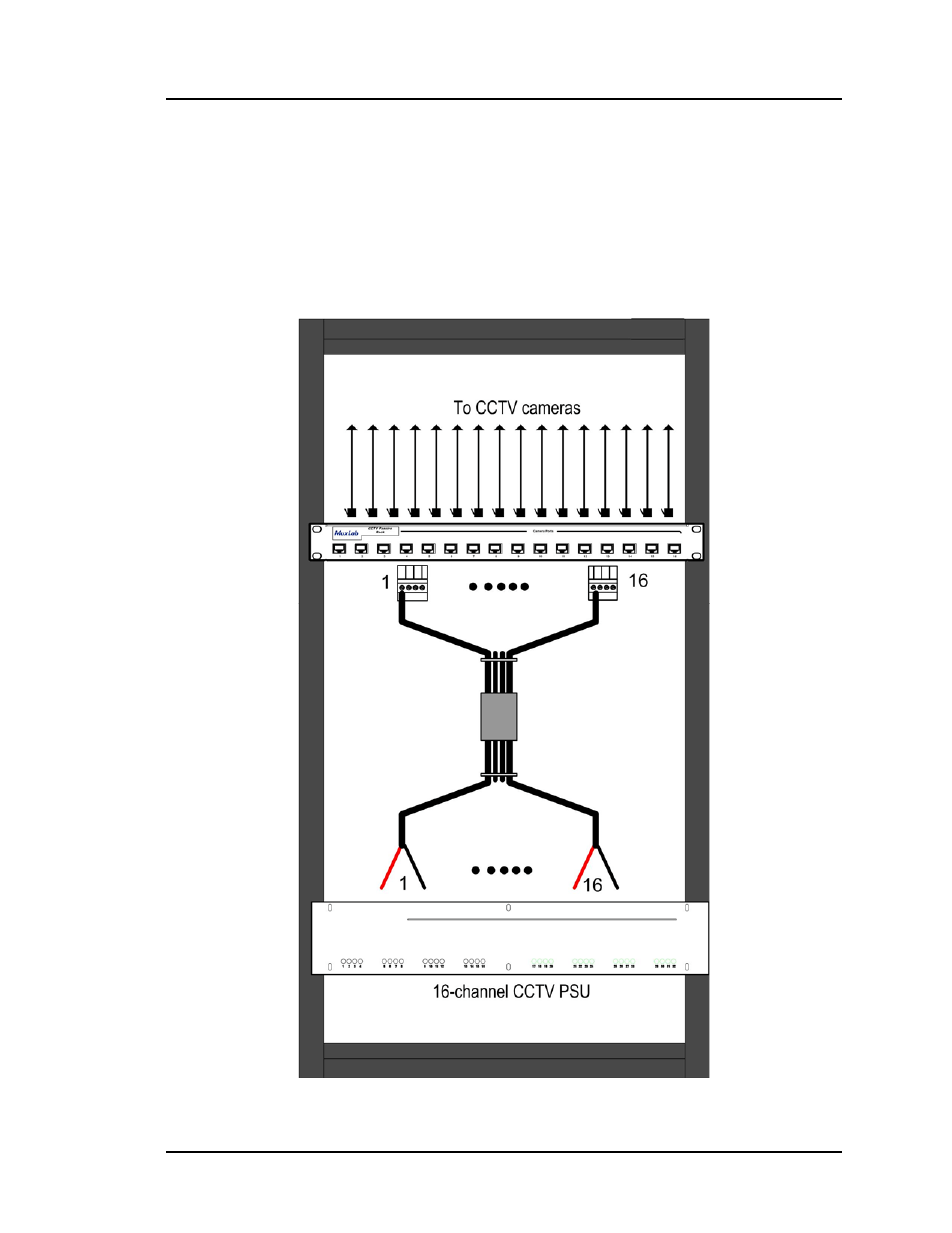

Figure 3: Rack-mount installation
