© MuxLab Inc. Passive CCTV Hub Plus Installation Guide
Page 11
Output Connections:
Video:

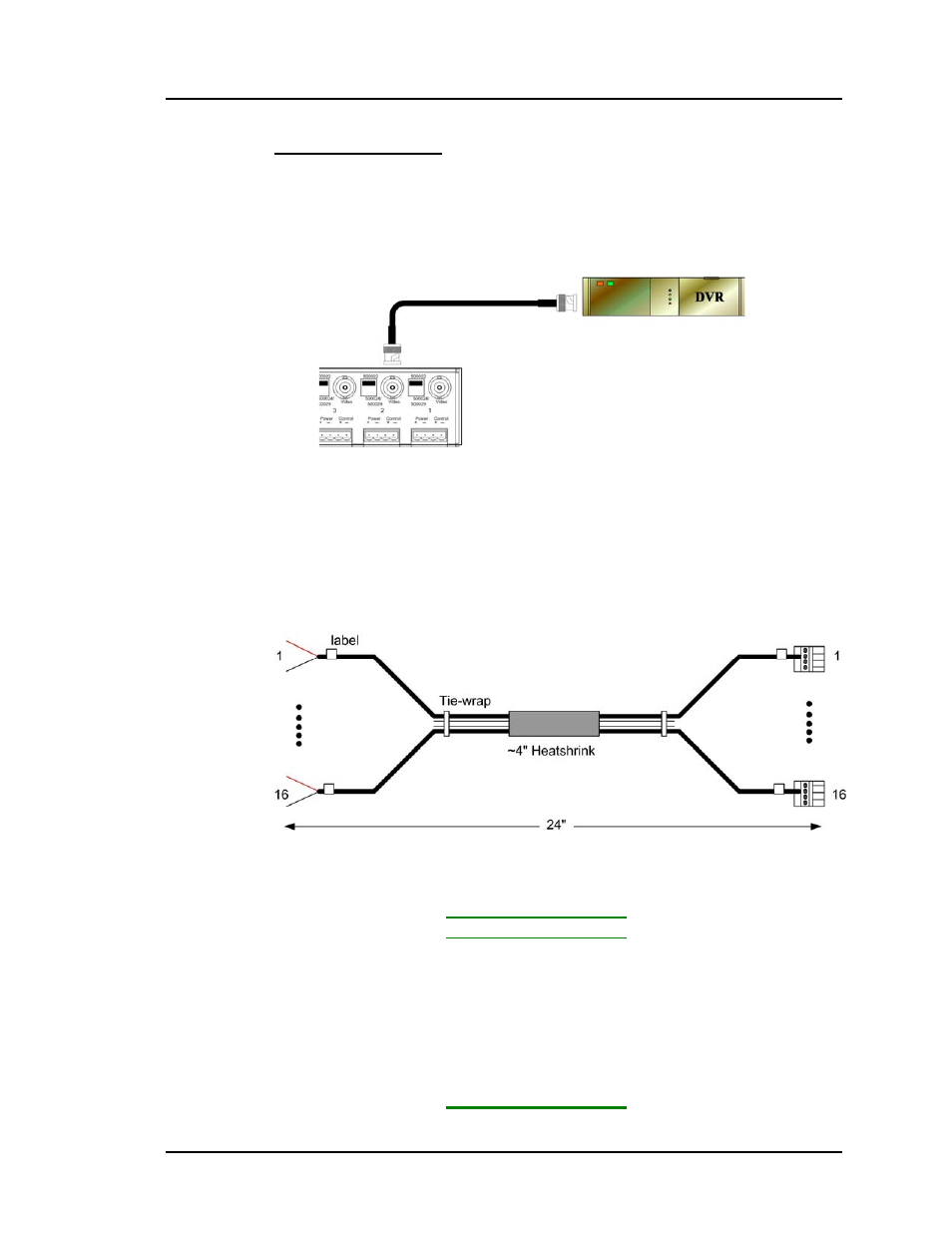

7. Connect one coax cable between each video output port on the rack and the
DVR video input (fig 8).
Figure 7: Video connection
Remote Power:
8. The Passive CCTV Hub (500134) includes a 16-channel 18AWG/2-wire
power cable assembly to facilitate connection between the hub and a 16-
channel CCTV power supply.
9. The lengths of wire leads are different for each port in order to provide
neater cable termination on the 500134. Therefore the overall length of
each 2-wire lead is as follows:
Ports Total length
8 & 9 22.6 in.
7 & 10 22.8 in.
6 & 11 23.1 in.
5 & 12 23.6 in.
4 & 13 24.1 in.
3 & 14 24.7 in.
2 & 15 25.4 in.
1 & 16 26.1 in.
Average 24.1 in.
