Muxlab LongReach II Active CCTV Receiver Hub User Manual
Page 11

© MuxLab.
LongReach II Active CCTV Receiver Hub Installation Guide
Page 11
4. The LongReach II Hub must be powered by a 5V
DC, 13 W floating (non-grounded Ring of the PSU
DC plug) power supply (supplied with the product).
5. The LongReach II Hub is calibrated to work with
CCTV sources that conform to RS-343 (RS-170).
3.2.
Physical Installation (500127)
The 16-channel LongReach II Hub (500127) has three
mounting options; desktop, 19” rackmount or
wallmount. The product comes with two (2) mounting
brackets and four (4) rubber stand-offs to allow it to be
configured for either option. The product is factory set
for rackmounting.
1. If the product is to be rackmounted in a relay rack
or wallmounted, select the final destination for the
product and install the unit using standard
rackmount screws.

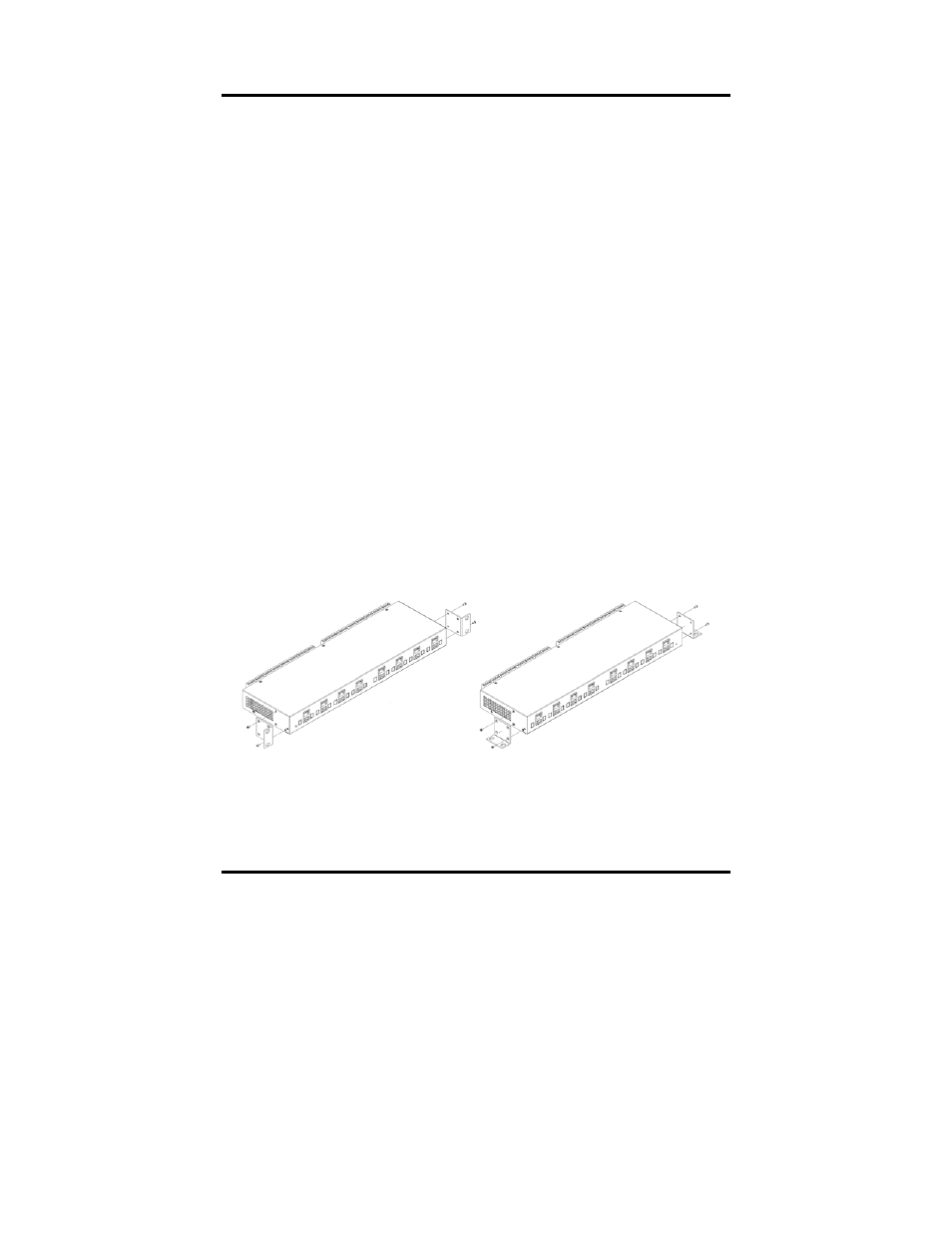

Mounting brackets
