© MuxLab Inc. Active VGA Balun II Family Installation Guide
Page 13
11. DIP switch positions 1 to 3 adjust the equalization to
compensate for high frequency signal loss due to the
Cat5E/6 cable.
12. The DIP switch positions 4 to 6 adjust the luminance
level to compensate for low frequency signal loss
due to the Cat5E/6 cable.
13. The following diagram shows the final
configuration.

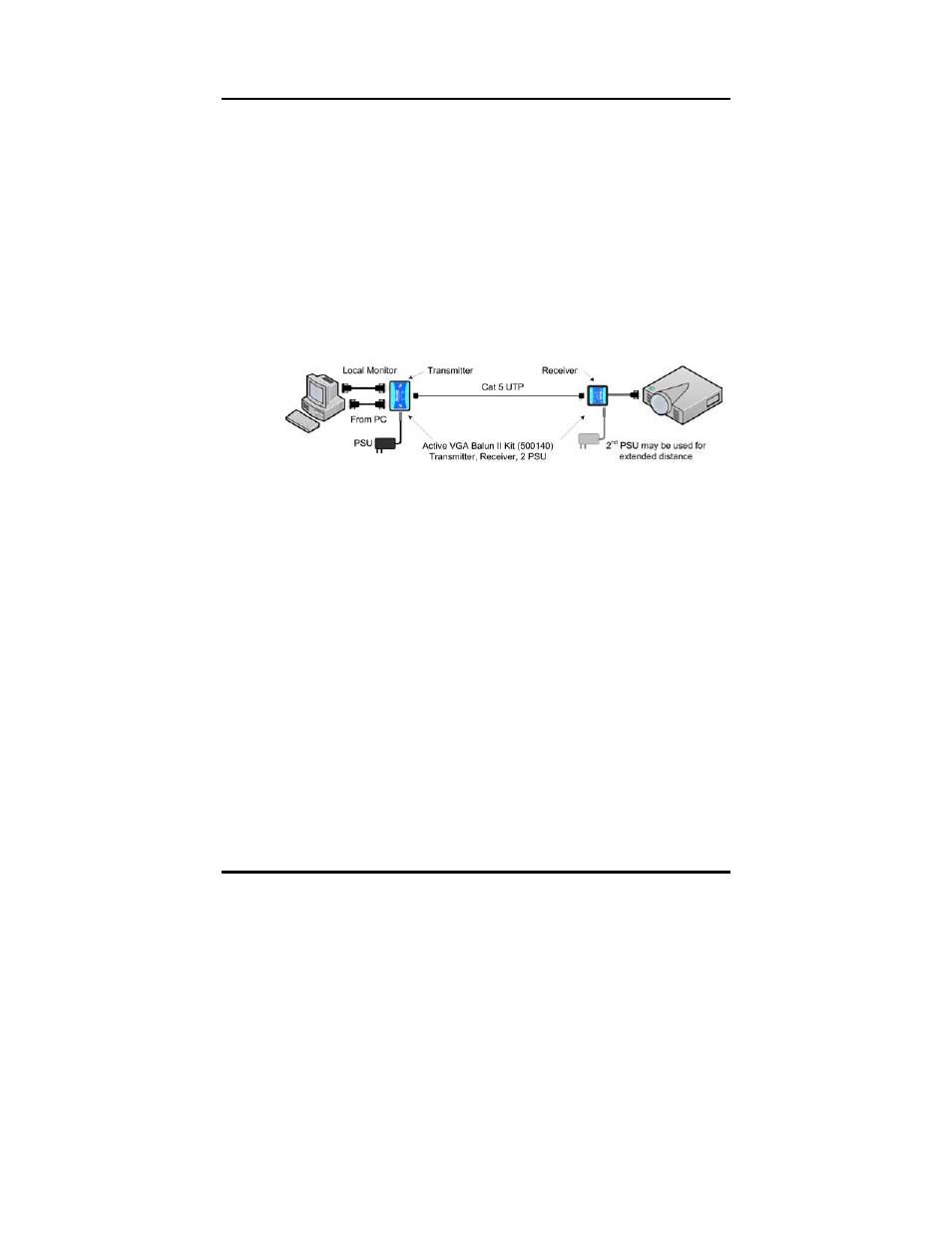

Figure 4: Typical Configuration – Remote Power
14. Upon boot-up, the Active VGA Balun II reads the
DDC information from the Local Monitor (if
connected) and sets the monitor size and resolution
according to the Local Monitor.
15. If the Local Monitor is not connected, the Active
VGA Balun II reads the DDC information from the
remote screen and sets the size and resolution
according to the remote screen.
